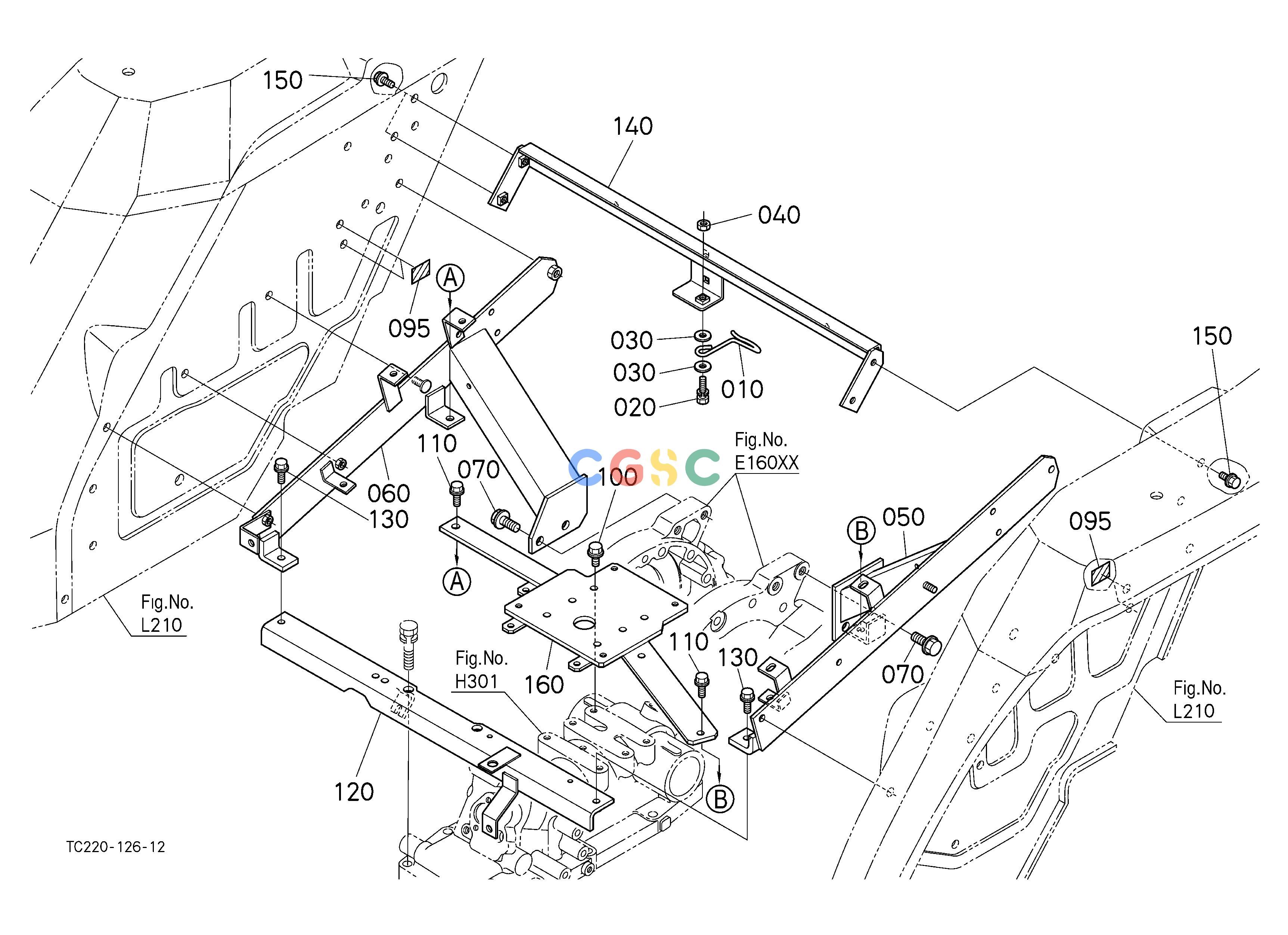

久保田零件查询L21303 FENDER SUPPORT [HST TYPE] [OLD TYPE] ## S.No.<=78400 S.No.;<=78400 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
726 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC22029420
|
[1] |
HOLDER
|
0.0880(lbs); 0.040
|
| 020. |
0112350830
|
[1] |
BOLT,SEMS
|
0.0330(lbs); 0.015
|
| 030. |
0401550080
|
[2] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 040. |
0211250080
|
[1] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 050. |
TC22029210
|
[1] |
SUPPORT,FENDER LH
|
6.6000(lbs); 3.000
|
| 050. |
TC22029213
|
[1] |
SUPPORT,FENDER LH
|
6.6000(lbs); 3.000
|
| 060. |
TC22029221
|
[1] |
SUPPORT,FENDER RH
|
0.0000(lbs); 0.000
|
| 060. |
TC22029222
|
[1] |
SUPPORT,FENDER RH
|
6.6000(lbs); 3.000
|
| 060. |
TC22029223
|
[1] |
SUPPORT,FENDER RH
|
6.6000(lbs); 3.000
|
| 070. |
0177451220
|
[4] |
BOLT,FLANGE
|
0.0660(lbs); 0.030
|
| 095. |
3455049700
|
[4] |
LABEL
|
0.0022(lbs); 0.001
|
| 100. |
0177451020
|
[4] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 110. |
0175450825
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 120. |
TC22057722
|
[1] |
STAY,FENDER
|
4.6200(lbs); 2.100
|
| 130. |
0175450825
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 140. |
TC22029440
|
[1] |
SUPPORT,FENDER
|
2.9700(lbs); 1.350
|
| 150. |
0175450816
|
[4] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 160. |
TC22029234
|
[1] |
SUPPORT,SEAT
|
5.0600(lbs); 2.300
|
