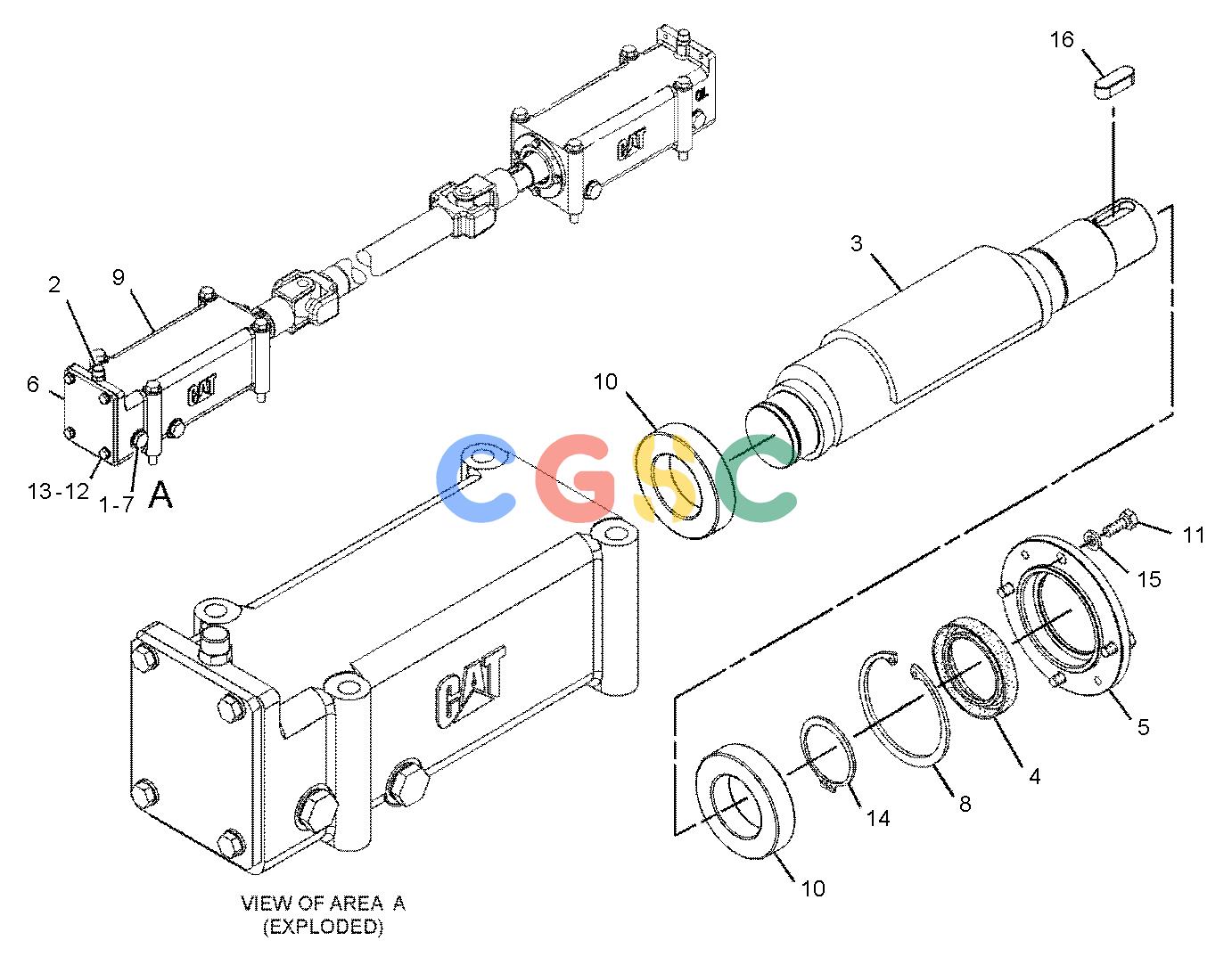

卡特零件查询（AP-655D） 263-5150: HOUSING GP-ECCENTRIC WEIGHT
广数供应链运营团队, 17 02月, 2025，浏览：
136 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0406 | [4] | SEAL-BONDED | |
| 2. | 242-2249 | [1] | BREATHER(ECCENTRIC WEIGHT HOUSING) | |
| 3. | 242-2707 | [1] | SHAFT AS | |
| 4. | 242-2812 | [1] | SEAL-SHAFT | |
| 5. | 242-2882 | [1] | COVER | |
| 6. | 242-2883 | [1] | COVER | |
| 7. | 260-9146 | [4] | PLUG | |
| 8. | 095-0941 | [1] | RING-RETAINING | |
| 9. | 261-7625 | [1] | HOUSING | |
| 10. | 4L-9825 | [2] | BALL BEARING | |
| 11. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 12. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 13. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 8T-4240 | [2] | RING-RETAINING | |
| 15. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 16. | 258-9054 | [1] | KEY(RECTANGULAR SECTION)(RECTANGULAR SECTION) | |
| | M | | METRIC PART |
