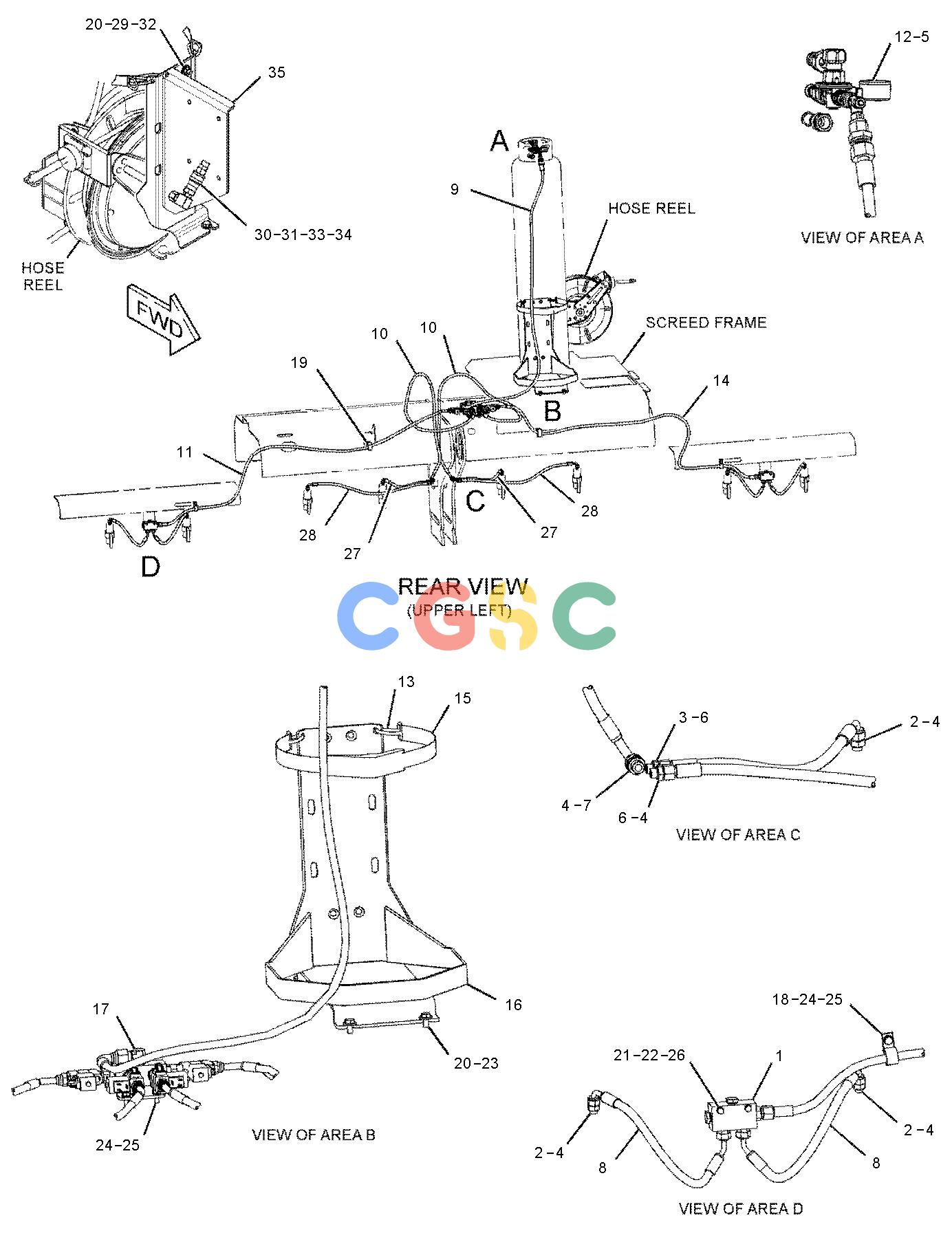

卡特零件查询（AP-655D） 286-3631: LINES GP-BURNER
广数供应链运营团队, 17 02月, 2025，浏览：
566 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 268-6140Y | [2] | FITTING GP-FUEL LINES | |
| 2. | 268-6156 | [8] | FITTING | |
| 3. | 268-6147 | [4] | WASHER(13X18X1.5-MM THK) | |
| 4. | 268-6148 | [10] | WASHER(17X23X1.5-MM THK) | |
| 5. | 268-6152 | [1] | FITTING | |
| 6. | 268-6154 | [4] | FITTING | |
| 7. | 268-6155 | [2] | FITTING | |
| 8. | 269-5123 | [4] | HOSE AS | |
| 9. | 269-5124 | [1] | HOSE AS | |
| 10. | 295-2088 | [2] | HOSE AS | |
| 11. | 269-5129 | [1] | HOSE AS | |
| 12. | 446-1228 | [1] | VALVE GP-PRESSURE CONTROL(BURNER) | |
| | 446-1226 | [1] | VALVE-SHUTOFF(GAS) | |
| | | [1] | REGULATOR-PRESSURE(GAS) |
| 13. | 273-4712 | [2] | LINK | |
| 14. | 278-0580 | [1] | HOSE AS | |
| 15. | 279-8037 | [1] | STRAP AS | |
| 16. | 295-2105 | [1] | SUPPORT AS | |
| 17. | 305-5869Y | [1] | MANIFOLD GP-FUEL | |
| 18. | 6D-4244 | [2] | CLIP | |
| 19. | 7D-7233 | [2] | CLIP | |
| 20. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-0275M | [4] | BOLT(M6X1X50-MM) | |
| 22. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 23. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 24. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 25. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 26. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 27. | 269-5126 | [2] | HOSE AS | |
| 28. | 269-5127 | [2] | HOSE AS | |
| 29. | 3E-4310M | [4] | SCREW-HEX HEAD(M10X1.5X30-MM) | |
| 30. | 5R-6867 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 31. | 5R-6868 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| 32. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 33. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 34. | 150-4050 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 8T-0788 | [1] | ELBOW | |
| 35. | 328-9611 | [1] | SUPPORT-REEL | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
