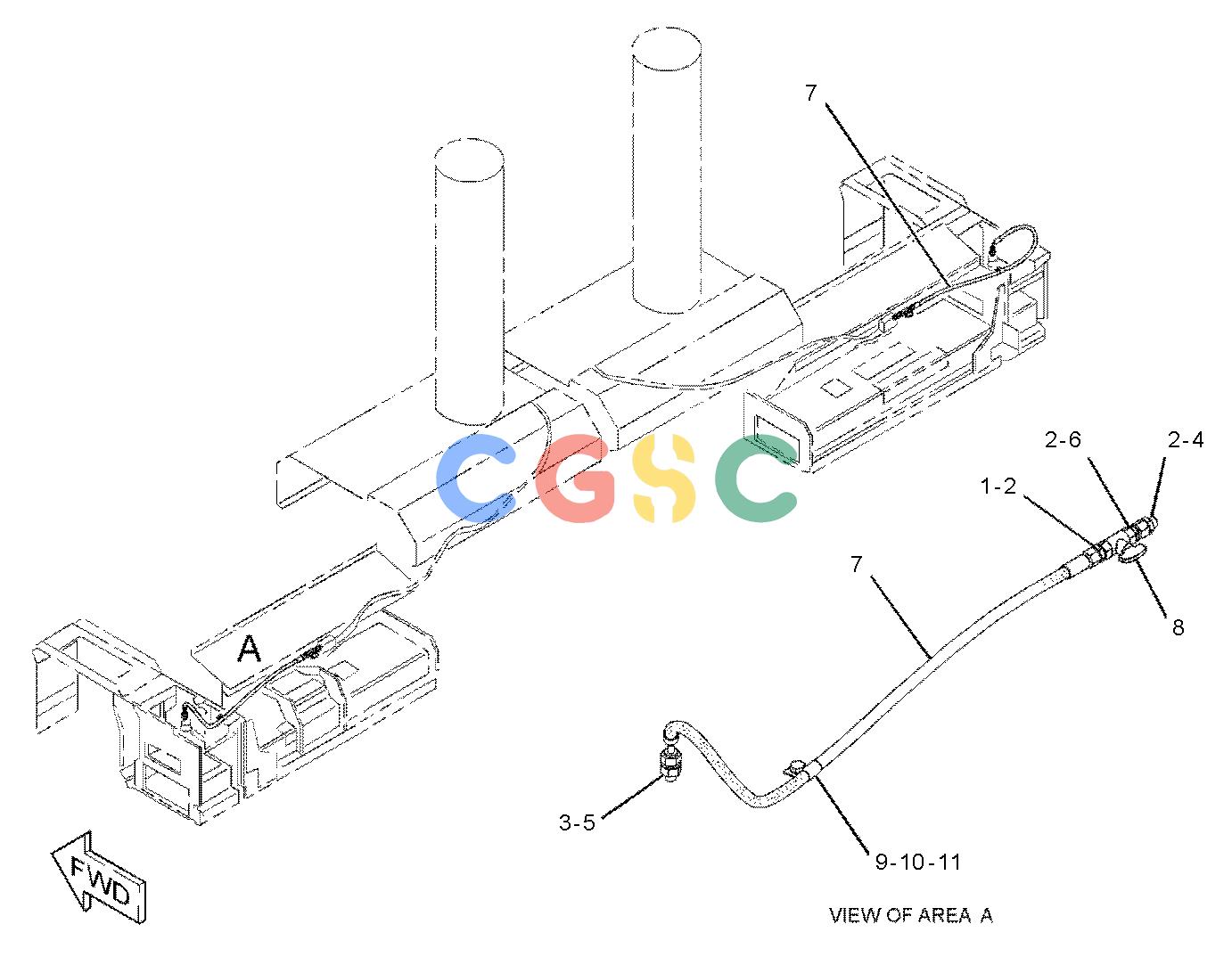

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 268-6145 | [2] | FITTING | |
| (EACH INCLUDES) | ||||
| 268-6154 | [1] | FITTING | ||
| 2. | 268-6147 | [6] | WASHER(13X18X1.5-MM THK) | |
| 3. | 268-6148 | [2] | WASHER(17X23X1.5-MM THK) | |
| 4. | 268-6154 | [2] | FITTING | |
| 5. | 268-6156 | [2] | FITTING | |
| 6. | 271-5314 | [2] | FITTING | |
| 7. | 272-0793 | [2] | HOSE AS | |
| 8. | 282-8346 | [2] | VALVE AS-SHUTOFF(FUEL, SCREED) | |
| 9. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 10. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 9F-2947 | [2] | CLIP | |
| M | METRIC PART | |||
