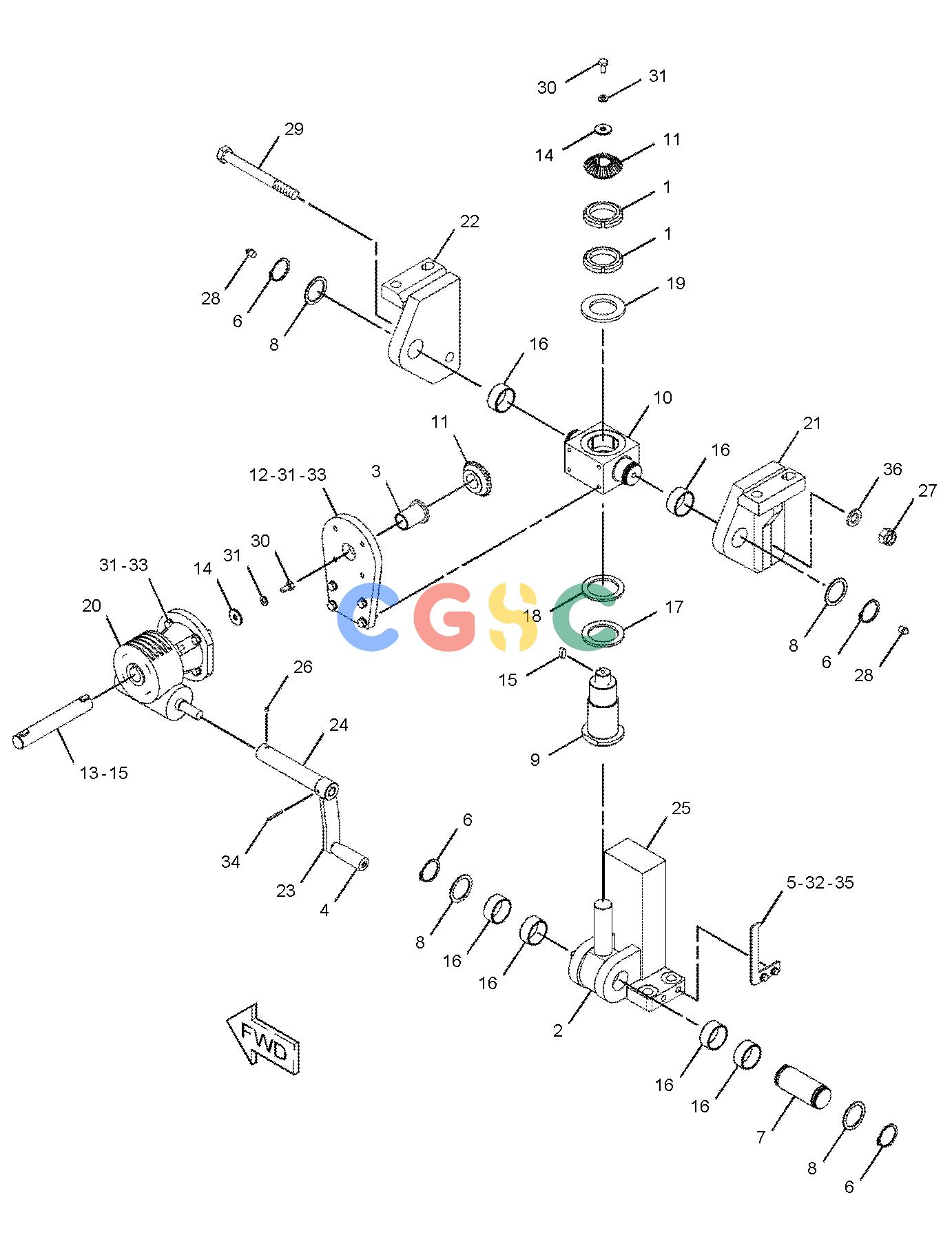

卡特零件查询（AP-655D） 320-3019: ADJUSTER GP-HEIGHT
广数供应链运营团队, 17 02月, 2025，浏览：
263 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 214-9121 | [2] | LOCKNUT | |
| 2. | 242-2767 | [1] | ROD AS | |
| 3. | 242-2803 | [1] | BUSHING | |
| 4. | 242-2804 | [1] | HANDLE | |
| 5. | 242-2857 | [1] | PLATE-INDICATOR | |
| 6. | 242-2876 | [4] | RING-RETAINING | |
| 7. | 242-2924 | [1] | PIN | |
| 8. | 242-2925 | [4] | WASHER(38.2X50X2-MM THK) | |
| 9. | 242-2926 | [1] | SHAFT | |
| 10. | 242-2927 | [1] | SUPPORT | |
| 11. | 242-2928 | [2] | PINION | |
| 12. | 242-2929 | [1] | SUPPORT | |
| 13. | 242-2930 | [1] | SHAFT | |
| 14. | 242-3072 | [2] | WASHER(8.5X25X3-MM THK) | |
| 15. | 243-2636 | [3] | KEY-RECTANGULAR(SQUARE) | |
| 16. | 244-2291 | [6] | RACE-NEEDLE BEARING | |
| 17. | 244-2292 | [1] | RACE-THRUST | |
| 18. | 244-2293 | [1] | RACE-THRUST | |
| 19. | 244-2294 | [1] | RACE-THRUST | |
| 20. | 261-1010 | [1] | ACTUATOR GP(HEIGHT CONTROL) | |
| 21. | 261-9511 | [1] | GUIDE AS(TOP, RH) | |
| 22. | 261-9513 | [1] | GUIDE AS(TOP, RH) | |
| 23. | 273-2038 | [1] | LEVER AS | |
| 24. | 276-5624 | [1] | SHAFT | |
| 25. | 320-3020 | [1] | GUIDE AS(RH) | |
| 26. | 095-1260M | [1] | SETSCREW-SOCKET(M6X1X6-MM) | |
| 27. | 176-5311M | [1] | LOCKNUT(M16X2-THD) | |
| 28. | 5W-2817 | [2] | FITTING-GREASE | |
| 29. | 7X-2559M | [1] | BOLT(M16X2X160-MM) | |
| 30. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 31. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4970M | [2] | BOLT(M6X1X14-MM) | |
| 33. | 8T-7547M | [8] | BOLT(M8X1.25X30-MM) | |
| 34. | 8U-6990 | [1] | PIN-ROLL | |
| 35. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 36. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
