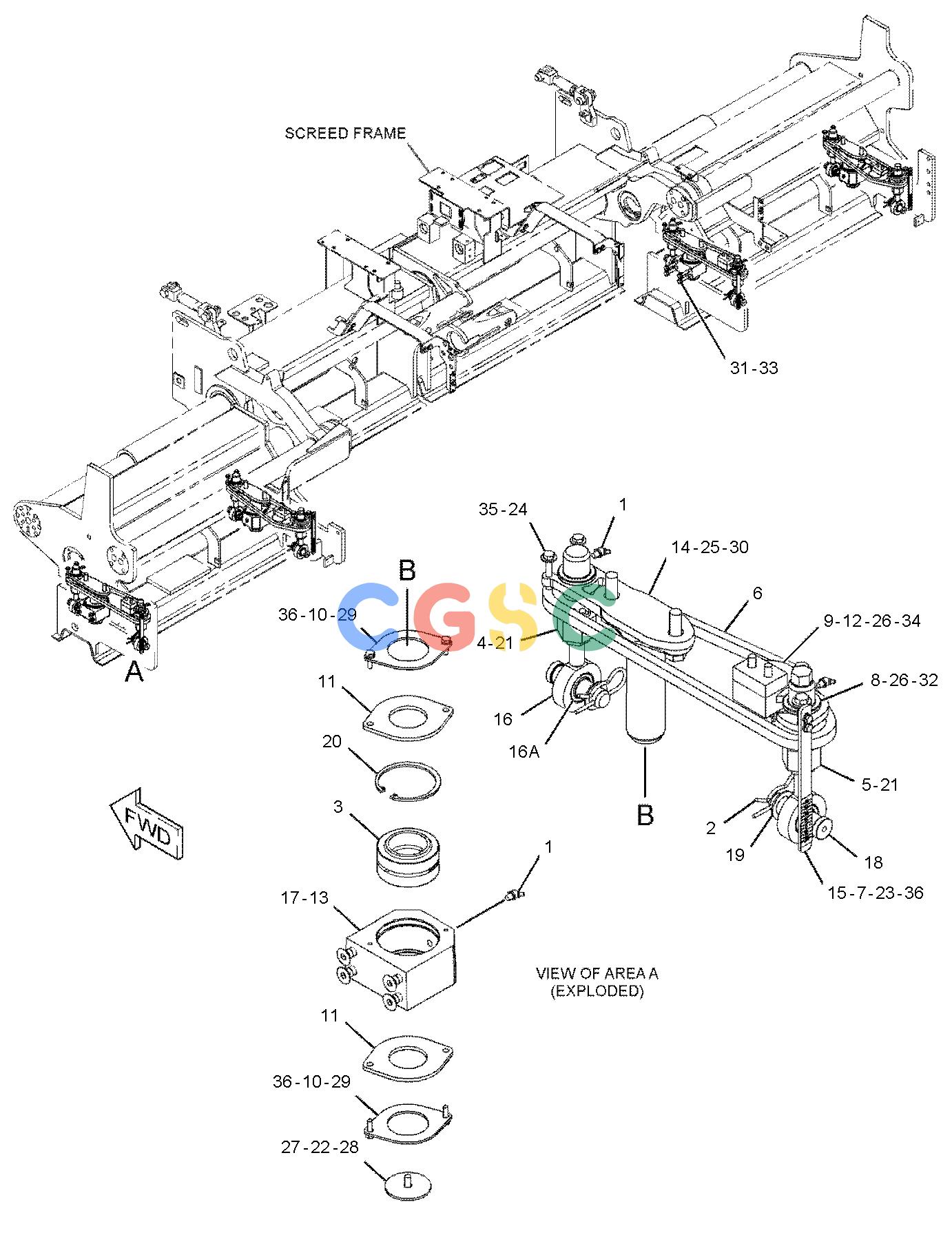

卡特零件查询（AP-655D） 350-6007: ADJUSTER GP-HEIGHT
广数供应链运营团队, 17 02月, 2025，浏览：
874 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [12] | ELBOW(BOOM CYLINDER, HEAD END) | |
| 2. | 5P-8837 | [8] | LOCK PIN | |
| 3. | 9M-1328 | [4] | BEARING-SELF-ALIGNING | |
| 4. | 350-5934 | [4] | SHAFT AS-FRONT | |
| 5. | 350-6019 | [4] | SHAFT AS-REAR | |
| 6. | 350-6026 | [4] | CHAIN GP | |
| | | | (EACH INCLUDES) |
| | 102-2687 | [1] | LINK-CONNECTING | |
| | 195-9533 | [1] | LINK-OFFSET | |
| 7. | 355-2982 | [4] | FILM-INFORMATION(HEIGHT SCALE) | |
| 8. | 361-3455 | [4] | PLATE | |
| 9. | 362-8410 | [4] | BLOCK | |
| 10. | 364-6874 | [8] | PLATE | |
| 11. | 364-6875 | [8] | SEAL-RUBBER | |
| 12. | 364-8564 | [4] | PLATE | |
| 13. | 365-1353 | [4] | BLOCK-SUPPORT | |
| 14. | 366-0239 | [4] | PIN | |
| 15. | 366-1738 | [4] | PLATE | |
| 16. | 390-7798 | [8] | BALL JOINT AS | |
| | | | (EACH INCLUDES) |
| 16A. | 005-8639 | [1] | BEARING-ALIGNING | |
| | 359-3138 | [1] | ROD AS | |
| 17. | 145-1893M | [8] | SCREW(M12X1.75X40-MM) | |
| 18. | 398-9707 | [8] | PIN | |
| 19. | 190-4375 | [8] | WASHER(26X40X2-MM THK) | |
| 20. | 1K-6985 | [4] | RING-RETAINING | |
| 21. | 208-7492M | [8] | NUT(M20X2.5-THD) | |
| 22. | 2G-8767 | [4] | WASHER(10.5X60X3-MM THK) | |
| 23. | 5C-9553M | [8] | BOLT(M6X1X16-MM) | |
| 24. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 25. | 7X-0513 | [8] | WASHER-HARD(17X30X5-MM THK) | |
| 26. | 7X-7729 | [16] | WASHER(11X25X3-MM THK) | |
| 27. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 28. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 29. | 8T-4138M | [16] | BOLT(M6X1X20-MM) | |
| 30. | 8T-4140M | [8] | BOLT(M16X2X60-MM) | |
| 31. | 8T-6868M | [8] | BOLT(M12X1.75X80-MM) | |
| 32. | 8T-4182M | [8] | BOLT(M10X1.5X45-MM) | |
| 33. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 8T-5005M | [8] | BOLT(M10X1.5X70-MM) | |
| 35. | 8T-6912M | [8] | BOLT(M8X1.25X50-MM) | |
| 36. | 9X-8256 | [24] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
