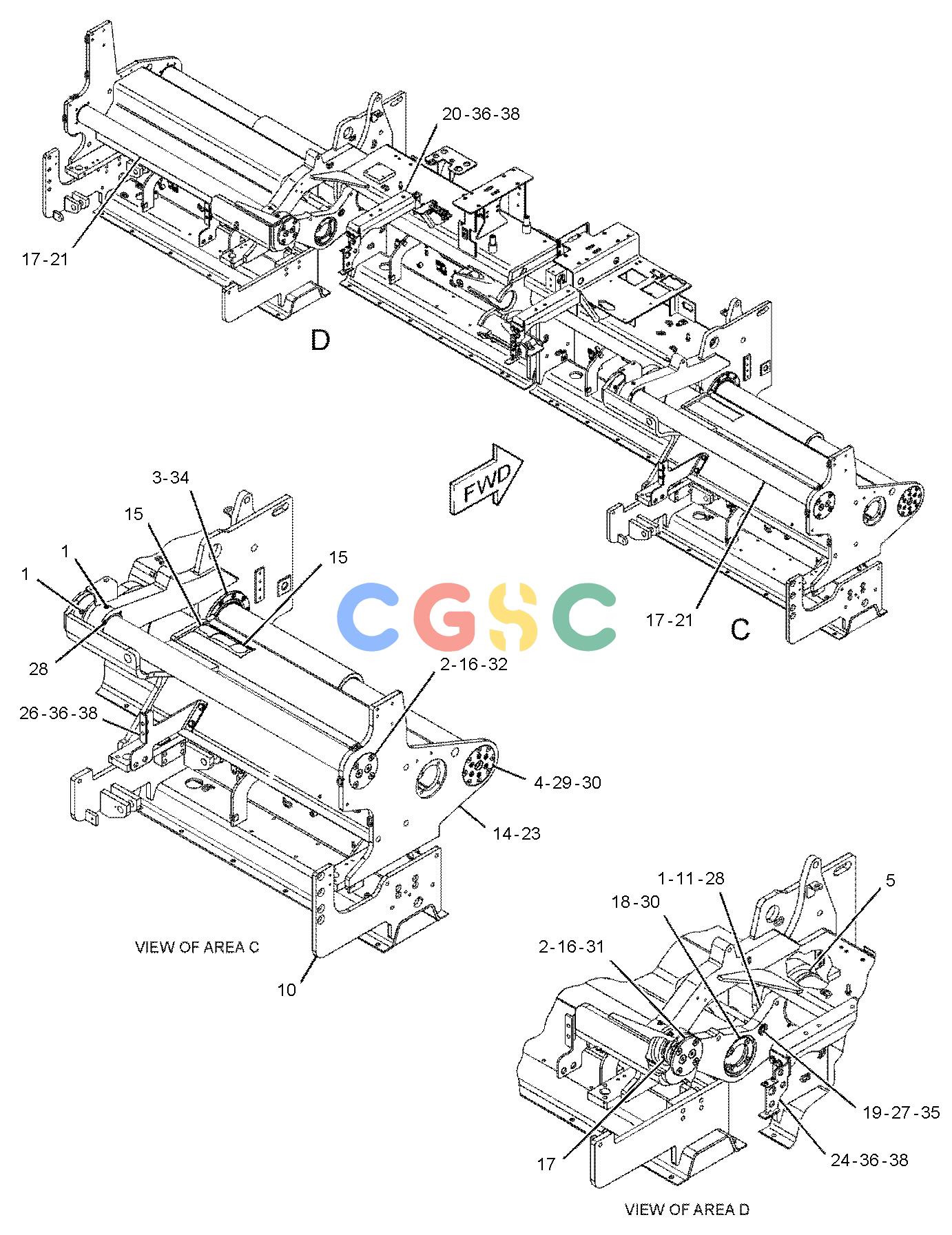

卡特零件查询（AP-655D） 350-7789: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
992 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [6] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 126-1501M | [8] | SCREW-FLAT HEAD(M16X2X45-MM) | |
| 3. | 251-0767Y | [2] | TUBE GP-EXTENSION(TELESCOPING) | |
| 4. | 257-5275 | [2] | FLANGE | |
| 5. | 315-3697 | [2] | BUSHING | |
| 6. | 382-6911 | [1] | FRAME AS(LH) | |
| 7. | 382-6912 | [1] | FRAME AS(RH) | |
| 8. | 382-6913 | [1] | FRAME AS(LH) | |
| 9. | 350-7865 | [2] | PLATE-RETAINER | |
| 10. | 382-6914 | [1] | FRAME AS(RH) | |
| 11. | 350-7870 | [1] | TUBE AS | |
| 12. | 350-7875 | [1] | TUBE AS | |
| 13. | 382-6915 | [1] | FRAME AS(LH) | |
| 14. | 382-6916 | [1] | FRAME AS(RH) | |
| 15. | 382-5064 | [4] | BUSHING | |
| 16. | 350-7913 | [4] | FLANGE | |
| 17. | 350-7918 | [4] | BUSHING | |
| 18. | 350-7919 | [2] | SEAL | |
| 19. | 350-7940 | [2] | ROD-THREADED | |
| 20. | 350-7942 | [1] | SUPPORT AS | |
| 21. | 350-7944 | [2] | TUBE AS | |
| 22. | 350-7951 | [1] | SUPPORT AS | |
| 23. | 365-8800 | [1] | SUPPORT AS(RH) | |
| 24. | 365-8801 | [1] | SUPPORT AS(LH) | |
| 25. | 365-8802 | [1] | BRACKET AS | |
| 26. | 365-8803 | [1] | BRACKET AS | |
| 27. | 098-5747M | [6] | NUT(M16X2-THD) | |
| 28. | 105-3482M | [24] | BOLT-SOCKET HEAD(M8X1.25X16-MM) | |
| 29. | 105-3484M | [12] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 30. | 127-2909M | [20] | SCREW-FLAT HEAD(M10X1.5X20-MM) | |
| 31. | 144-2686M | [8] | SCREW-FLAT HEAD(M12X1.75X25-MM) | |
| 32. | 270-9438 | [8] | SCREW-FLAT HEAD | |
| 33. | 5C-9553M | [6] | BOLT(M6X1X16-MM) | |
| 34. | 5W-2177M | [20] | BOLT-SOCKET HEAD(M12X1.75X20-MM) | |
| 35. | 7X-0515 | [2] | WASHER-HARD(17X35X5-MM THK) | |
| 36. | 7X-7729 | [12] | WASHER(11X25X3-MM THK) | |
| 38. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 39. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 40. | 382-3076 | [1] | FLANGE | |
| 41. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
