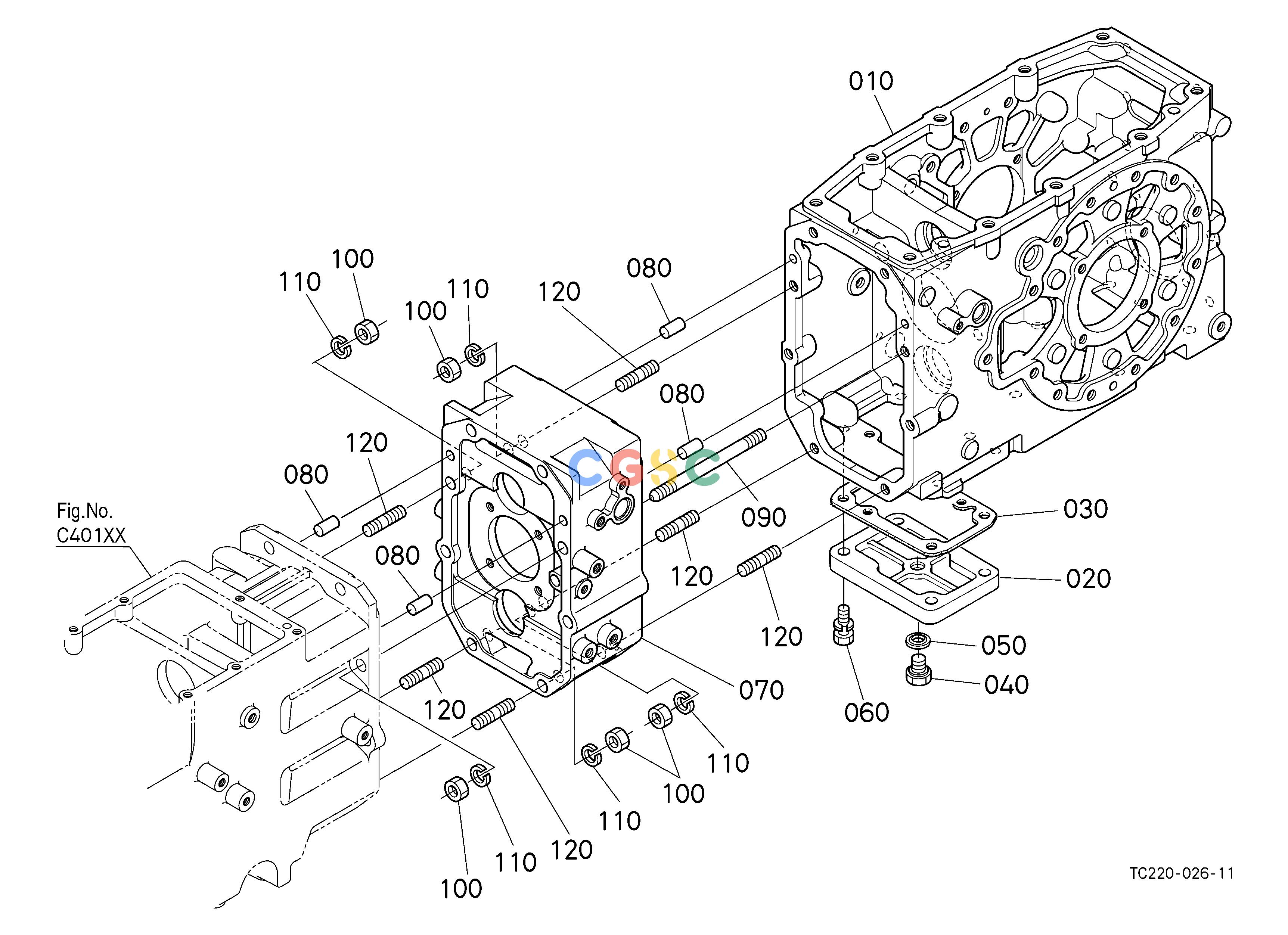

久保田零件查询C42002 TRANSMISSION CASE ## NOTE:ORDER BY ALL PARTS OF Fig.No.T11402. CLUTCH/TRANSMISSIONEPC Kubota online_久保田Kubota_工程机械

久保田零件查询C42002 TRANSMISSION CASE ## NOTE:ORDER BY ALL PARTS OF Fig.No.T11402. CLUTCH/TRANSMISSIONEPC Kubota online

广数供应链运营团队, 17 02月, 2025，浏览： 188 次

Pos.	Part No	Qty	Parts name	Comments
010.	TC22021111	[1]	CASE,TRANSMISSION	SEE NOTE; <=10051 0.0000(lbs); 0.000
010.	TC22021114	[1]	CASE,TRANSMISSION	SEE NOTE; >=10052 61.8200(lbs); 28.100
010.	TC22021117	[1]	CASE,TRANSMISSION	; >=10547 61.8200(lbs); 28.100
010.	TC22021118	[1]	CASE,TRANSMISSION	; >=10675 61.8200(lbs); 28.100
020.	3715021272	[1]	COVER	0.7260(lbs); 0.330
030.	3242521280	[1]	GASKET	0.0220(lbs); 0.010
040.	0633135012	[1]	PLUG	0.0528(lbs); 0.024
050.	0471701200	[1]	WASHER,SEAL	0.0044(lbs); 0.002
060.	0113351235	[4]	BOLT,SEMS	0.0946(lbs); 0.043
070.	TC22021151	[1]	CASE,MID	; <=10051 0.0000(lbs); 0.000
070.	TC22021154	[1]	CASE,MID	; >=10052 22.2200(lbs); 10.100
080.	0501201018	[4]	PIN,STRAIGHT	0.0264(lbs); 0.012
090.	TC22014180	[5]	STUD	0.2860(lbs); 0.130
100.	0217650120	[11]	HEX.NUT	0.0220(lbs); 0.010
110.	0451250120	[11]	WASHER,SPRING LOCK	0.0066(lbs); 0.003
120.	0157461235	[6]	STUD	0.0880(lbs); 0.040
