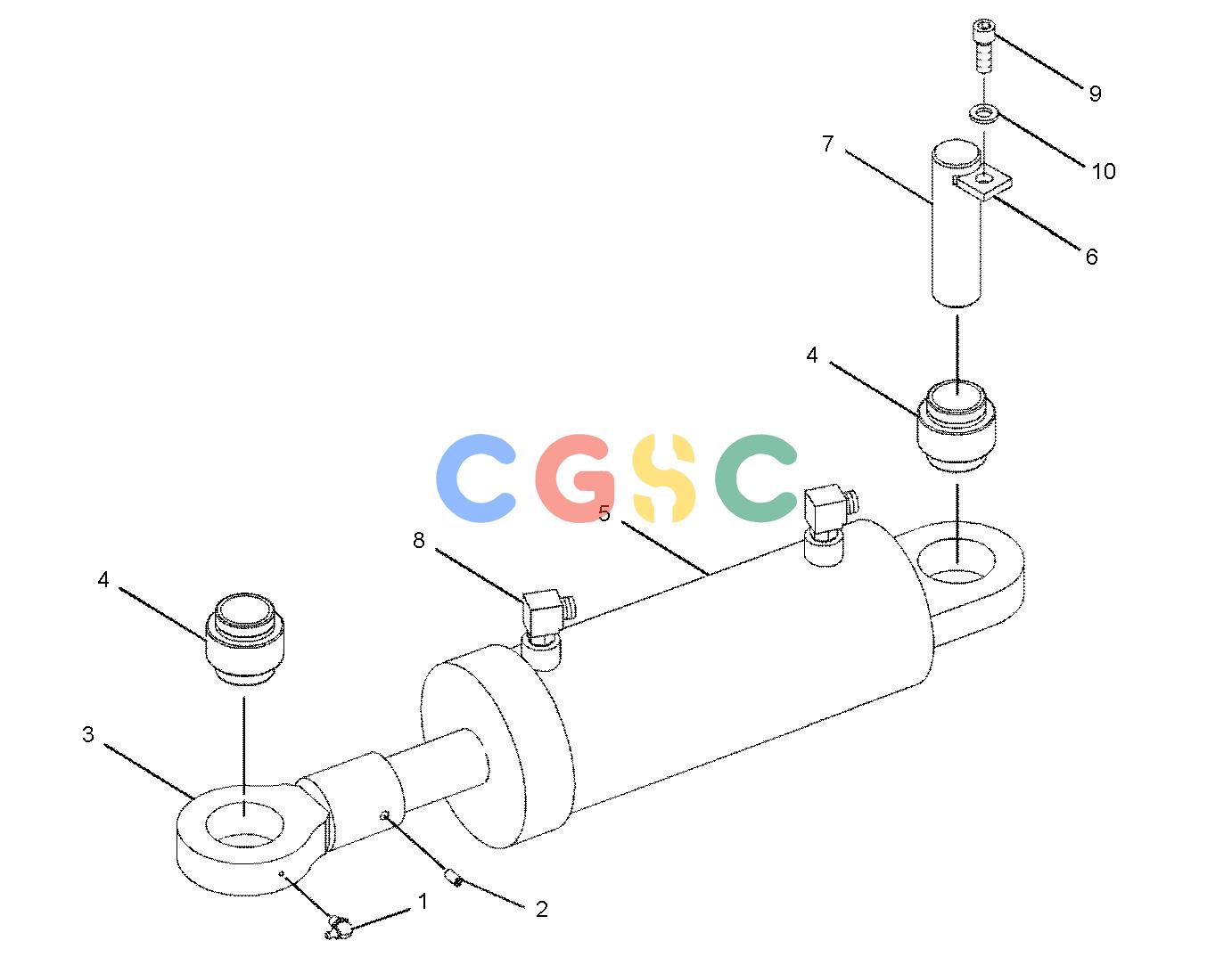

卡特零件查询（AP-655D） 256-5327: CYLINDER & MTG GP-TENSIONER
广数供应链运营团队, 17 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 4B-9808 | [2] | SETSCREW(1/4-20X0.5-IN) | |
| 3. | 7R-0238 | [2] | END AS-ROD | |
| 4. | 8C-1105 | [4] | BUSHING-TERMINAL | |
| 5. | 8C-9493Y | [2] | CYLINDER GP-HYDRAULIC(TRACK TENSION) | |
| 6. | 9N-7083 | [2] | RETAINER | |
| 7. | 108-1793 | [2] | PIN | |
| 8. | 148-8369 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 9. | 2D-4534 | [2] | BOLT-SOCKET HEAD(3/8-16X1-IN) | |
| 10. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
