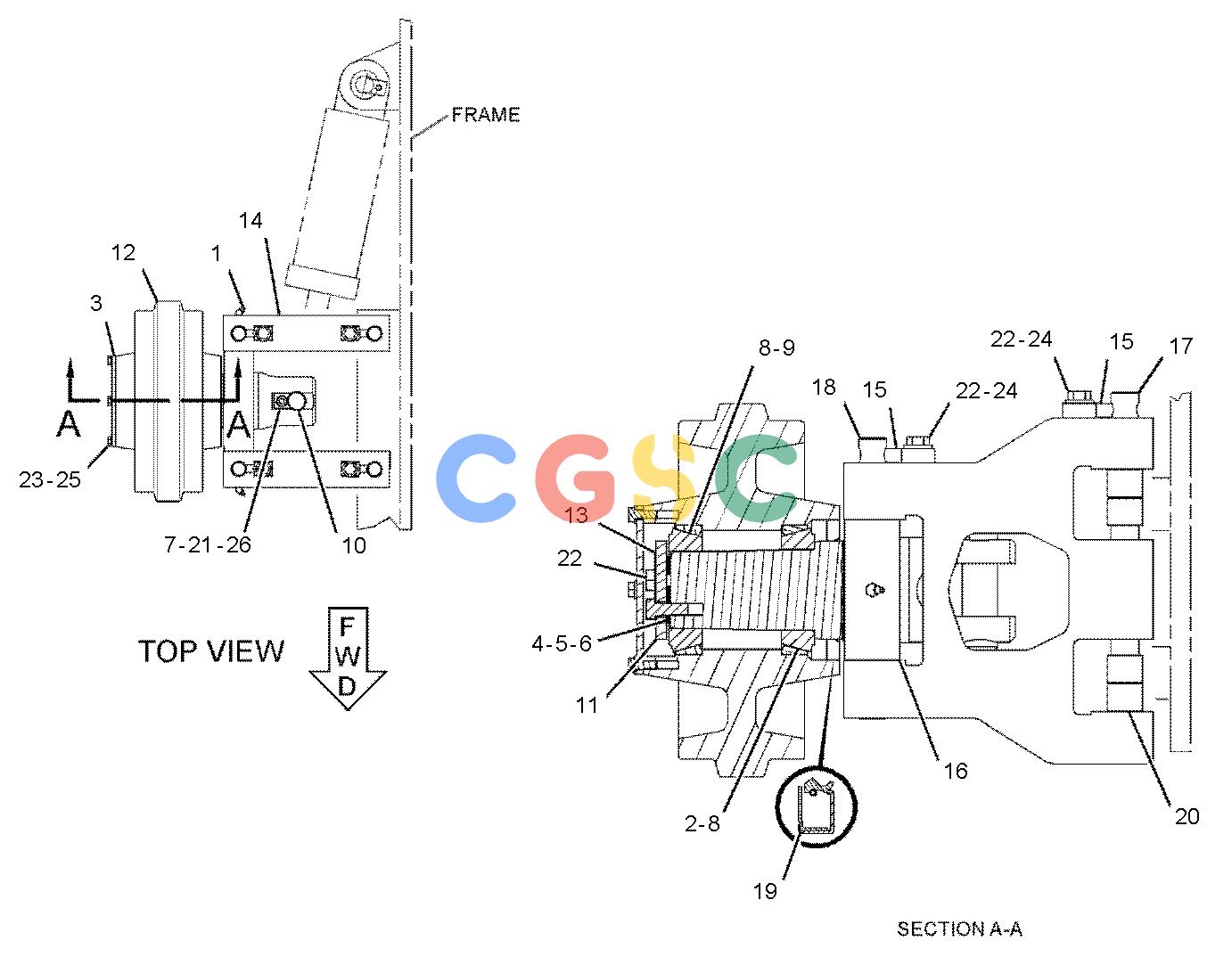

卡特零件查询（AP-655D） 269-6159: IDLER GP-FRONT
广数供应链运营团队, 17 02月, 2025，浏览：
930 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [2] | ELBOW | |
| 2. | 4D-3882 | [1] | CONE-BEARING | |
| 3. | 7R-0226 | [1] | PLATE-COVER | |
| 4. | 7R-0229 | [3] | SHIM(0.005-IN THK) | |
| 5. | 7R-0230 | [3] | SHIM(0.007-IN THK) | |
| 6. | 7R-0231 | [5] | SHIM(0.02-IN THK) | |
| 7. | 9N-7083 | [1] | RETAINER | |
| 8. | 006-7231 | [2] | CUP-BEARING | |
| 9. | 006-7232 | [1] | CONE-BEARING | |
| 10. | 108-1793 | [1] | PIN | |
| 11. | 109-1500 | [1] | PLATE | |
| 12. | 262-4104 | [1] | IDLER | |
| 13. | 269-2218 | [1] | PLATE-LOCK | |
| 14. | 269-6160 | [2] | LINK | |
| 15. | 269-6161 | [4] | PIN-RETAINING | |
| 16. | 269-6162 | [1] | SHAFT AS-IDLER | |
| 17. | 108-1791 | [2] | PIN | |
| 18. | 108-1792 | [2] | PIN | |
| 19. | 1J-4034 | [1] | SEAL-LIP TYPE | |
| 20. | 5H-3895 | [8] | BUSHING-TERMINAL | |
| 21. | 8T-1159M | [1] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 22. | 8T-4139M | [7] | BOLT(M12X1.75X30-MM) | |
| 23. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 24. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 25. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 26. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | M | | METRIC PART |
