卡特零件查询（AP-655D） 369-9554: CANOPY GP
广数供应链运营团队, 17 02月, 2025，浏览：
175 次

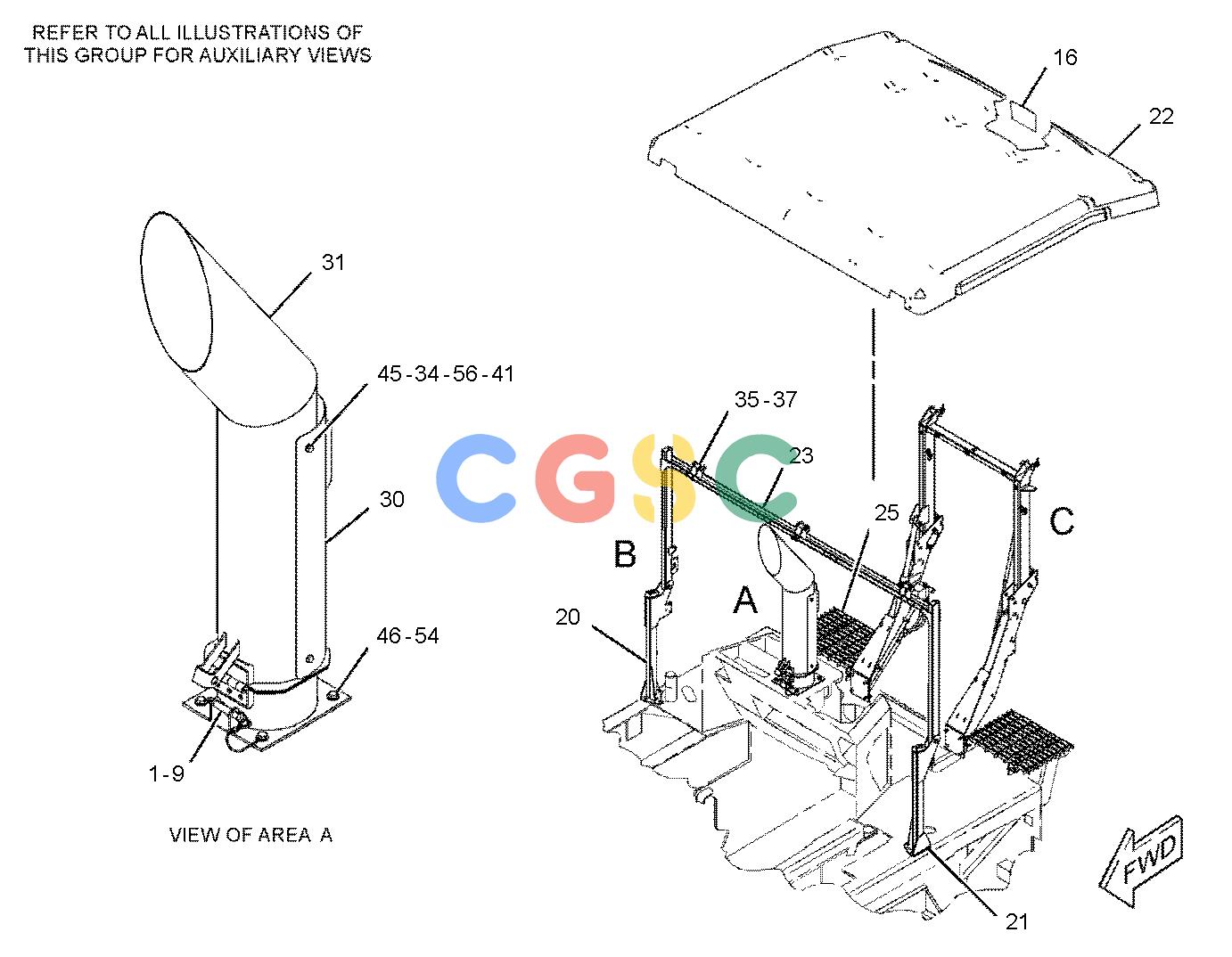

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-9892 | [1] | PIN | |
| 2. | 5P-7958 | [2] | SLEEVE-CABLE SPLICE | |
| 3. | 184-6893 | [1] | ELBOW | |
| 4. | 039-8869 | [4] | TUBE | |
| 5. | 081-3772 | [1] | LEVER | |
| 6. | 114-9284 | [2] | BUMPER | |
| 7. | 128-4119 | [1] | CYLINDER AS-TILT | |
| 8. | 128-4120 | [1] | PUMP AS-HAND(TILT CYLINDER) | |
| 9. | 135-5049 | [1] | CABLE AS | |
| 10. | 167-1192 | [2] | CLIP | |
| 11. | 224-0554 | [1] | FILM-WARNING(UNIVERSAL, READ OMM) | |
| 12. | 238-7609 | [2] | PIN | |
| 13. | 258-6607 | [4] | SPACER(8.4X14X17-MM THK) | |
| 14. | 280-3991 | [2] | STUD-BALL | |
| 15. | 280-3992 | [2] | CLIP-RETAINING | |
| 16. | 303-3427 | [1] | FILM-IDENTIFICATION(CAT) | |
| 17. | 332-0114 | [1] | SPRING-GAS | |
| 18. | 359-6089 | [2] | SUPPORT AS-REAR | |
| 19. | 359-6090 | [1] | ARM AS-PIVOT | |
| 20. | 359-6091 | [1] | SUPPORT AS-FRONT(RH) | |
| 21. | 359-6092 | [1] | SUPPORT AS-FRONT(LH) | |
| 22. | 359-6093Y | [1] | CANOPY GP(TOP) | |
| 23. | 379-0101 | [1] | ARM AS | |
| 24. | 361-7376 | [1] | WALKWAY AS | |
| 25. | 361-7377 | [1] | WALKWAY AS | |
| 26. | 362-8121I | [2] | HOSE AS | |
| 27. | 363-8786 | [2] | PIN-CLEVIS | |
| 28. | 368-2348 | [2] | PIN-LOCK | |
| 29. | 370-4158 | [2] | PAD | |
| 30. | 371-7652 | [1] | SHIELD | |
| 31. | 372-1282 | [1] | STACK GP-PAVER VENTILATION | |
| | 107-6125 | [1] | HINGE AS | |
| | 232-3121M | [1] | NUT(M10X1.25-THD) | |
| 32. | 5P-7957 | [2] | LANYARD | |
| 33. | 148-8320 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6865 | [1] | CONNECTOR | |
| 34. | 154-2302 | [4] | SPACER(11X20X15-MM THK) | |
| 35. | 173-3651 | [7] | PIN-CLEVIS | |
| 36. | 3B-4617 | [2] | PIN-COTTER | |
| 37. | 3B-4629 | [9] | PIN-COTTER | |
| 38. | 4J-5477 | [1] | SEAL-O-RING | |
| 39. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 40. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 41. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 42. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 43. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 44. | 7I-2273M | [2] | BOLT(M5X0.8X16-MM) | |
| 45. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 46. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 47. | 8T-0328 | [4] | WASHER-HARD(5.5X10X1-MM THK) | |
| 48. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 49. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 50. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 51. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 52. | 8T-4184M | [2] | BOLT(M12X1.75X45-MM) | |
| 53. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 54. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 55. | 8T-4222 | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 56. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 57. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 58. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 59. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 60. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| 61. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 62. | 8T-7934 | [3] | WASHER-HARD(11X21X5-MM THK) | |
| 63. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
