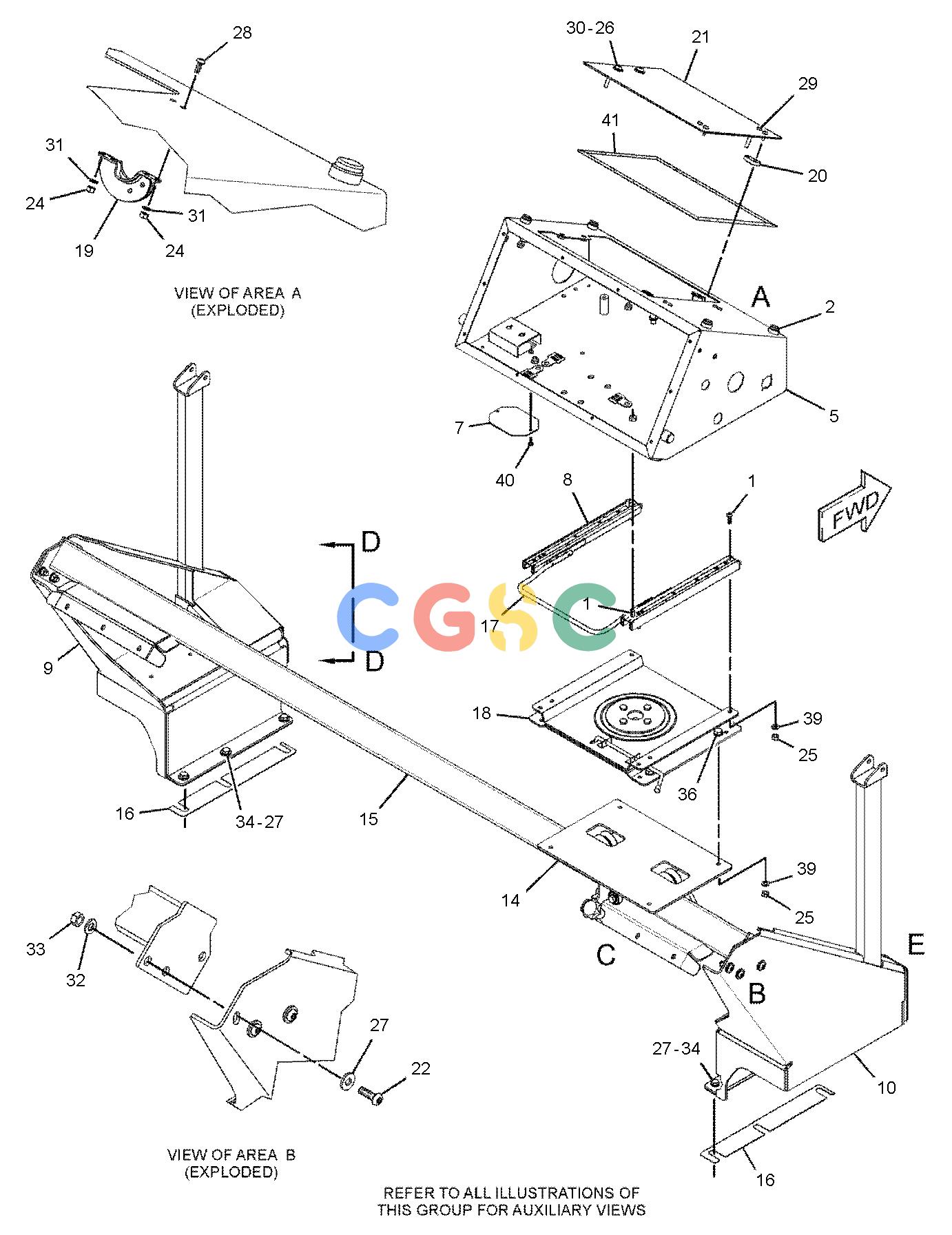

卡特零件查询（AP-655D） 269-2817: CONSOLE GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
291 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-3370M | [8] | BOLT(M8X1.25X20-MM) | |
| 2. | 111-1777 | [4] | BUMPER-RUBBER | |
| 3. | 160-2226 | [1] | BALL BEARING | |
| 4. | 269-2914 | [4] | BALL BEARING | |
| 5. | 271-5094 | [1] | CONSOLE AS | |
| 6. | 276-4641 | [1] | PIN AS | |
| 7. | 277-0734 | [1] | COVER | |
| 8. | 284-4484 | [1] | KIT-ADJUSTER | |
| | | | (INCLUDES SPACER & BOLT) |
| 9. | 286-3758 | [1] | PLATE AS | |
| 10. | 286-3762 | [1] | PLATE AS | |
| 11. | 286-3763 | [1] | COVER | |
| 12. | 286-3764 | [1] | COVER | |
| 13. | 286-3769 | [2] | SPACER(10.5X30X47-MM THK) | |
| 14. | 286-3770 | [1] | PLATE AS | |
| 15. | 286-3771 | [1] | RAIL AS | |
| 16. | 286-3772B | [4] | SHIM(1-MM THK) | |
| 17. | 286-3776 | [1] | HANDLE | |
| 18. | 287-7588 | [1] | SWIVEL GP | |
| 19. | 292-0958 | [2] | HINGE AS | |
| 20. | 292-0959 | [2] | SPACER | |
| 21. | 292-0960 | [1] | COVER AS | |
| 22. | 141-9203M | [6] | SCREW-BUTTON HEAD(M10X1.5X30-MM) | |
| 23. | 238-0251M | [6] | SCREW-BUTTON HEAD(M10X1.5X25-MM) | |
| 24. | 5C-2874M | [8] | NUT(M5X0.8-THD) | |
| 25. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 26. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 27. | 7X-7729 | [26] | WASHER(11X25X3-MM THK) | |
| 28. | 7Y-7388M | [4] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 29. | 7Y-7389M | [4] | SCREW(M5X0.8X16-MM) | |
| 30. | 7Y-7394M | [2] | SCREW-BUTTON HEAD(M8X1.25X25-MM) | |
| 31. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| 32. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 8T-4133M | [11] | NUT(M10X1.5-THD) | |
| 34. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 35. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 36. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 37. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 38. | 8T-4198M | [2] | BOLT(M10X1.5X100-MM) | |
| 39. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 40. | 9X-1046M | [2] | SCREW(M4X0.7X18-MM) | |
| 41. | 145-5664E | | SEAL(142-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
