卡特零件查询（AP-655D） 295-2143: COVER GP-ACCESS
广数供应链运营团队, 17 02月, 2025，浏览：
597 次

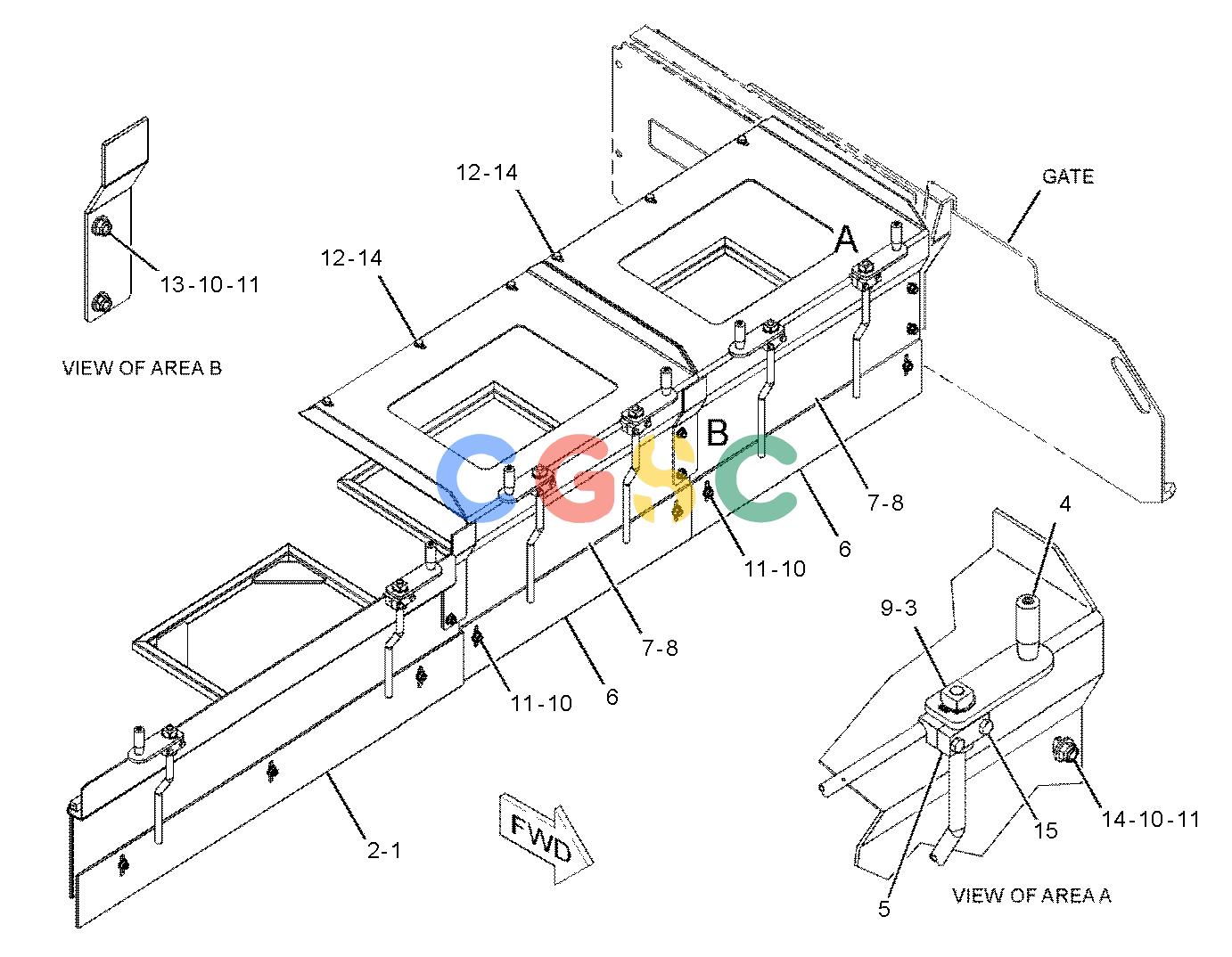

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 310-9816Y | [1] | PLATE GP-SCREED(RH) | |
| 2. | 310-9817Y | [1] | PLATE GP-SCREED(LH) | |
| 3. | 310-9821 | [8] | BUSHING | |
| 4. | 310-9829 | [8] | HANDLE AS(LEVER) | |
| | | | (EACH INCLUDES) |
| | 242-2804 | [1] | HANDLE | |
| | 315-3713 | [1] | LEVER | |
| 5. | 310-9831 | [8] | CLAMP | |
| 6. | 312-5044 | [4] | PLATE AS | |
| 7. | 315-3692 | [2] | PLATE AS(LH) | |
| 8. | 315-3693 | [2] | PLATE AS(RH) | |
| 9. | 095-0922 | [8] | RING-RETAINING | |
| 10. | 7X-7729 | [32] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-0389M | [20] | LOCKNUT(M10X1.5-THD) | |
| 12. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 15. | 8T-7547M | [16] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
