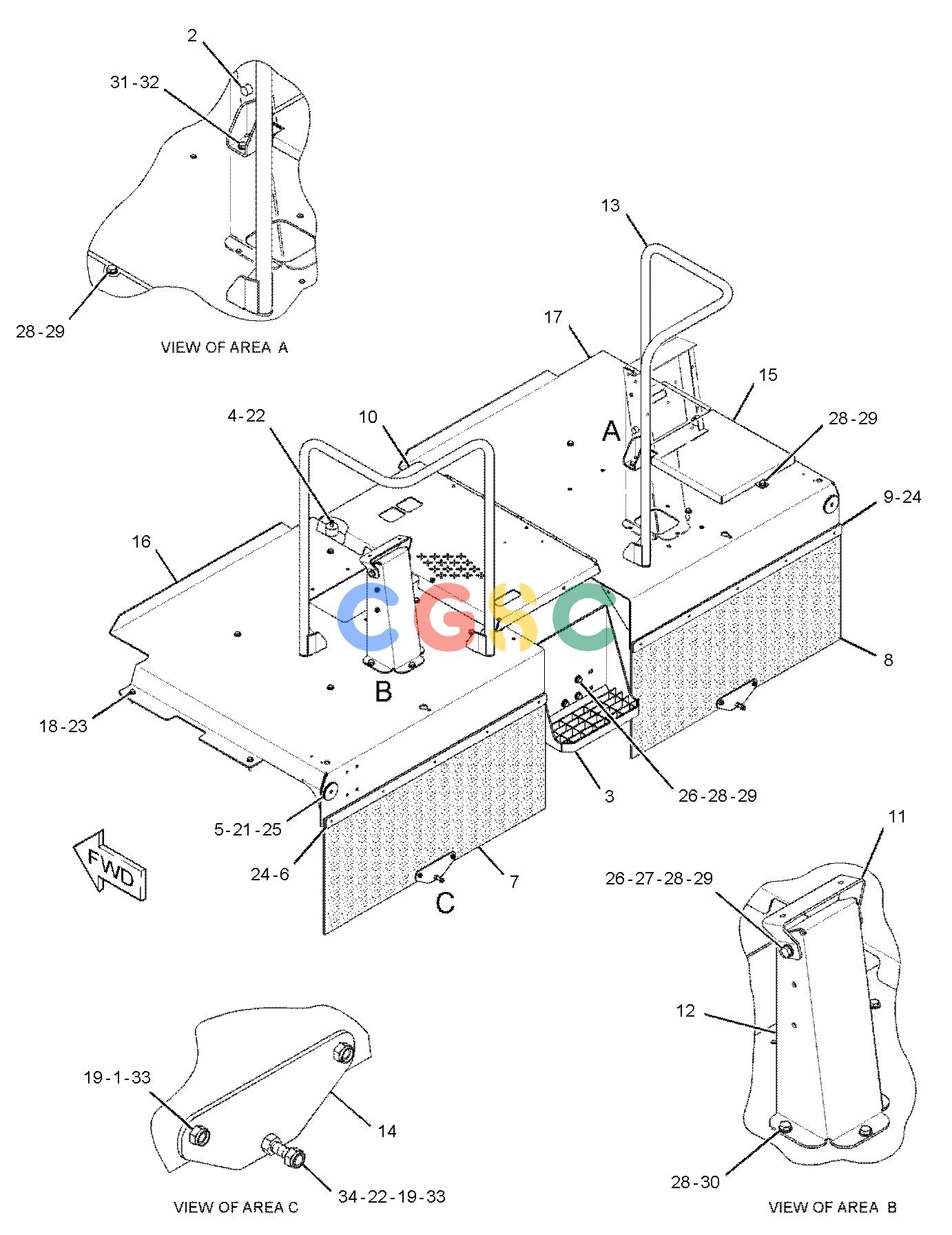

卡特零件查询（AP-655D） 286-3493: COVER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
590 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-7505M | [4] | SCREW-FLAT HEAD(M8X1.25X20-MM) | |
| 2. | 239-3106 | [1] | BUMPER | |
| 3. | 242-2662 | [1] | STEP | |
| 4. | 242-2810 | [3] | STOPPER-RUBBER | |
| 5. | 242-2881 | [2] | REFLECTOR | |
| 6. | 258-7167 | [1] | PLATE(RH) | |
| 7. | 258-7168 | [1] | COVER-RUBBER | |
| 8. | 258-7170 | [1] | COVER-RUBBER | |
| 9. | 258-7172 | [1] | PLATE(LH) | |
| 10. | 287-4759 | [1] | COVER AS | |
| 11. | 288-9416 | [1] | SUPPORT | |
| 12. | 288-9430 | [1] | SUPPORT AS | |
| 13. | 292-8830 | [2] | HANDRAIL AS | |
| 14. | 310-9820 | [2] | PLATE | |
| 15. | 312-5026 | [1] | COVER-BOX | |
| 16. | 339-1681 | [1] | COVER AS(LH) | |
| 17. | 315-3712 | [1] | COVER AS(RH) | |
| 18. | 8T-4199M | [14] | BOLT(M8X1.25X12-MM) | |
| 19. | 131-3540M | [6] | LOCKNUT(M8X1.25-THD) | |
| 21. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 22. | 5C-7261M | [5] | NUT(M8X1.25-THD) | |
| 23. | 5P-4116 | [14] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 24. | 5W-1341M | [10] | BOLT-SOCKET HEAD(M8X1.25X16-MM) | |
| 25. | 5W-1453 | [2] | LOCKWASHER | |
| 26. | 7X-7729 | [5] | WASHER(11X25X3-MM THK) | |
| 27. | 8T-0389M | [2] | LOCKNUT(M10X1.5-THD) | |
| 28. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 30. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 31. | 8T-4224 | [9] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 33. | 269-5138 | [6] | WASHER(13X24X3-MM THK) | |
| 34. | 8C-7506M | [2] | SCREW-MACHINE(M8X1.25X40-MM) | |
| 35. | 437-4191 | [1] | PLATE | |
| 36. | 142-2304M | [1] | SCREW-BUTTON HEAD(M8X1.25X35-MM) | |
| 37. | 8V-7162 | [1] | CABLE | |
| 38. | 7X-0579 | [3] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 39. | 5E-9892 | [1] | PIN | |
| 40. | 3T-0852M | [1] | LOCKNUT(M8X1.25-THD) | |
| | M | | METRIC PART |
