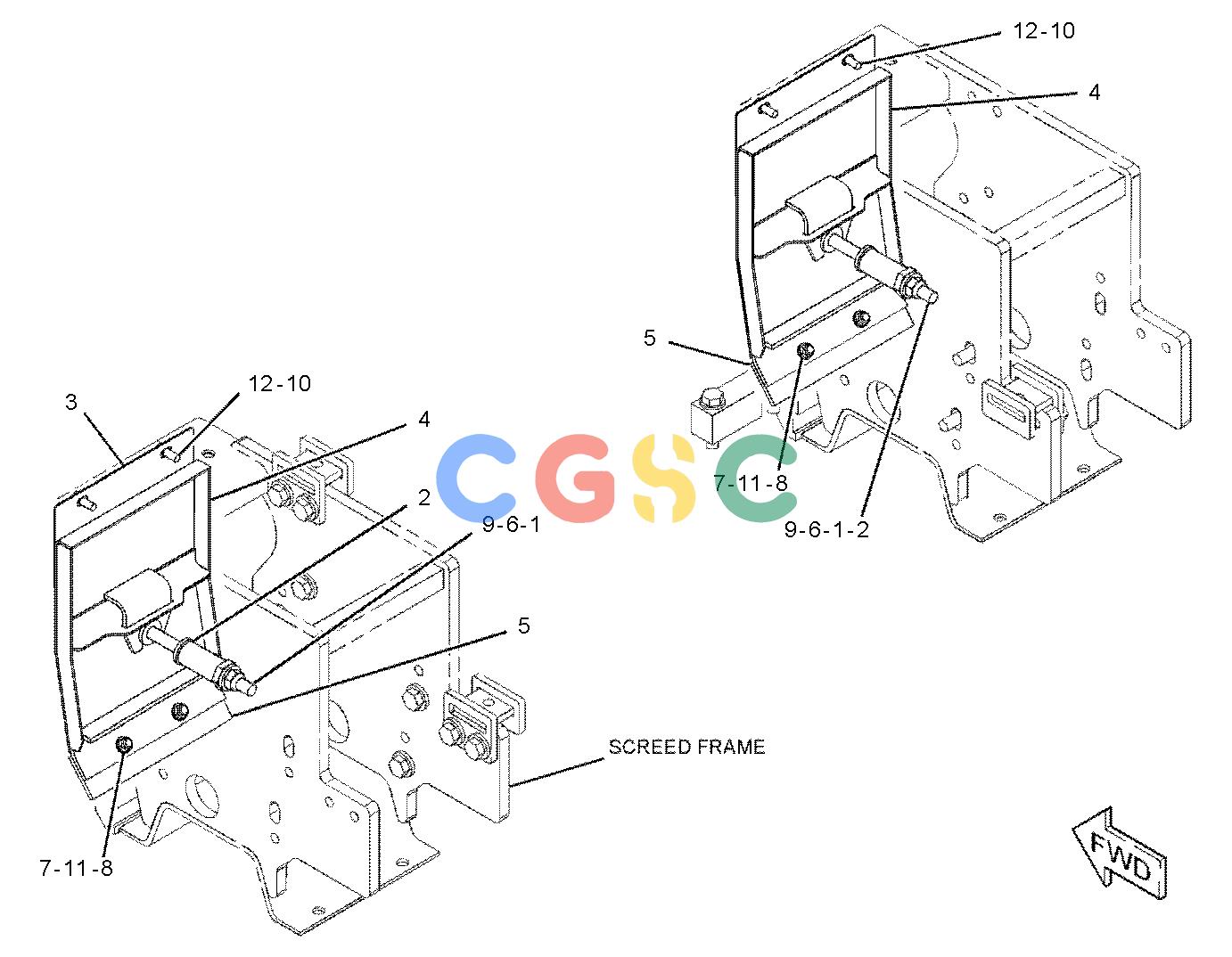

卡特零件查询（AP-655D） 359-1027: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
815 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0184 | [2] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 2. | | [2] | ROD AS-PULL |
| 3. | 353-9510 | [2] | PLATE | |
| 4. | 353-9545 | [2] | DEFLECTOR AS | |
| 5. | 353-9546 | [2] | BLADE(250-MM) | |
| 6. | 176-5311M | [2] | LOCKNUT(M16X2-THD) | |
| 7. | 6V-7726M | [4] | SCREW-HEX SOCKET(M10X1.5X25-MM) | |
| 8. | 6V-7744M | [4] | LOCKNUT(M10X1.5-THD) | |
| 9. | 7X-0515 | [2] | WASHER-HARD(17X35X5-MM THK) | |
| 10. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| | M | | METRIC PART |
