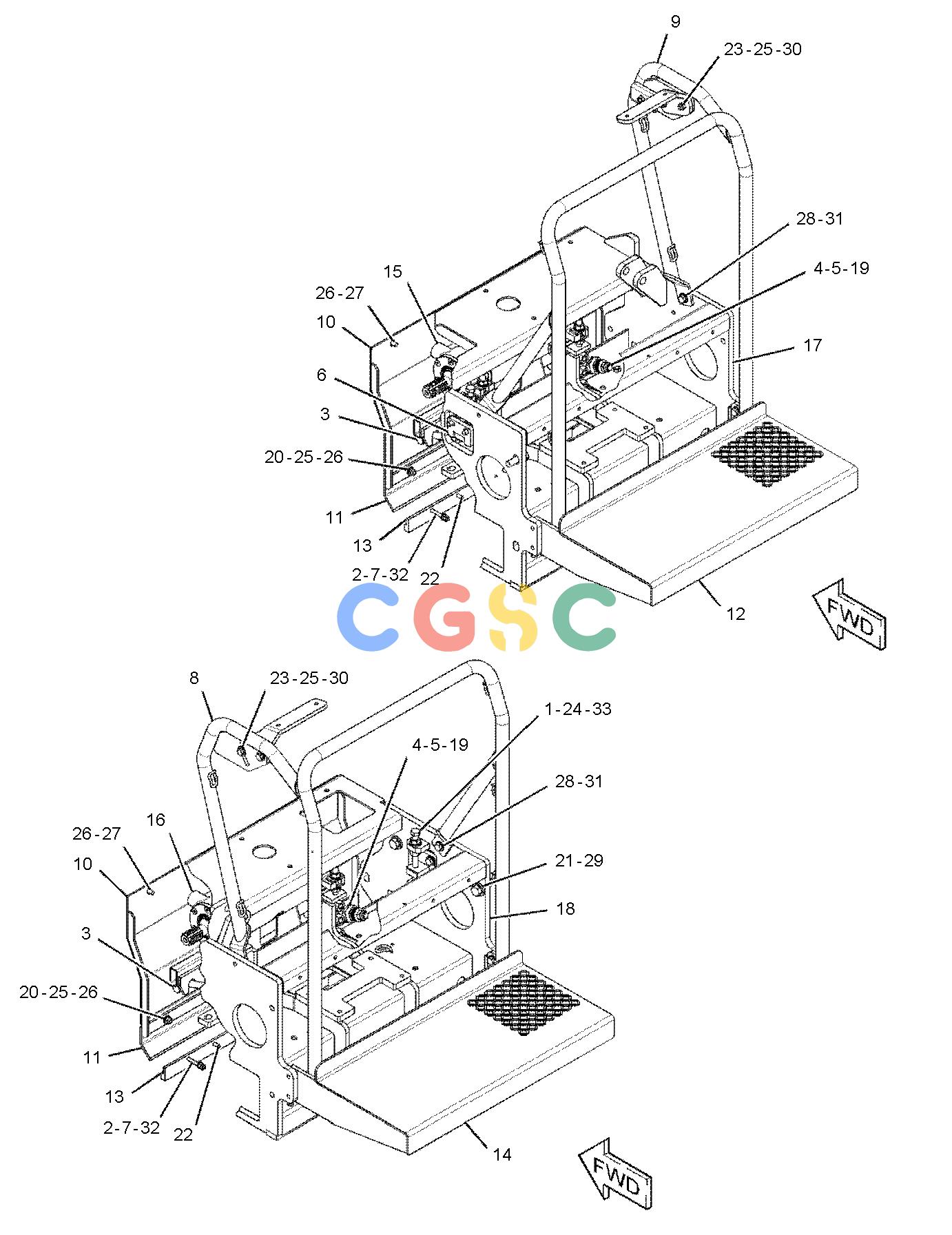

卡特零件查询（AP-655D） 339-1636: EXTENSION GP-MAIN FRAME
广数供应链运营团队, 17 02月, 2025，浏览：
722 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 096-4876M | [4] | NUT(M14X2-THD) | |
| 2. | 194-7183 | [16] | NUT(M8X1.25-THD) | |
| 3. | 242-2716 | [4] | RETAINER | |
| | | | (EACH INCLUDES) |
| | 8T-4132M | [1] | NUT(M16X2-THD) | |
| 4. | 242-2805 | [32] | WASHER-SPRING | |
| 5. | 242-2866 | [4] | BOLT-HOLLOW(M27X2X50-MM) | |
| 6. | 245-9684 | [2] | SUPPORT | |
| 7. | 248-7551 | [8] | SCREW-FLAT HEAD(M8X1.25X65-MM) | |
| 8. | 281-6224 | [1] | SUPPORT(LH) | |
| 9. | 281-6225 | [1] | SUPPORT(RH) | |
| 10. | 295-2126 | [2] | DEFLECTOR AS | |
| 11. | 295-2127 | [2] | PLATE-SCRAPER | |
| 12. | 295-2128 | [1] | FLOOR AS(RH) | |
| 13. | 295-2129 | [2] | PLATE-WEAR | |
| 14. | 295-2144 | [1] | FLOOR AS(LH) | |
| 15. | 296-9357Y | [1] | SHAFT GP-VIBRATORY(ECCENTRIC, RH) | |
| 16. | 296-9358Y | [1] | SHAFT GP-VIBRATORY(ECCENTRIC, LH) | |
| 17. | 339-1634 | [1] | FRAME AS(RH) | |
| 18. | 339-1635 | [1] | FRAME AS(LH) | |
| 19. | 096-4885M | [4] | LOCKNUT(M16X2-THD) | |
| 20. | 157-0949M | [8] | SCREW-FLAT HEAD(M10X1.5X25-MM) | |
| 21. | 7X-0515 | [4] | WASHER-HARD(17X35X5-MM THK) | |
| 22. | 7X-2438 | [4] | DOWEL | |
| 23. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 24. | 8T-0298M | [4] | BOLT(M14X2X100-MM) | |
| 25. | 8T-0389M | [12] | LOCKNUT(M10X1.5-THD) | |
| 26. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 28. | 8T-4192M | [16] | BOLT(M12X1.75X25-MM) | |
| 29. | 8T-4193M | [4] | BOLT(M16X2X50-MM) | |
| 30. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 31. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
