卡特零件查询（AP-655D） 279-2578: FLASHING GP
广数供应链运营团队, 17 02月, 2025，浏览：
947 次

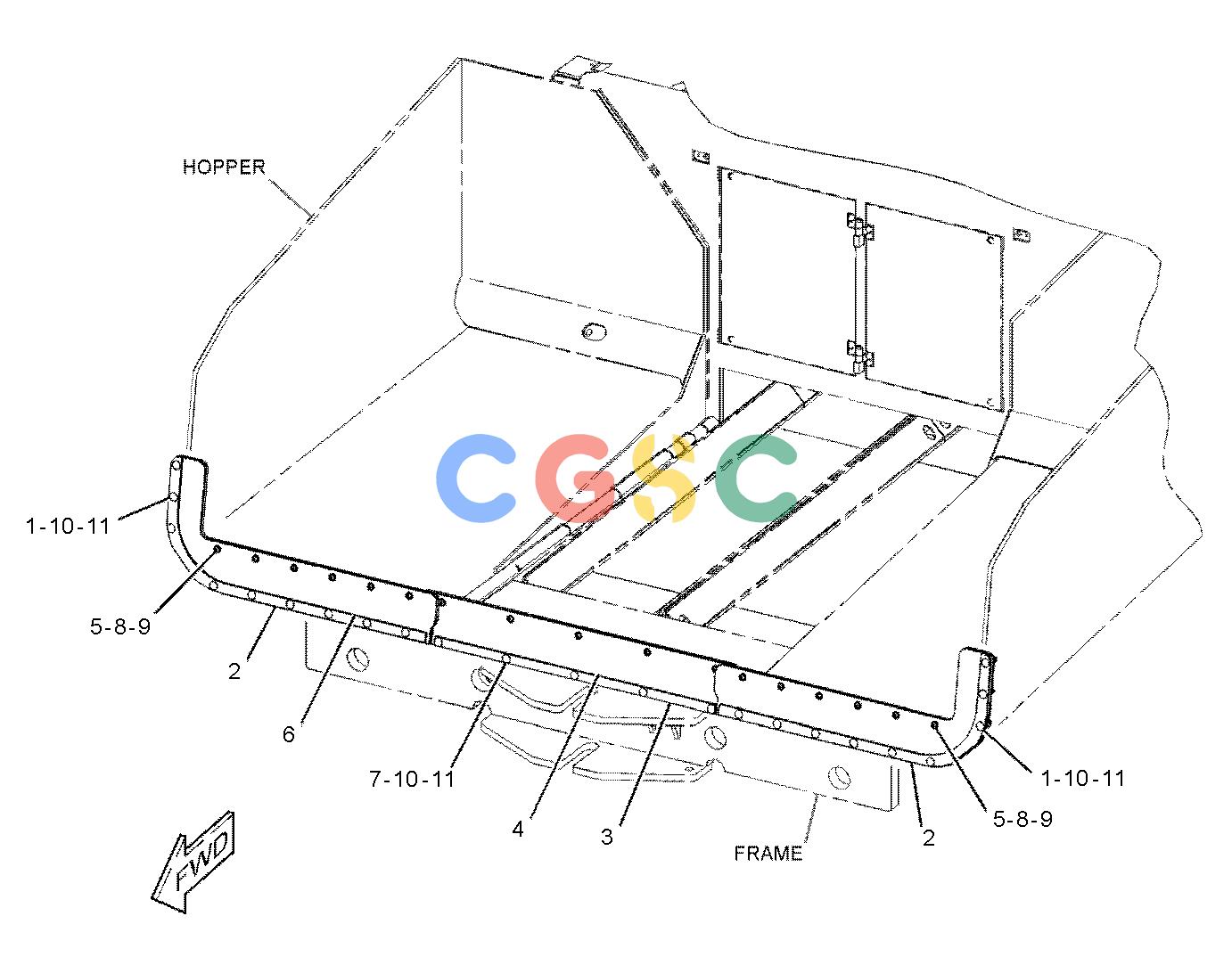

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 252-6307M | [18] | BOLT-CARRIAGE(M12X1.75X65-MM) | |
| 2. | 275-1147 | [2] | PLATE | |
| 3. | 275-1148 | [1] | PLATE | |
| 4. | 302-3371 | [1] | FLASHING AS | |
| | 275-1132 | [2] | FLASHING | |
| 5. | 302-3372M | [17] | NUT-WELD(M10X1.5-THD) | |
| 6. | 302-3384 | [2] | FLASHING AS | |
| | | | (EACH INCLUDES) |
| | 275-1149 | [2] | FLASHING | |
| 7. | M | [5] | BOLT-CARRIAGE(M12X1.75X60-MM) |
| 8. | 7X-7729 | [17] | WASHER(11X25X3-MM THK) | |
| 9. | 8C-8585M | [17] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 10. | 8T-4223 | [23] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4244M | [23] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
