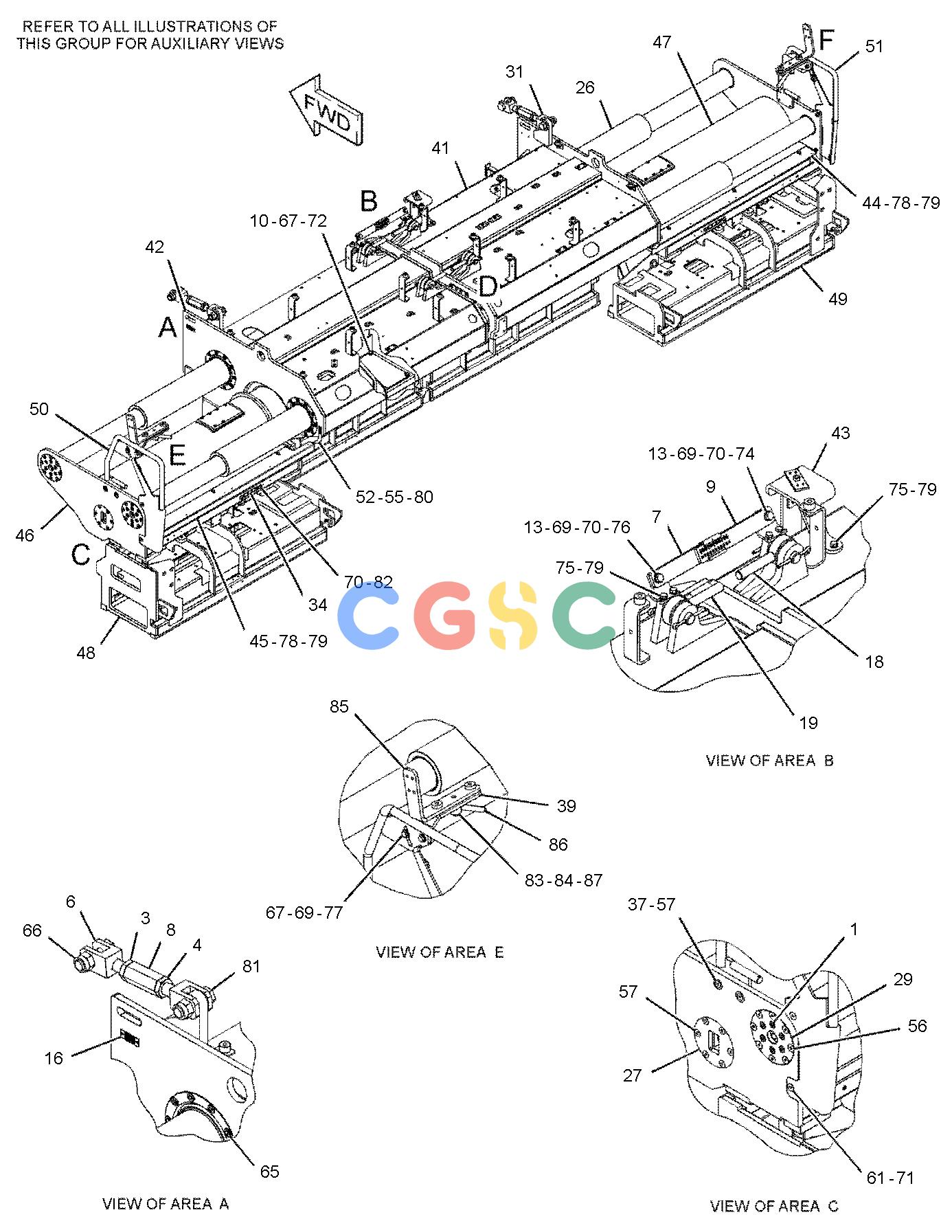

卡特零件查询（AP-655D） 286-3490: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
170 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 153-3506M | [24] | BOLT(M10X1.5X25-MM) | |
| 2. | 099-5217 | [8] | PIN-COTTER | |
| 3. | 201-5541M | [2] | NUT(M27X2-THD) | |
| 4. | 241-8253M | [2] | NUT(M27X2-THD) | |
| 5. | 242-2246 | [2] | NUT(M40X1.5-THD) | |
| 6. | 242-2647 | [2] | CLEVIS AS | |
| 7. | 242-2650 | [1] | BRACKET AS | |
| 8. | 242-2808 | [2] | NUT(M27X2-THD) | |
| 9. | 242-2819 | [1] | PLATE | |
| 10. | 242-2821 | [2] | COVER | |
| 11. | 242-2822 | [2] | HINGE | |
| 12. | 242-2823 | [1] | PLATE | |
| 13. | 242-2827 | [2] | SUPPORT | |
| 14. | 242-2832 | [2] | CLEVIS | |
| 15. | 242-2833 | [2] | RING | |
| 16. | 242-2893 | [2] | PLATE | |
| 17. | 242-2895 | [4] | PIN | |
| 18. | 242-2896 | [2] | ROD | |
| 19. | 242-2897 | [2] | ROD | |
| 20. | 242-2898 | [8] | SPACER(20.1X26X4.4-MM THK) | |
| 21. | 242-2899 | [4] | PIN | |
| 22. | 242-2900 | [8] | SPACER(25.5X30X5-MM THK) | |
| 23. | 242-2922 | [8] | RISER GP-CAB | |
| 24. | 242-2923M | [2] | STUD(M24X3X295-MM) | |
| 25. | 251-0760 | [4] | PLATE-RETAINER | |
| 26. | 251-0767Y | [4] | TUBE GP-EXTENSION(TELESCOPING) | |
| 27. | 251-0782 | [2] | FLANGE AS | |
| 28. | 251-0831 | [4] | BUSHING | |
| 29. | 257-5275 | [4] | FLANGE | |
| 30. | 258-9917M | [4] | NUT-CASTLE(M24X3-THD) | |
| 31. | 264-3308 | [2] | CLEVIS AS | |
| 32. | 265-6497 | [1] | SUPPORT-CYLINDER(LH) | |
| 33. | 265-6499 | [1] | SUPPORT-CYLINDER(RH) | |
| 34. | 265-6506 | [2] | BLOCK | |
| 35. | 268-6158 | [1] | PLATE-SUPPORT(LH) | |
| 36. | 268-6159 | [1] | PLATE-SUPPORT(RH) | |
| 37. | 271-1919 | [4] | WASHER(17X30X4-MM THK) | |
| 38. | 276-4286 | [14] | DAMPER | |
| | | | (EACH INCLUDES) |
| | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 39. | 281-6224 | [1] | SUPPORT(LH) | |
| 40. | 281-6225 | [1] | SUPPORT(RH) | |
| 41. | 286-3491Y | [1] | FRAME GP-SCREED(RH) | |
| 42. | 286-3492Y | [1] | FRAME GP-SCREED(LH) | |
| 43. | 286-3646 | [1] | SUPPORT AS | |
| 44. | 292-8811 | [1] | PLATE(RH) | |
| 45. | 292-8812 | [1] | PLATE(LH) | |
| 46. | 292-8813Y | [1] | FRAME GP-SLIDING(LH) | |
| 47. | 292-8814Y | [1] | FRAME GP-SLIDING(RH) | |
| 48. | 292-8815 | [1] | FRAME AS(LH) | |
| 49. | 292-8816 | [1] | FRAME AS(RH) | |
| 50. | 292-8827 | [1] | HANDRAIL AS(LH) | |
| 51. | 292-8828 | [1] | HANDRAIL AS(RH) | |
| 52. | 292-8829 | [2] | INDICATOR(WIDTH) | |
| 53. | 270-9438 | [24] | SCREW-FLAT HEAD | |
| 54. | 095-0919 | [8] | RING-RETAINING | |
| 55. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 56. | 127-2909M | [32] | SCREW-FLAT HEAD(M10X1.5X20-MM) | |
| 57. | 157-0949M | [16] | SCREW-FLAT HEAD(M10X1.5X25-MM) | |
| 58. | 244-2295 | [4] | BEARING-SPECIAL | |
| 59. | 2R-1230 | [4] | RING-RETAINING | |
| 60. | 095-0859 | [4] | PIN-COTTER | |
| 61. | 3E-4310M | [4] | SCREW-HEX HEAD(M10X1.5X30-MM) | |
| 63. | 5C-7261M | [10] | NUT(M8X1.25-THD) | |
| 64. | 5W-1341M | [56] | BOLT-SOCKET HEAD(M8X1.25X16-MM) | |
| 65. | 5W-2177M | [40] | BOLT-SOCKET HEAD(M12X1.75X20-MM) | |
| 66. | 6V-7676M | [4] | NUT(M24X3-THD) | |
| 67. | 7X-7729 | [10] | WASHER(11X25X3-MM THK) | |
| 68. | 8C-7505M | [10] | SCREW-FLAT HEAD(M8X1.25X20-MM) | |
| 69. | 8T-0389M | [6] | LOCKNUT(M10X1.5-THD) | |
| 70. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 71. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 72. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 73. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 74. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 75. | 8T-4189M | [7] | BOLT(M8X1.25X20-MM) | |
| 76. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 77. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 78. | 8T-4200M | [6] | BOLT(M8X1.25X16-MM) | |
| 79. | 8T-4224 | [13] | WASHER-HARD(8.8X16X2-MM THK) | |
| 80. | 8T-4647M | [4] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 81. | 8T-5878M | [4] | BOLT(M24X3X80-MM) | |
| 82. | 9X-2040M | [4] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 83. | 3B-4617 | [2] | PIN-COTTER | |
| 84. | 8D-5054 | [2] | WASHER-HARD(17X30X3-MM THK) | |
| 85. | 310-9830 | [2] | SUPPORT AS | |
| 86. | 310-9991 | [2] | HANDLE | |
| 87. | 315-3695 | [4] | WASHER-SPECIAL | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
