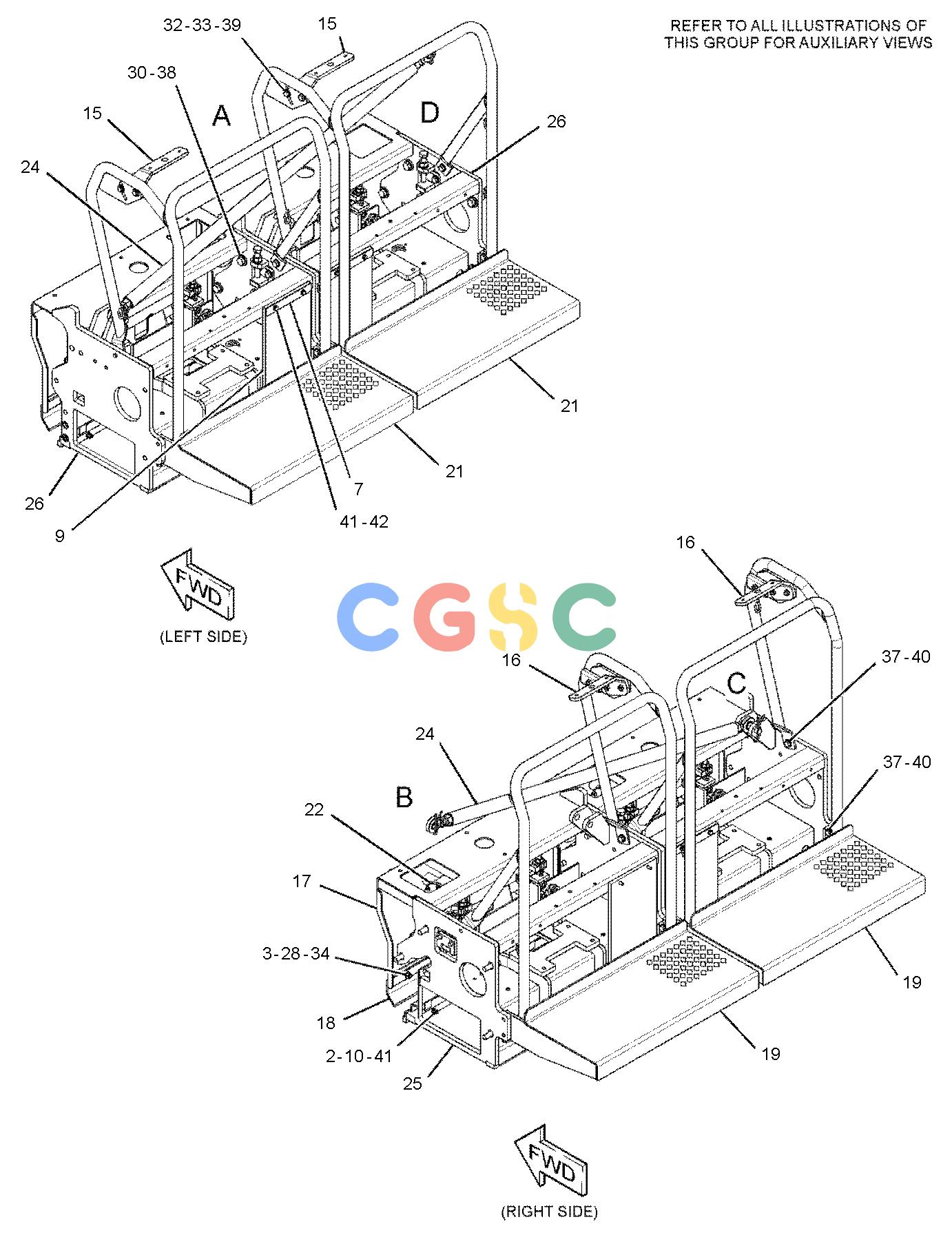

卡特零件查询（AP-655D） 339-1642: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
240 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-8837 | [4] | LOCK PIN | |
| 2. | 194-7183 | [32] | NUT(M8X1.25-THD) | |
| 3. | 197-8784 | [16] | LOCKNUT(M10X1.5-THD) | |
| 4. | 241-8120M | [2] | NUT(M20X1.5-THD, LH) | |
| 5. | 242-2716 | [8] | RETAINER | |
| | | | (EACH INCLUDES) |
| | 8T-4132M | [1] | NUT(M16X2-THD) | |
| 6. | 242-2866 | [8] | BOLT-HOLLOW(M27X2X50-MM) | |
| 7. | 245-9649 | [4] | PLATE | |
| 8. | 245-9684 | [4] | SUPPORT | |
| 9. | 245-9688 | [4] | PROTECTION | |
| 10. | 248-7551 | [16] | SCREW-FLAT HEAD(M8X1.25X65-MM) | |
| 11. | 260-3417 | [2] | BALL JOINT(RH) | |
| 12. | 260-3418 | [2] | BALL JOINT(LH) | |
| 13. | 276-5629 | [2] | PIN | |
| 14. | 276-5634 | [2] | UNIVERSAL JOINT GP | |
| 15. | 281-6224 | [2] | SUPPORT(LH) | |
| 16. | 281-6225 | [2] | SUPPORT(RH) | |
| 17. | 295-2126 | [4] | DEFLECTOR AS | |
| 18. | 295-2127 | [4] | PLATE-SCRAPER | |
| 19. | 295-2128 | [2] | FLOOR AS(RH) | |
| 20. | 295-2129 | [4] | PLATE-WEAR | |
| 21. | 295-2144 | [2] | FLOOR AS(LH) | |
| 22. | 296-9357Y | [2] | SHAFT GP-VIBRATORY(ECCENTRIC, RH) | |
| 23. | 296-9358Y | [2] | SHAFT GP-VIBRATORY(ECCENTRIC, LH) | |
| 24. | 300-1555 | [2] | ROD AS | |
| 25. | 339-1634 | [2] | FRAME AS(RH) | |
| 26. | 339-1635 | [2] | FRAME AS(LH) | |
| 27. | 136-4182M | [8] | BOLT(M16X2X100-MM) | |
| 28. | 157-0949M | [16] | SCREW-FLAT HEAD(M10X1.5X25-MM) | |
| 29. | 251-9567M | [2] | NUT(M20X1.5-THD) | |
| 30. | 7X-0515 | [16] | WASHER-HARD(17X35X5-MM THK) | |
| 31. | 7X-2438 | [8] | DOWEL | |
| 32. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 33. | 8T-0389M | [8] | LOCKNUT(M10X1.5-THD) | |
| 34. | 8T-4121 | [28] | WASHER-HARD(11X21X2.5-MM THK) | |
| 35. | 8T-4132M | [8] | NUT(M16X2-THD) | |
| 36. | 8T-4137M | [12] | BOLT(M10X1.5X20-MM) | |
| 37. | 8T-4192M | [32] | BOLT(M12X1.75X25-MM) | |
| 38. | 8T-4193M | [16] | BOLT(M16X2X50-MM) | |
| 39. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 40. | 8T-4223 | [32] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 41. | 8T-4224 | [24] | WASHER-HARD(8.8X16X2-MM THK) | |
| 42. | 8T-7547M | [8] | BOLT(M8X1.25X30-MM) | |
| 43. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
