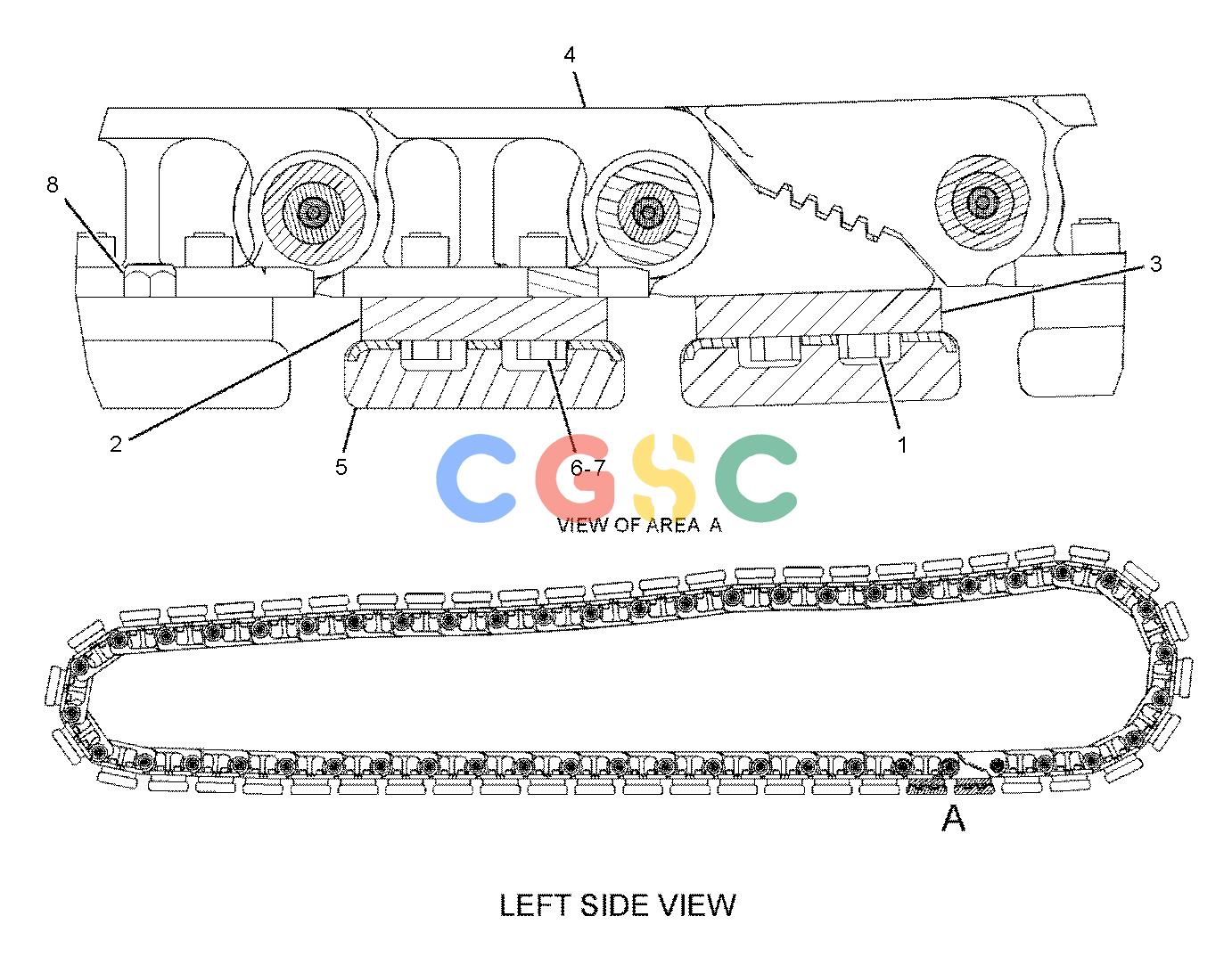

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8S-4747 | [4] | BOLT(9/16-18X3.5-IN) | |
| 2. | 136-1090 | [49] | PLATE-BACKING | |
| 3. | 136-1135 | [1] | PLATE-BACKING | |
| 4. | 222-3058Y | [1] | LINK AS-TRACK | |
| 5. | 132-1998 | [50] | PAD AS-TRACK | |
| 6. | 136-2402M | [196] | NUT-TRACK(M14X1.5-THD) | |
| 7. | 270-8607 | [196] | BOLT(M14X1.5X50-MM) | |
| 8. | 2K-4821 | [100] | LOCKNUT(5/8-18-THD) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
