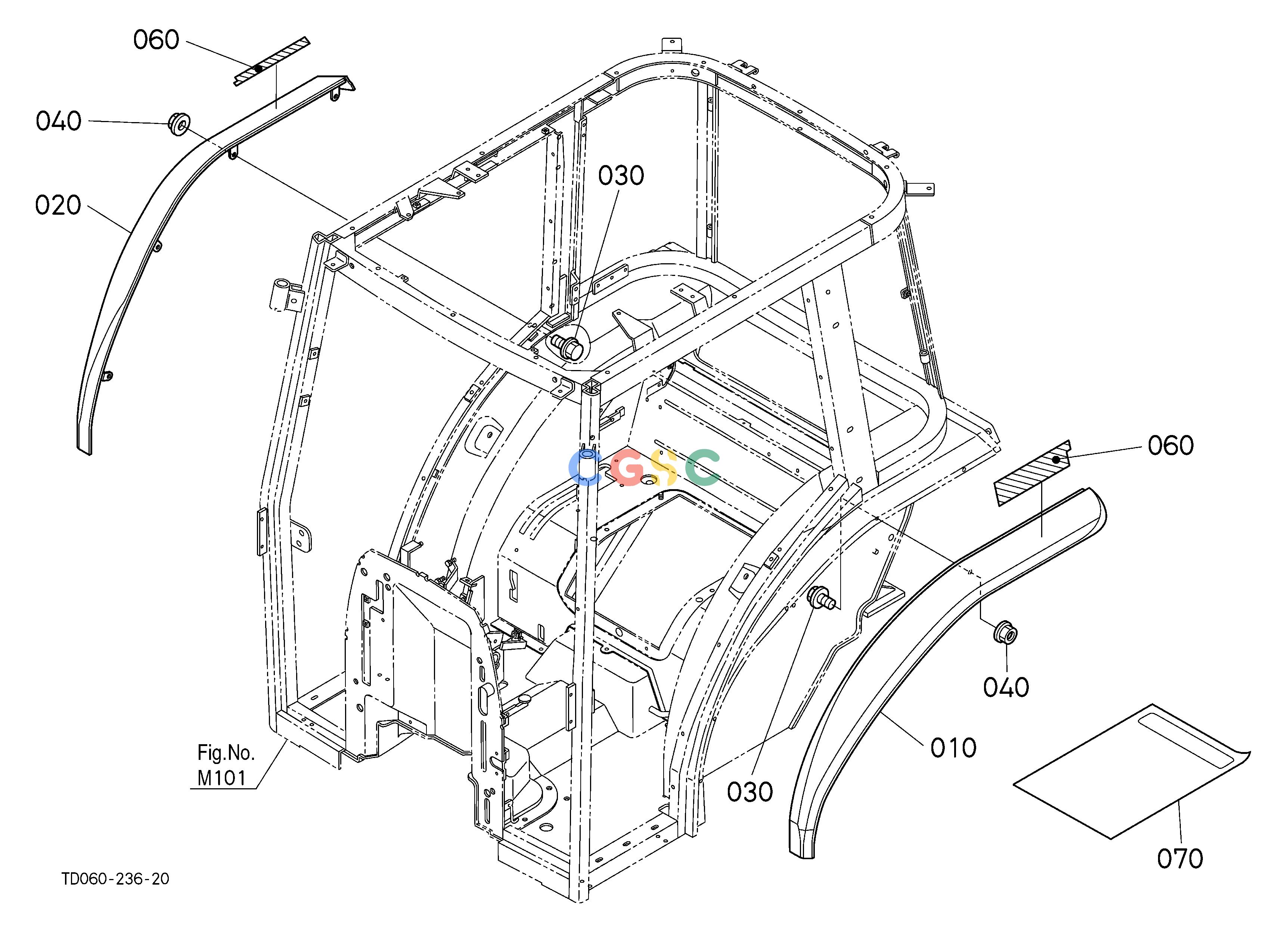

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | T106571810 | [1] | FENDER OVER LH | 3.5200(lbs); 1.600 |
| 020. | T106571820 | [1] | FENDER OVER RH | 3.5200(lbs); 1.600 |
| 030. | 0175450620 | [8] | BOLT FLANGE | 0.0154(lbs); 0.007 |
| 040. | 0276150060 | [8] | NUT FLANGE | 0.0066(lbs); 0.003 |
| 060. | TD06089470 | [2] | MARK HST FENDER | 0.0044(lbs); 0.002 |
| 070. | 9999999999 | [1] | MANUAL ASSEMBLY | 0.0000(lbs); 0.000 |
