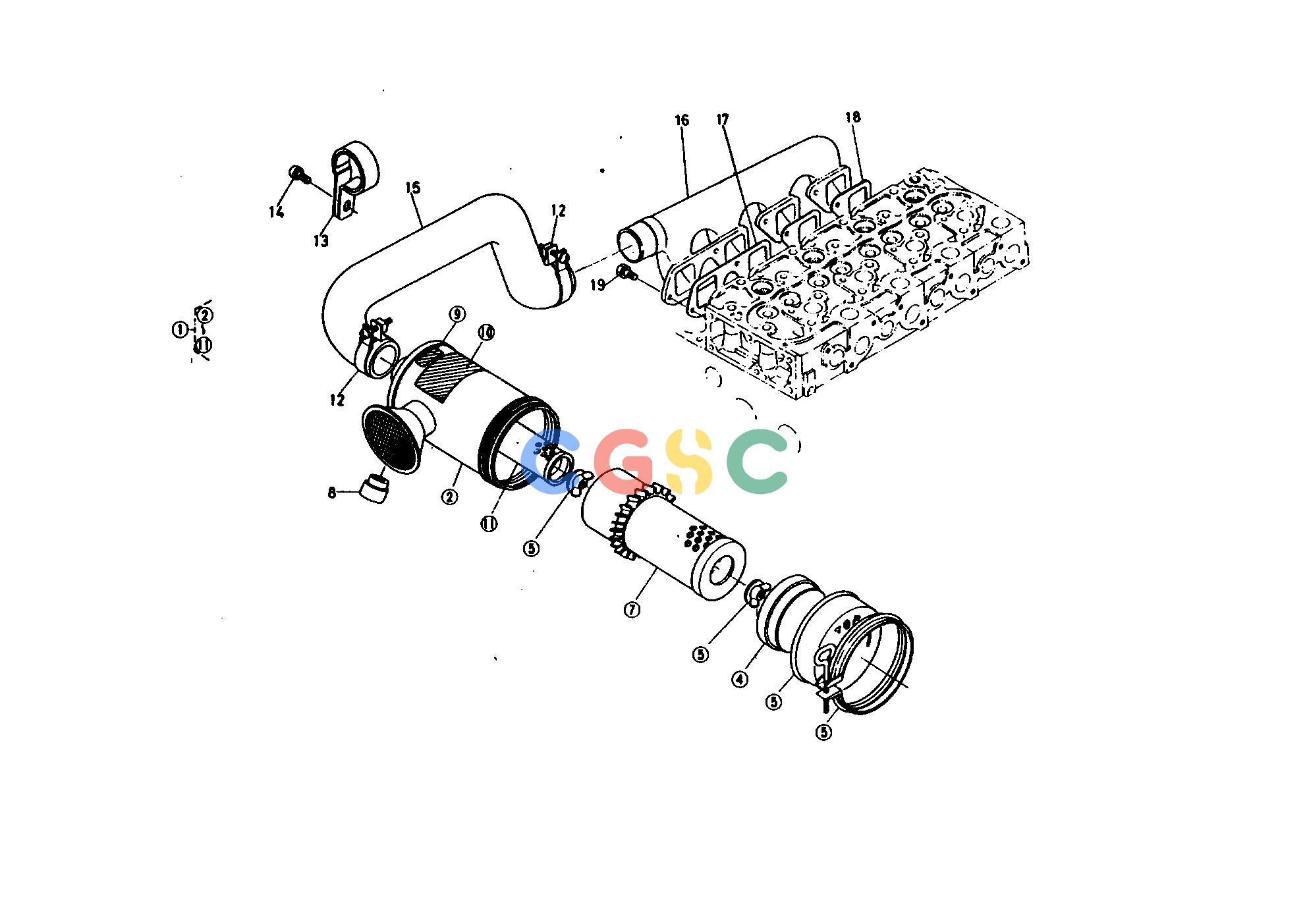

久保田零件查询060200 AIR CLEANER DOUBLE ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
980 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1531211010
|
[1] |
ASSY CLEANER AIR
|
5.0600(lbs); 2.300
|
| 002. |
1531211150
|
[1] |
BODY AIR CLEANER
|
3.2560(lbs); 1.480
|
| 003. |
1540111160
|
[1] |
COVER AIR CLEANER
|
0.8360(lbs); 0.380
|
| 004. |
1540111410
|
[1] |
COVER BAFFLE
|
0.1100(lbs); 0.050
|
| 005. |
1540192620
|
[1] |
NUT WING
|
0.0220(lbs); 0.010
|
| 006. |
1540111070
|
[1] |
ASSY BAND AIR CLEANE
|
0.2530(lbs); 0.115
|
| 007. |
1528711080
|
[1] |
ASSY ELEMENT AIR CLE
|
1.6500(lbs); 0.750
|
| 008. |
1540111090
|
[1] |
ASSY INDICATER
|
0.0462(lbs); 0.021
|
| 009. |
1531287750
|
[1] |
MARK FORM
|
0.0022(lbs); 0.001
|
| 010. |
1528787450
|
[1] |
LABEL AIR CLEANER
|
0.0220(lbs); 0.010
|
| 011. |
1528711490
|
[1] |
ELEMENT AIR CLEANER
|
0.5500(lbs); 0.250
|
| 012. |
1540111720
|
[2] |
BAND PIPE
|
0.1100(lbs); 0.050
|
| 013. |
1540111700
|
[1] |
ASSY HOLDER INLET PI
|
0.1760(lbs); 0.080
|
| 014. |
0300450812
|
[1] |
SCREW
|
0.0176(lbs); 0.008
|
| 015. |
1540111620
|
[1] |
PIPE INLET
|
1.8480(lbs); 0.840
|
| 016. |
1540111760
|
[1] |
MANIFOLD INLET
|
2.4200(lbs); 1.100
|
| 017. |
1552111820
|
[1] |
GASKET IN-MANIFOLD
|
0.0000(lbs); 0.000
|
| 018. |
1532111830
|
[1] |
GASKET IN-MANIFOLD
|
0.0000(lbs); 0.000
|
| 019. |
0112350822
|
[7] |
BOLT
|
0.0264(lbs); 0.012
|
