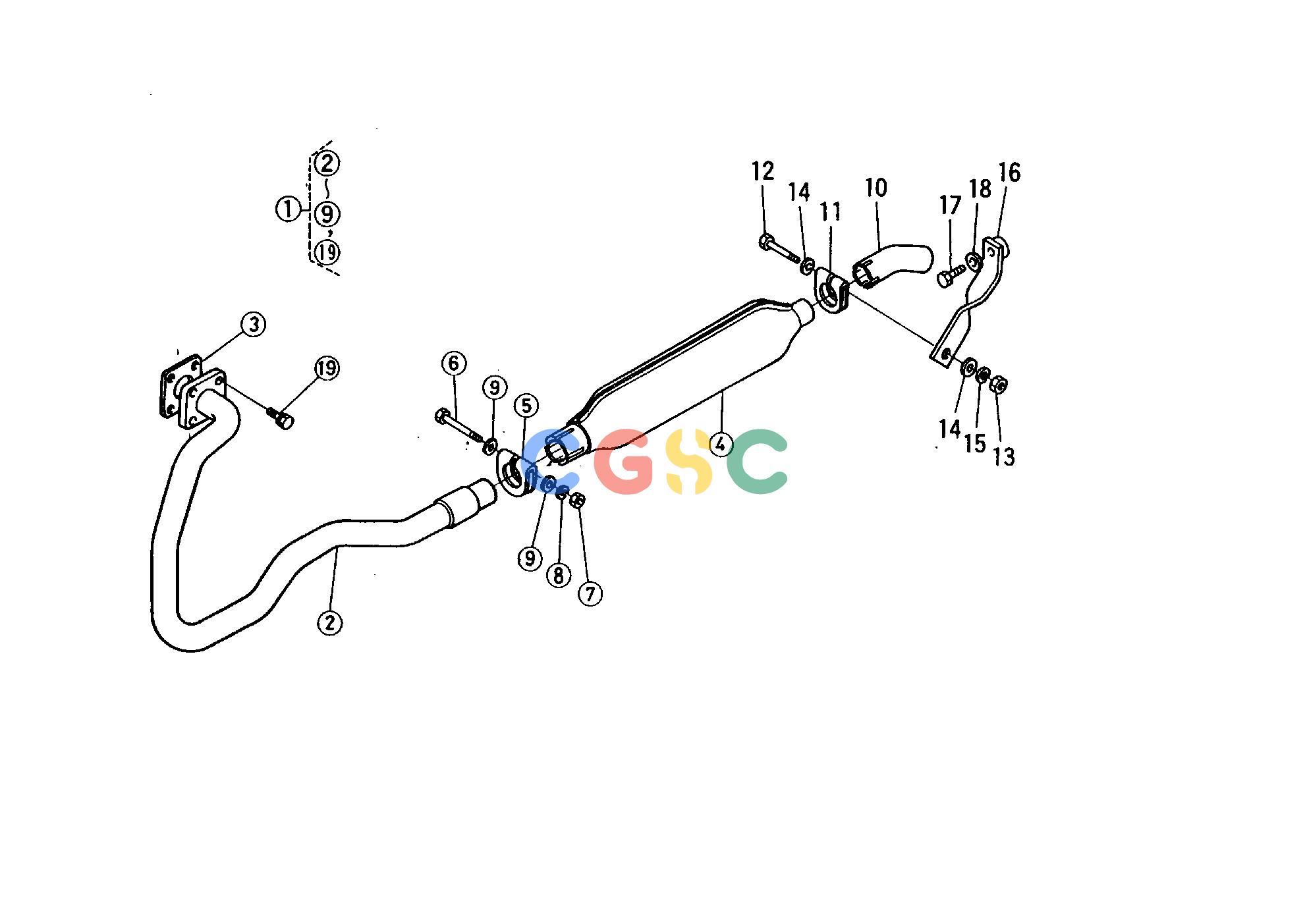

久保田零件查询070200 MUFFLER (OPTION) ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534063100
|
[1] |
ASSY MUFFLER
|
12.1000(lbs); 5.500
|
| 002. |
3534063110
|
[1] |
PIPE MUFFLER 1
|
6.6000(lbs); 3.000
|
| 003. |
1537112370
|
[1] |
GASKET M-FLANGE
|
0.0000(lbs); 0.000
|
| 004. |
3415962190
|
[1] |
MUFFLER
|
5.0380(lbs); 2.290
|
| 005. |
1522112130
|
[1] |
BAND MUFFLER
|
0.0000(lbs); 0.000
|
| 006. |
0115350878
|
[1] |
BOLT
|
0.0638(lbs); 0.029
|
| 007. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 008. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 009. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 010. |
3511062130
|
[1] |
PIPE MUFFLER 2
|
0.2420(lbs); 0.110
|
| 011. |
1522112430
|
[1] |
BAND PIPE
|
0.0000(lbs); 0.000
|
| 012. |
0115350865
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 013. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 014. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 015. |
0451250080
|
[1] |
WASHR SPRING
|
0.0044(lbs); 0.002
|
| 016. |
3534062160
|
[1] |
SUPPORT MUFFLER
|
0.1980(lbs); 0.090
|
| 017. |
0112350828
|
[1] |
BOLT
|
0.0308(lbs); 0.014
|
| 018. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 019. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
