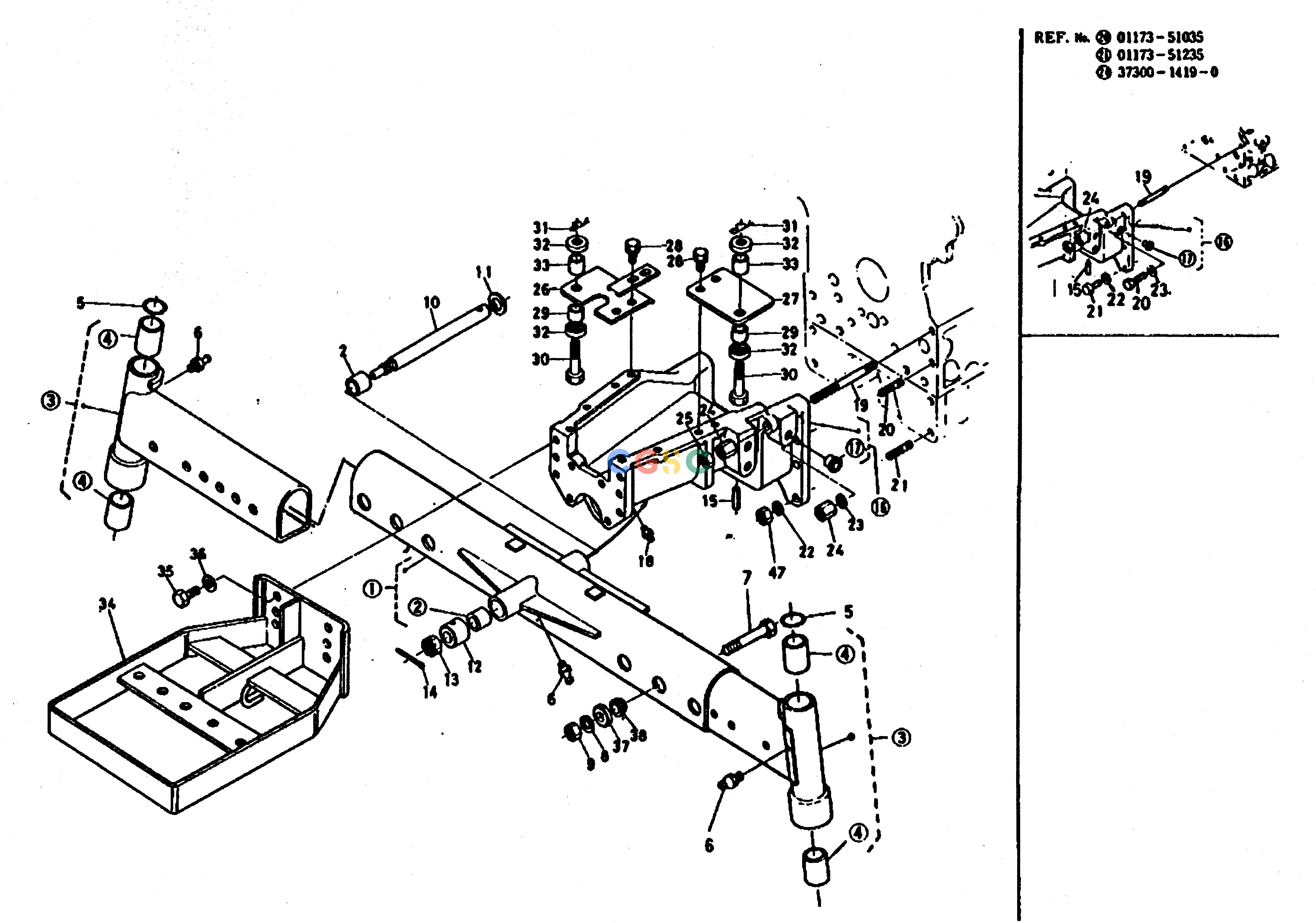

久保田零件查询210100 FRONT AXLE FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534013110
|
[1] |
AXLE FRONT MIDDLE
|
40.7000(lbs); 18.500
|
| 002. |
3215011530
|
[2] |
BUSH
|
0.1386(lbs); 0.063
|
| 003. |
3534013120
|
[2] |
AXLE FRONT OUTER
|
11.1100(lbs); 5.050
|
| 004. |
3215011530
|
[4] |
BUSH
|
0.1386(lbs); 0.063
|
| 005. |
0481100280
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 006. |
0661310010
|
[3] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 007. |
3534013140
|
[4] |
BOLT
|
0.3190(lbs); 0.145
|
| 008. |
0451250140
|
[4] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 009. |
0217650140
|
[4] |
NUT
|
0.0308(lbs); 0.014
|
| 010. |
3730013410
|
[1] |
PIN CENTER
|
2.7720(lbs); 1.260
|
| 011. |
3422013450
|
[1] |
COLLAR
|
0.0462(lbs); 0.021
|
| 012. |
3730013460
|
[1] |
COLLAR ADJUSTING
|
0.5060(lbs); 0.230
|
| 013. |
3221013480
|
[1] |
NUT ADJUSTING
|
0.2464(lbs); 0.112
|
| 014. |
0551150440
|
[1] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
| 015. |
0541101050
|
[1] |
PIN SPRING
|
0.0418(lbs); 0.019
|
| 016. |
3730013610
|
[1] |
BRACKET FRONT AXLE
|
33.2200(lbs); 15.100
|
| 017. |
3122014290
|
[3] |
PLUG
|
0.0044(lbs); 0.002
|
| 018. |
0661310010
|
[1] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 019. |
3426013640
|
[2] |
STUD
|
0.1628(lbs); 0.074
|
| 019. |
3534013640
|
[2] |
STUD
|
0.1672(lbs); 0.076
|
| 019. |
H353013640
|
[2] |
STUD
|
0.1672(lbs); 0.076
|
| 020. |
0117351035
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 020. |
0151951030
|
[1] |
STUD
|
0.0550(lbs); 0.025
|
| 021. |
0117351235
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 021. |
0157451232
|
[4] |
STUD
|
0.0858(lbs); 0.039
|
| 022. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 023. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 024. |
3715013660
|
[2] |
NUT
|
0.0440(lbs); 0.020
|
| 024. |
3730014190
|
[3] |
NUT
|
0.0198(lbs); 0.009
|
| 025. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 026. |
3730013750
|
[1] |
SUPPORT RADIATOR RH
|
0.8360(lbs); 0.380
|
| 026. |
3534013750
|
[1] |
SUPPORT RADIATOR RH
|
0.7260(lbs); 0.330
|
| 027. |
3730013760
|
[1] |
SUPPORT RADIATOR LH
|
0.7920(lbs); 0.360
|
| 028. |
0113051020
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 029. |
1511172180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 030. |
1510872380
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 031. |
0551551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 032. |
1511172200
|
[4] |
WASHER
|
0.0286(lbs); 0.013
|
| 033. |
1511172190
|
[2] |
CUSHION
|
0.0352(lbs); 0.016
|
| 034. |
3530013810
|
[1] |
BUMPER
|
27.5000(lbs); 12.500
|
| 035. |
0117351225
|
[6] |
BOLT
|
0.0726(lbs); 0.033
|
| 036. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 037. |
3511471830
|
[4] |
COLLAR
|
0.1430(lbs); 0.065
|
| 037. |
3511071830
|
[4] |
COLLAR
|
0.1716(lbs); 0.078
|
| 038. |
3731013180
|
[4] |
SPACER
|
0.0770(lbs); 0.035
|
| 047. |
0217650120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
