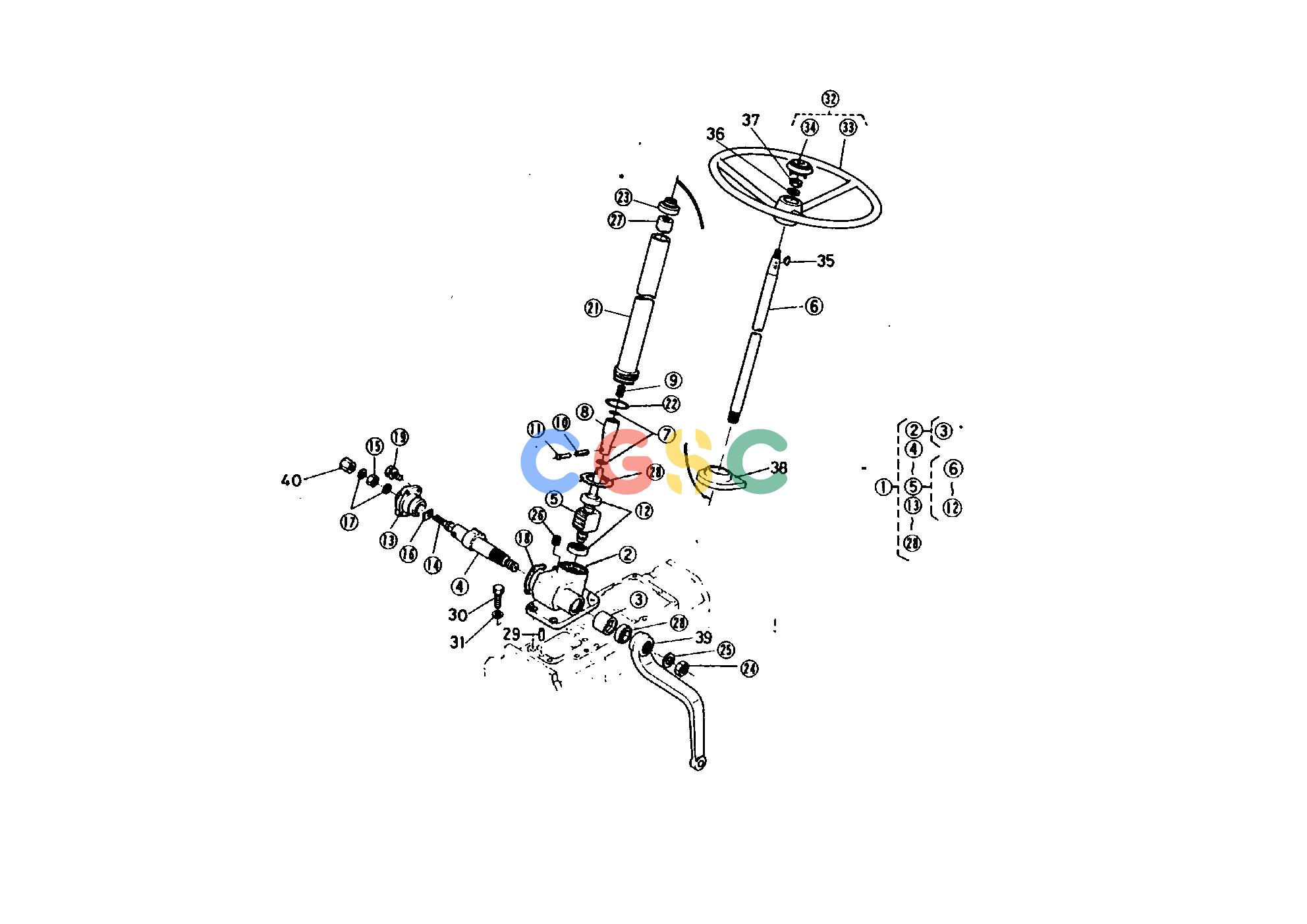

久保田零件查询270100 STEERING STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
899 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534016100
|
[1] |
ASSY STEERING
|
20.2400(lbs); 9.200
|
| 002. |
3534016110
|
[1] |
BOX GEAR
|
6.8200(lbs); 3.100
|
| 004. |
3220016120
|
[1] |
SHAFT SECTOR
|
2.0680(lbs); 0.940
|
| 005. |
3534016200
|
[1] |
ASSY BALL NUT
|
4.1800(lbs); 1.900
|
| 007. |
3534016420
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 009. |
3534016440
|
[1] |
SPRING COIL
|
0.0220(lbs); 0.010
|
| 010. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 011. |
3535066820
|
[1] |
RIVET
|
0.0066(lbs); 0.003
|
| 012. |
3220016220
|
[2] |
BEARING
|
0.1496(lbs); 0.068
|
| 013. |
3730016360
|
[1] |
COVER SIDE
|
1.1990(lbs); 0.545
|
| 014. |
3213016480
|
[1] |
SCREW ADJUSTING
|
0.0550(lbs); 0.025
|
| 015. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 016. |
3213016490
|
[1] |
SHIM ADJUSTING SCREW
|
0.0264(lbs); 0.012
|
| 017. |
0471400100
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 018. |
3220016370
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 019. |
0112050820
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 020. |
0950028408
|
[1] |
SEAL OIL
|
0.0176(lbs); 0.008
|
| 021. |
3534016300
|
[1] |
ASSY COLUMN
|
3.2230(lbs); 1.465
|
| 022. |
3534016350
|
[1] |
O RING
|
0.0220(lbs); 0.010
|
| 023. |
3730016390
|
[1] |
SEAL OIL
|
0.0660(lbs); 0.030
|
| 024. |
0217450220
|
[1] |
NUT
|
0.1210(lbs); 0.055
|
| 025. |
0451250220
|
[1] |
WASHER SPRING
|
0.0550(lbs); 0.025
|
| 026. |
0631210020
|
[1] |
PLUG
|
0.0352(lbs); 0.016
|
| 027. |
3534016520
|
[1] |
BUSH
|
0.0880(lbs); 0.040
|
| 028. |
3534016590
|
[1] |
NUT
|
0.0990(lbs); 0.045
|
| 029. |
3715027370
|
[2] |
PIN SPLIT
|
0.0198(lbs); 0.009
|
| 030. |
0117351028
|
[4] |
BOLT
|
0.0484(lbs); 0.022
|
| 031. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 032. |
3715016800
|
[1] |
ASSY WHEEL STEERING
|
5.0600(lbs); 2.300
|
| 034. |
3715016820
|
[1] |
CAP HANDLE
|
0.0572(lbs); 0.026
|
| 034. |
H371016800
|
[1] |
CAP HANDLE
|
0.0572(lbs); 0.026
|
| 035. |
0581100519
|
[1] |
KEY WOODRUFF
|
0.0088(lbs); 0.004
|
| 036. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 037. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 038. |
3730016850
|
[1] |
HOLDER POST
|
0.0550(lbs); 0.025
|
| 039. |
3780043930
|
[1] |
ARM PITMAN
|
3.4980(lbs); 1.590
|
| 040. |
3730016580
|
[1] |
NUT CAP
|
0.0220(lbs); 0.010
|
