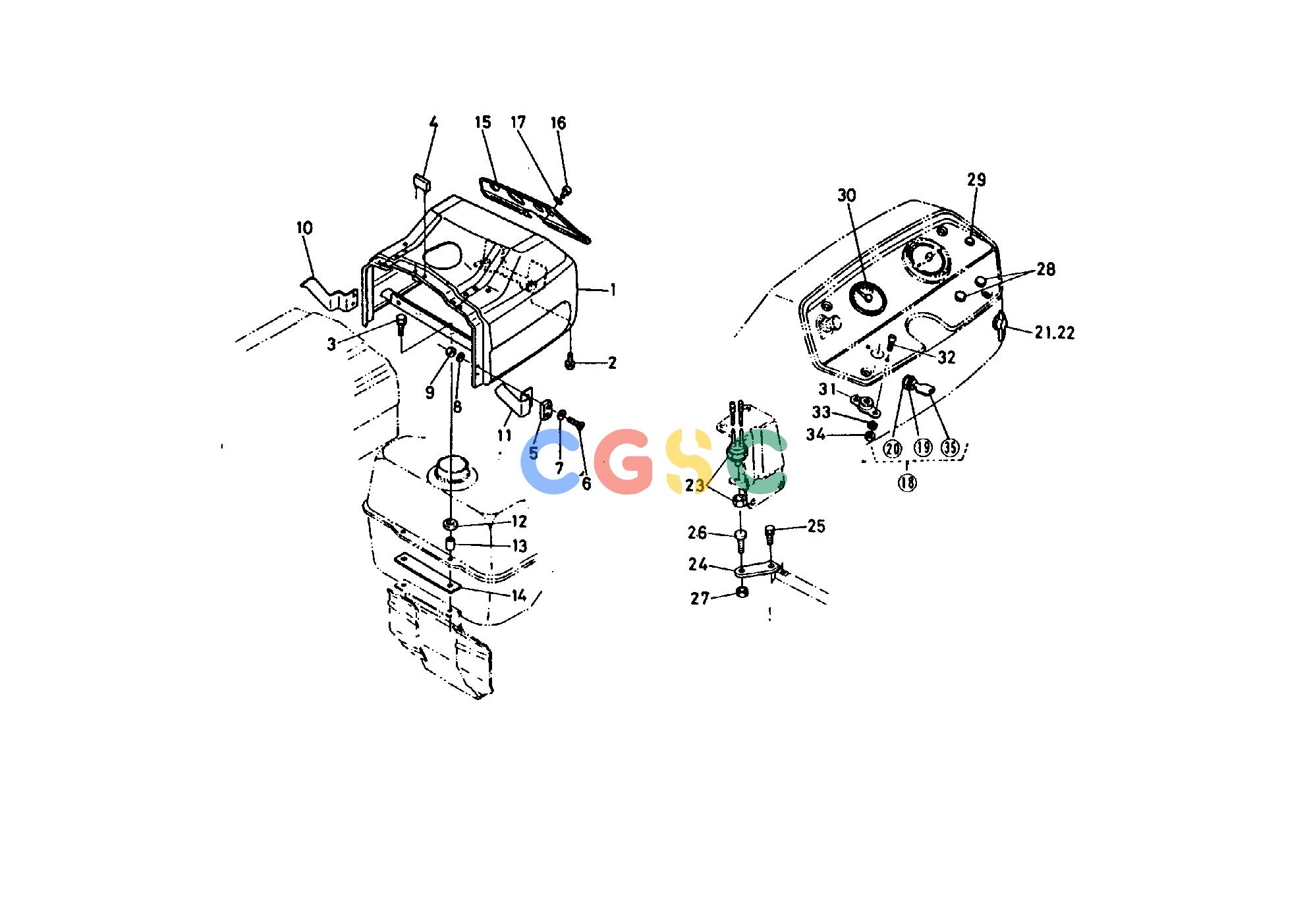

久保田零件查询460000 ELECTRICAL 1 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
578 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3730031110
|
[1] |
PANEL
|
0.0000(lbs); 0.000
|
| 002. |
0112050816
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 003. |
0112050830
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 004. |
3325183490
|
[3] |
CUSHION 1
|
0.0176(lbs); 0.008
|
| 005. |
3715018180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 006. |
0305450514
|
[4] |
SCREW
|
0.0088(lbs); 0.004
|
| 007. |
0401350050
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 008. |
0451250050
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 009. |
0205450050
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 010. |
3715031180
|
[1] |
GUIDE RH
|
0.1474(lbs); 0.067
|
| 011. |
3715031190
|
[1] |
GUIDE LH
|
0.1430(lbs); 0.065
|
| 012. |
3730035120
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 013. |
3730035150
|
[2] |
SPACER
|
0.0110(lbs); 0.005
|
| 014. |
3730035160
|
[1] |
CUSHION
|
0.0550(lbs); 0.025
|
| 015. |
3730031120
|
[1] |
DASHBOARD
|
1.1572(lbs); 0.526
|
| 016. |
3415031140
|
[4] |
SCREW
|
0.0198(lbs); 0.009
|
| 017. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 018. |
3715031820
|
[1] |
SWITCH MAIN
|
0.4180(lbs); 0.190
|
| 019. |
3715031910
|
[1] |
NUT RING
|
0.6600(lbs); 0.300
|
| 020. |
3715031920
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 021. |
3715032200
|
[1] |
SWITCH STARTER
|
0.6050(lbs); 0.275
|
| 022. |
3715032210
|
[1] |
ASSY KNOB
|
0.0440(lbs); 0.020
|
| 023. |
3715032240
|
[1] |
SWITCH SAFETY
|
0.2640(lbs); 0.120
|
| 024. |
3715034563
|
[1] |
PLATE SWITCH
|
0.0990(lbs); 0.045
|
| 025. |
0112050820
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
0195250830
|
[1] |
BOLT
|
0.0308(lbs); 0.014
|
| 027. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 028. |
3511032420
|
[2] |
PLUG
|
0.0044(lbs); 0.002
|
| 029. |
3415932610
|
[1] |
CAP WINKER LAMP
|
0.0000(lbs); 0.000
|
| 030. |
3426031300
|
[1] |
THERMOMETER WATER
|
0.3168(lbs); 0.144
|
| 031. |
1540165950
|
[1] |
LAMP GLOW
|
0.1166(lbs); 0.053
|
| 032. |
0305450510
|
[2] |
SCREW
|
0.0066(lbs); 0.003
|
| 033. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 034. |
0205450050
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 035. |
3715031810
|
[1] |
KEY MAIN SWITCH
|
0.0440(lbs); 0.020
|
