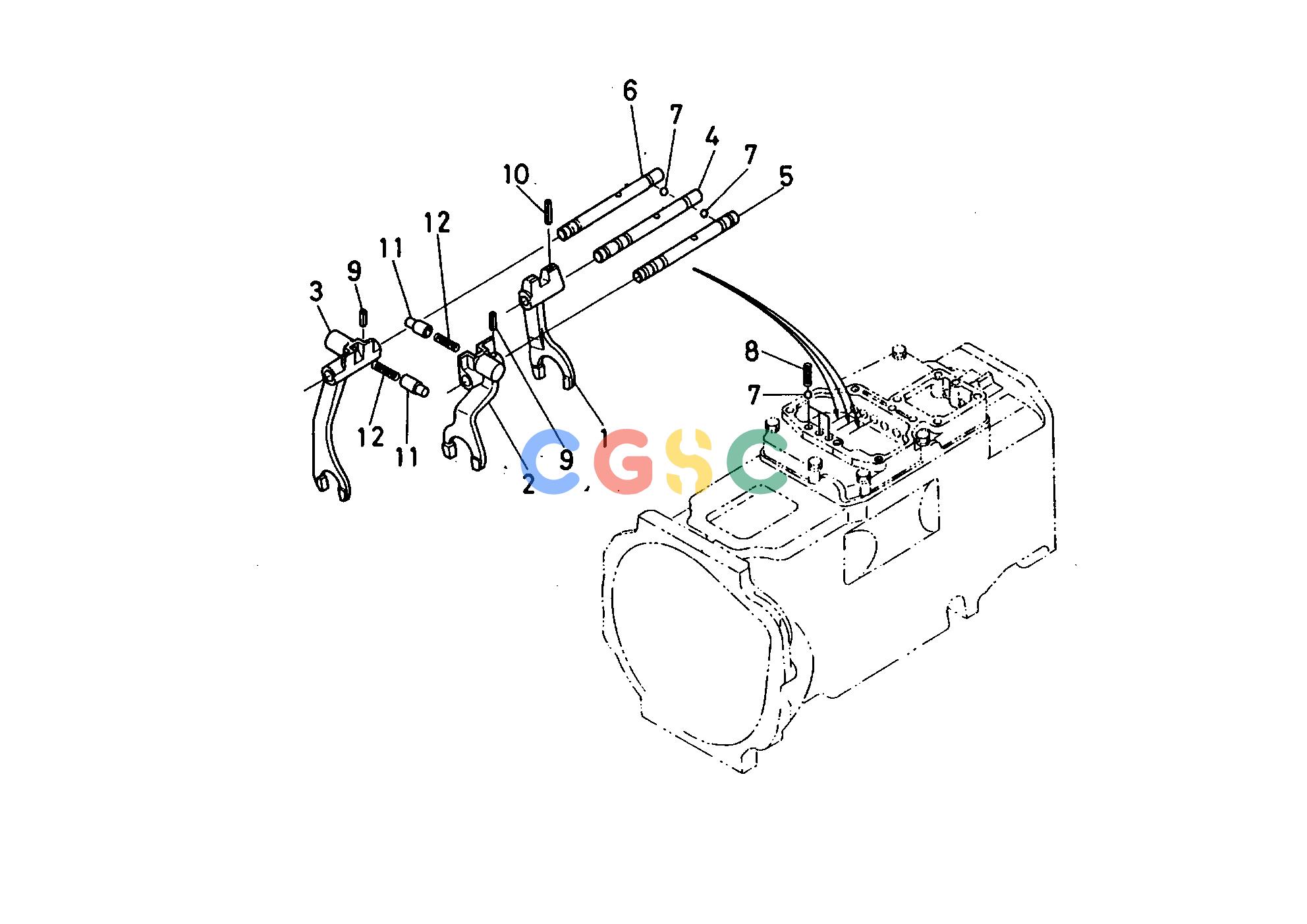

久保田零件查询360000 SPEED CHANGE SYSTEM 1 SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
777 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3715023510
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 001. |
3530523510
|
[1] |
FORK SHIFT
|
0.4180(lbs); 0.190
|
| 002. |
3715023520
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 002. |
3530523520
|
[1] |
FORK SHIFT
|
0.6160(lbs); 0.280
|
| 003. |
3715023530
|
[1] |
FORK SHIFT
|
0.0000(lbs); 0.000
|
| 003. |
3530523530
|
[1] |
FORK SHIFT
|
0.6380(lbs); 0.290
|
| 004. |
3715023540
|
[1] |
ROD FORK
|
0.2640(lbs); 0.120
|
| 005. |
3715023550
|
[1] |
ROD FORK
|
0.2640(lbs); 0.120
|
| 006. |
3715023570
|
[1] |
ROD FORK
|
0.7040(lbs); 0.320
|
| 007. |
0771501605
|
[5] |
BALL
|
0.0066(lbs); 0.003
|
| 008. |
6223118530
|
[3] |
SPRING STOPPER
|
0.0440(lbs); 0.020
|
| 009. |
0541100420
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 010. |
0541100430
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 011. |
3415023610
|
[2] |
PIECE NEUTRAL
|
0.0330(lbs); 0.015
|
| 012. |
3415023620
|
[2] |
SPRING
|
0.0066(lbs); 0.003
|
