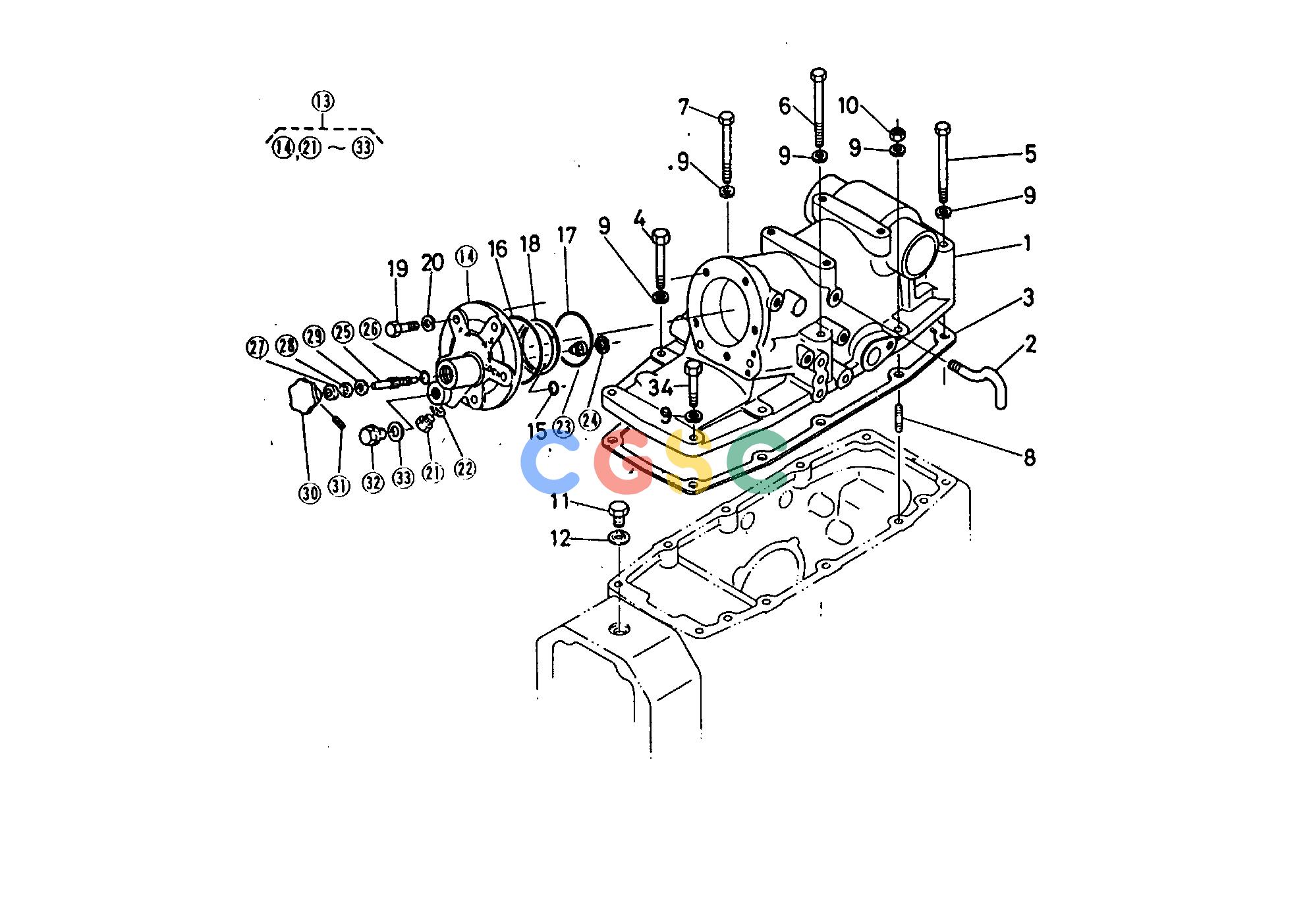

久保田零件查询530000 O/P CYLINDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534037110
|
[1] |
CYLINDER O/P
|
50.3800(lbs); 22.900
|
| 002. |
3426037270
|
[1] |
PIPE BREATHER
|
0.0660(lbs); 0.030
|
| 003. |
3715037120
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 004. |
0117351240
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
| 005. |
3426037180
|
[2] |
BOLT
|
0.2530(lbs); 0.115
|
| 006. |
0117351295
|
[1] |
BOLT
|
0.1892(lbs); 0.086
|
| 007. |
0117351201
|
[1] |
BOLT
|
0.2068(lbs); 0.094
|
| 008. |
0157451240
|
[2] |
STUD
|
0.0990(lbs); 0.045
|
| 009. |
0451250120
|
[10] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 010. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 011. |
0631145030
|
[1] |
PLUG
|
0.1320(lbs); 0.060
|
| 012. |
0471701700
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 013. |
3730037200
|
[1] |
ASSY COVER O/P CYL.
|
8.1400(lbs); 3.700
|
| 015. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 016. |
0481151000
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 017. |
0481050800
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 018. |
3730037260
|
[1] |
RING BACK UP
|
0.0044(lbs); 0.002
|
| 019. |
0117351240
|
[5] |
BOLT
|
0.0990(lbs); 0.045
|
| 020. |
0451250120
|
[5] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 021. |
3715036740
|
[1] |
PLUG
|
0.0550(lbs); 0.025
|
| 022. |
0472400100
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 023. |
3415037250
|
[1] |
COLLAR ADJUSTING
|
0.0220(lbs); 0.010
|
| 024. |
0461100180
|
[1] |
CIR-CLIP INTERNAL
|
0.0022(lbs); 0.001
|
| 025. |
3415037220
|
[1] |
SCREW ADJUSTING
|
0.0550(lbs); 0.025
|
| 026. |
0481000100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 027. |
0923008164
|
[1] |
SEAL OIL
|
0.0022(lbs); 0.001
|
| 028. |
3415037260
|
[1] |
CIR-CLIP INTERNAL
|
0.0022(lbs); 0.001
|
| 029. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 030. |
3415037230
|
[1] |
GRIP
|
0.0880(lbs); 0.040
|
| 031. |
0541100418
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 032. |
3715036730
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 033. |
3715036720
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 034. |
0117351255
|
[2] |
BOLT
|
0.1210(lbs); 0.055
|
