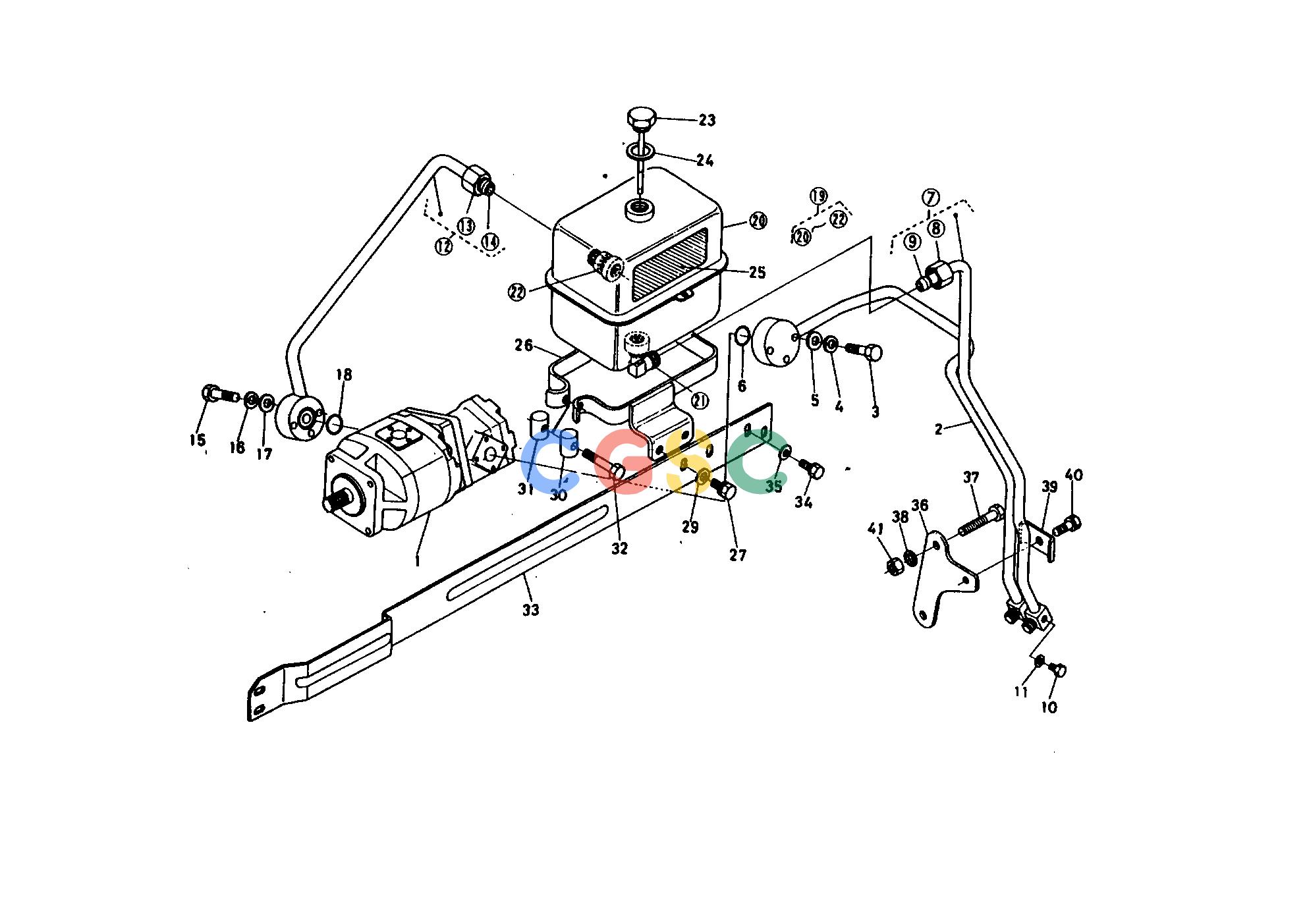

久保田零件查询570100 OIL TANK (BOOSTER TYPE POWER STEERING) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
846 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534045100
|
[1] |
ASSY PUMP OIL PRESSU
|
11.3520(lbs); 5.160
|
| 002. |
3534045310
|
[1] |
ASSY PIPE 1
|
1.2320(lbs); 0.560
|
| 003. |
0105350635
|
[3] |
BOLT
|
0.0198(lbs); 0.009
|
| 004. |
0451250060
|
[3] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 005. |
0401350060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 006. |
0481000200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 007. |
3534045320
|
[1] |
ASSY PIPE 2
|
0.6820(lbs); 0.310
|
| 010. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 011. |
0472400100
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 012. |
3534045330
|
[1] |
ASSY PIPE 3
|
0.9900(lbs); 0.450
|
| 015. |
0105350635
|
[3] |
BOLT
|
0.0198(lbs); 0.009
|
| 016. |
0451250060
|
[3] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 017. |
0401350060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 018. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 019. |
3534045360
|
[1] |
ASSY TANK OIL
|
3.5640(lbs); 1.620
|
| 019. |
3534045362
|
[1] |
ASSY TANK OIL
|
0.0000(lbs); 0.000
|
| 020. |
3781045220
|
[1] |
TANK OIL
|
2.9480(lbs); 1.340
|
| 020. |
3781045223
|
[1] |
TANK OIL
|
0.0000(lbs); 0.000
|
| 021. |
3781045230
|
[1] |
JOINT 2
|
0.0990(lbs); 0.045
|
| 022. |
3781045240
|
[1] |
JOINT 3
|
0.0770(lbs); 0.035
|
| 023. |
3781045260
|
[1] |
GAUGE PLUG
|
0.1672(lbs); 0.076
|
| 024. |
0471702000
|
[1] |
WASHER SEAL
|
0.0088(lbs); 0.004
|
| 025. |
3534045380
|
[1] |
LABEL
|
0.0110(lbs); 0.005
|
| 026. |
3781045280
|
[1] |
STAY TANK
|
0.5676(lbs); 0.258
|
| 027. |
0115350818
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 027. |
0112350818
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 028. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 029. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 030. |
3340063440
|
[1] |
PAD 1
|
0.0330(lbs); 0.015
|
| 031. |
3340063450
|
[1] |
PAD 2
|
0.0330(lbs); 0.015
|
| 032. |
0105350645
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 033. |
3534045370
|
[1] |
FRAME UPPER
|
2.1120(lbs); 0.960
|
| 034. |
0112050818
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 035. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 036. |
3534045340
|
[1] |
STAY PIPE
|
0.3740(lbs); 0.170
|
| 037. |
0117551265
|
[2] |
BOLT
|
0.1320(lbs); 0.060
|
| 038. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 039. |
3781045320
|
[1] |
CLAMP PIPE 2
|
0.0880(lbs); 0.040
|
| 040. |
0112050830
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 041. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
