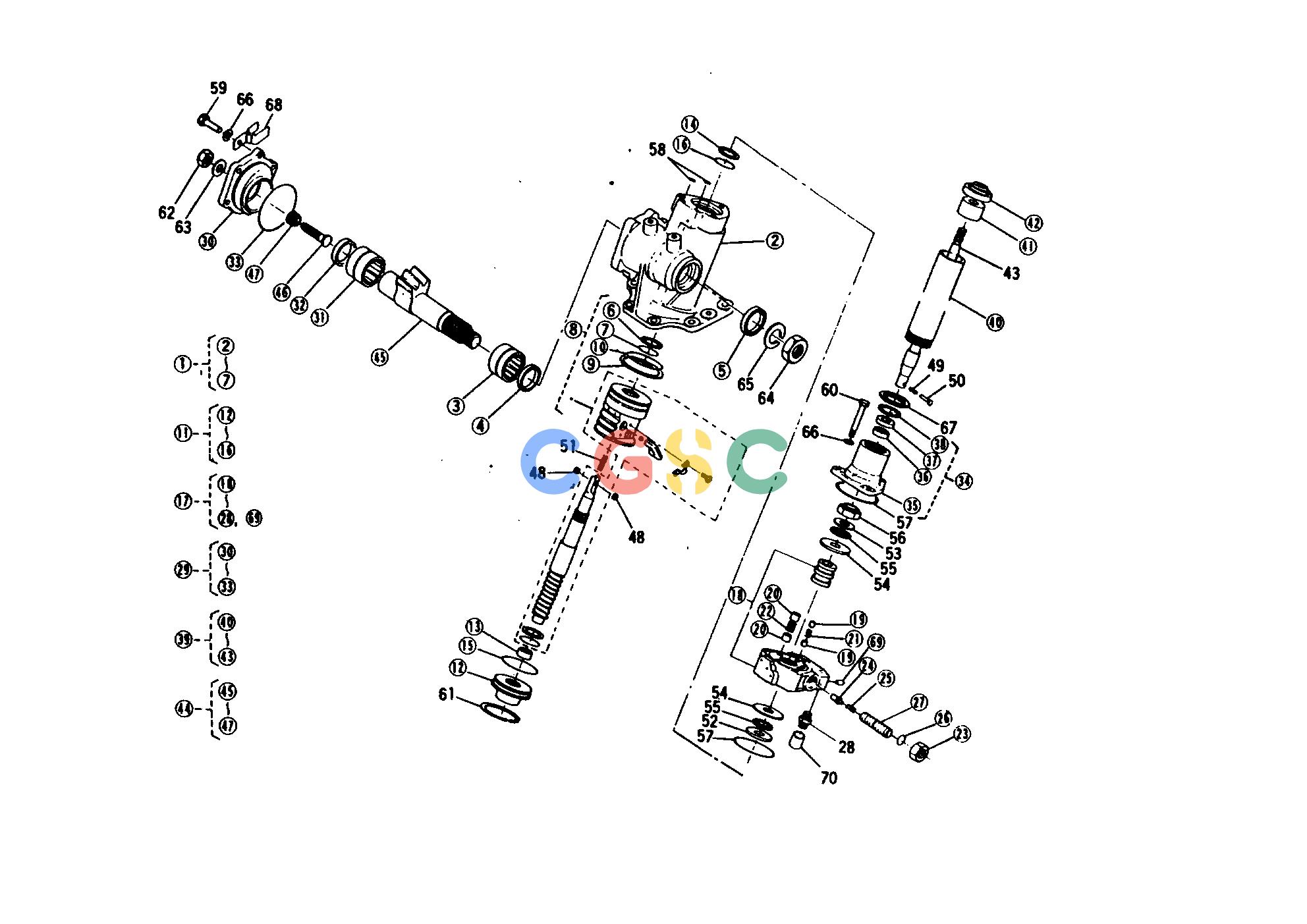

久保田零件查询810000 INTEGRAL TYPE POWER STEERING [SECTION PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
361 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3535016160
|
[1] |
ASSY BOX GEAR
|
15.4000(lbs); 7.000
|
| 003. |
3843066120
|
[1] |
BEARING NEEDLE
|
0.4290(lbs); 0.195
|
| 004. |
3843066130
|
[1] |
U PACKING
|
0.0110(lbs); 0.005
|
| 005. |
3843066140
|
[1] |
SEAL OIL
|
0.0440(lbs); 0.020
|
| 006. |
3843066150
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 007. |
0481110340
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 008. |
3535016200
|
[1] |
ASSY BALL NUT
|
6.6000(lbs); 3.000
|
| 009. |
3843066220
|
[1] |
RING
|
0.0110(lbs); 0.005
|
| 010. |
0481110600
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 011. |
3535016270
|
[1] |
ASSY COVER FRONT
|
0.7480(lbs); 0.340
|
| 012. |
3843066250
|
[1] |
COVER FRONT
|
0.7480(lbs); 0.340
|
| 013. |
3843066260
|
[1] |
BEARING NEEDLE
|
0.0330(lbs); 0.015
|
| 014. |
3843066150
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 015. |
0481150650
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 016. |
0481110340
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 017. |
3843066300
|
[1] |
ASSY VALVE
|
0.0000(lbs); 0.000
|
| 017. |
3535066300
|
[1] |
ASSY VALVE
|
4.4000(lbs); 2.000
|
| 019. |
3843066320
|
[4] |
PISTON 1
|
0.0220(lbs); 0.010
|
| 020. |
3843066330
|
[4] |
PISTON 2
|
0.0110(lbs); 0.005
|
| 021. |
3843066340
|
[2] |
SPRING
|
0.0220(lbs); 0.010
|
| 022. |
3843066350
|
[2] |
SPRING
|
0.0066(lbs); 0.003
|
| 023. |
3843066360
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 024. |
3843066370
|
[1] |
POPPET
|
0.0220(lbs); 0.010
|
| 025. |
3843066380
|
[1] |
SPRING
|
0.0330(lbs); 0.015
|
| 026. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 027. |
3843066390
|
[1] |
SCREW ADJUSTING
|
0.0880(lbs); 0.040
|
| 028. |
3843045230
|
[2] |
NIPPLE
|
0.0880(lbs); 0.040
|
| 029. |
3535016600
|
[1] |
ASSY COVER SIDE
|
3.0030(lbs); 1.365
|
| 030. |
3843066470
|
[1] |
COVER SIDE
|
2.6840(lbs); 1.220
|
| 031. |
3843066480
|
[1] |
BEARING NEEDLE
|
0.2640(lbs); 0.120
|
| 032. |
3843066130
|
[1] |
U PACKING
|
0.0110(lbs); 0.005
|
| 033. |
0481150800
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 034. |
3535016400
|
[1] |
ASSY COVER REAR
|
1.8700(lbs); 0.850
|
| 035. |
3843066420
|
[1] |
COVER REAR
|
1.7820(lbs); 0.810
|
| 036. |
3843066440
|
[1] |
BEARING NEEDLE
|
0.0330(lbs); 0.015
|
| 037. |
3843066450
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 038. |
0461100320
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 039. |
3535016500
|
[1] |
ASSY COLUMN
|
2.0900(lbs); 0.950
|
| 040. |
3843066510
|
[1] |
COLUMN
|
1.9360(lbs); 0.880
|
| 041. |
3824016520
|
[1] |
BUSH
|
0.0880(lbs); 0.040
|
| 042. |
3824016390
|
[1] |
SEAL OIL
|
0.0660(lbs); 0.030
|
| 043. |
3843066520
|
[1] |
ASSY SHAFT STEERING
|
1.2100(lbs); 0.550
|
| 044. |
3535016700
|
[1] |
ASSY SHAFT SECTOR
|
4.5980(lbs); 2.090
|
| 045. |
3843066710
|
[1] |
SHAFT SECTOR
|
4.4000(lbs); 2.000
|
| 046. |
3843066750
|
[1] |
SCREW ADJUSTING
|
0.1540(lbs); 0.070
|
| 047. |
3843066760
|
[1] |
ADJUSTOR
|
0.0330(lbs); 0.015
|
| 048. |
3824016530
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 049. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 049. |
0541100518
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 050. |
3535066820
|
[1] |
RIVET
|
0.0066(lbs); 0.003
|
| 051. |
3824016490
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 052. |
3843066610
|
[1] |
RING DRIVE
|
0.1100(lbs); 0.050
|
| 053. |
3843066620
|
[1] |
RING DRIVE
|
0.0440(lbs); 0.020
|
| 054. |
3843066630
|
[2] |
RING DRIVE
|
0.1320(lbs); 0.060
|
| 055. |
3843066640
|
[2] |
BEARING NEEDLE
|
0.0220(lbs); 0.010
|
| 056. |
3843066650
|
[1] |
NUT
|
0.1430(lbs); 0.065
|
| 057. |
0481110700
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 058. |
0481100800
|
[2] |
O RING
|
0.0198(lbs); 0.009
|
| 059. |
0117351028
|
[6] |
BOLT
|
0.0484(lbs); 0.022
|
| 060. |
3843066660
|
[3] |
BOLT
|
0.1100(lbs); 0.050
|
| 061. |
0461100720
|
[1] |
CIR-CLIP EXTERNAL
|
0.0396(lbs); 0.018
|
| 062. |
3843066770
|
[1] |
NUT
|
0.0440(lbs); 0.020
|
| 063. |
3843066780
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 064. |
3843066720
|
[1] |
NUT
|
0.3190(lbs); 0.145
|
| 065. |
3843066730
|
[1] |
WASHER SPRING
|
0.1100(lbs); 0.050
|
| 066. |
0451250100
|
[9] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 067. |
3843066740
|
[1] |
NUT
|
0.0440(lbs); 0.020
|
| 068. |
3535016780
|
[1] |
CLIP
|
0.0396(lbs); 0.018
|
| 069. |
3843066790
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 070. |
3843066800
|
[2] |
PLUG LAPPING
|
0.0220(lbs); 0.010
|
