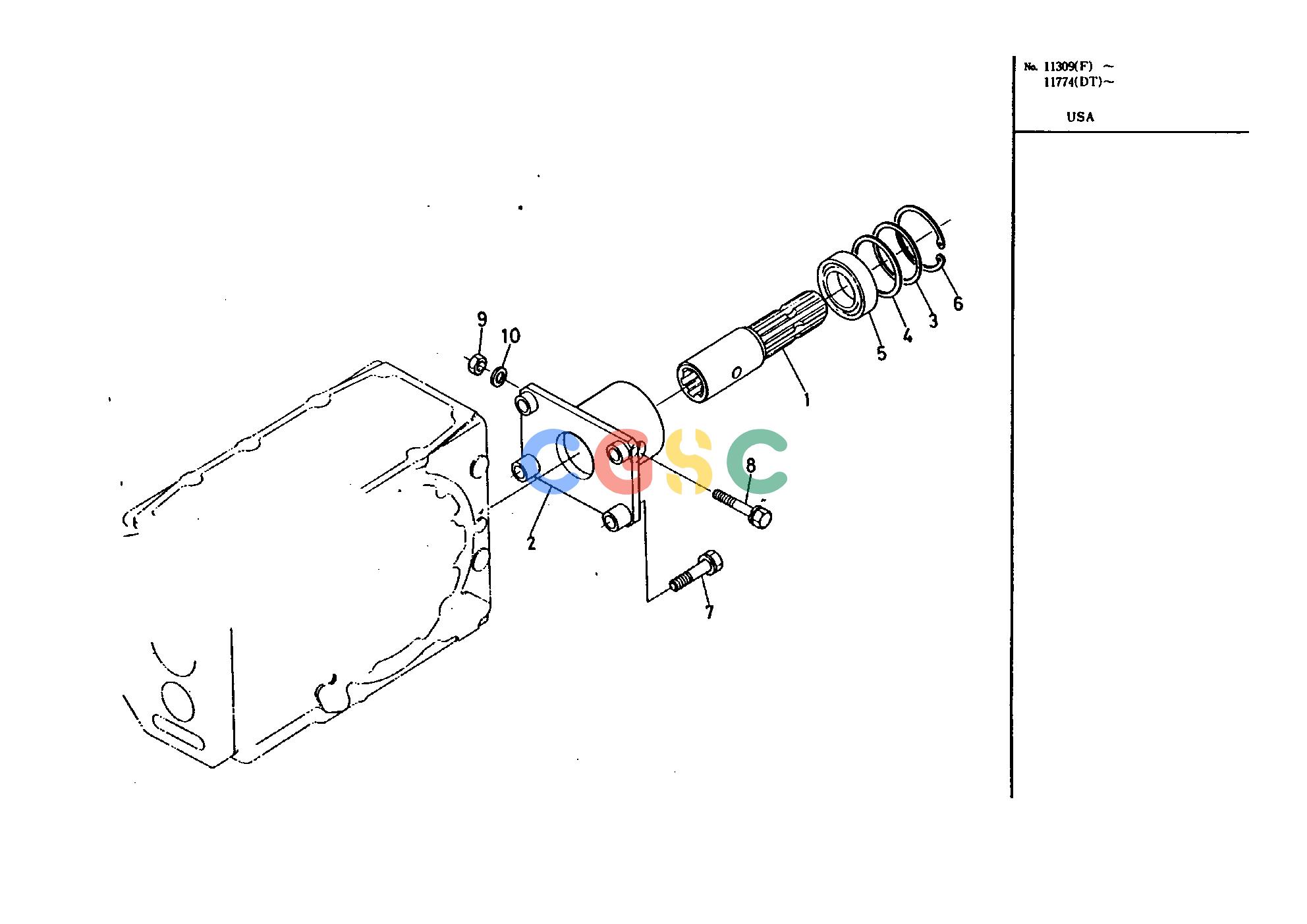

久保田零件查询620000 EXTENSION POWER TAKE-OFF (OPTION) DRAWBAR AND HITCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3532099010
|
[1] |
SHAFT EXTENSION PTO
|
3.2120(lbs); 1.460
|
| 002. |
3534025500
|
[1] |
BRACKET PTO
|
6.6000(lbs); 3.000
|
| 003. |
3532099050
|
[1] |
WASHER 1
|
0.0880(lbs); 0.040
|
| 004. |
3532099060
|
[1] |
WASHER 2
|
0.0220(lbs); 0.010
|
| 005. |
0814106009
|
[1] |
BEARING BALL
|
0.5104(lbs); 0.232
|
| 006. |
0461100750
|
[1] |
CIR-CLIP INTERNAL
|
0.0418(lbs); 0.019
|
| 007. |
0113351250
|
[4] |
BOLT
|
0.1210(lbs); 0.055
|
| 008. |
0112350860
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 009. |
4101151510
|
[1] |
NUT
|
0.0132(lbs); 0.006
|
| 010. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
