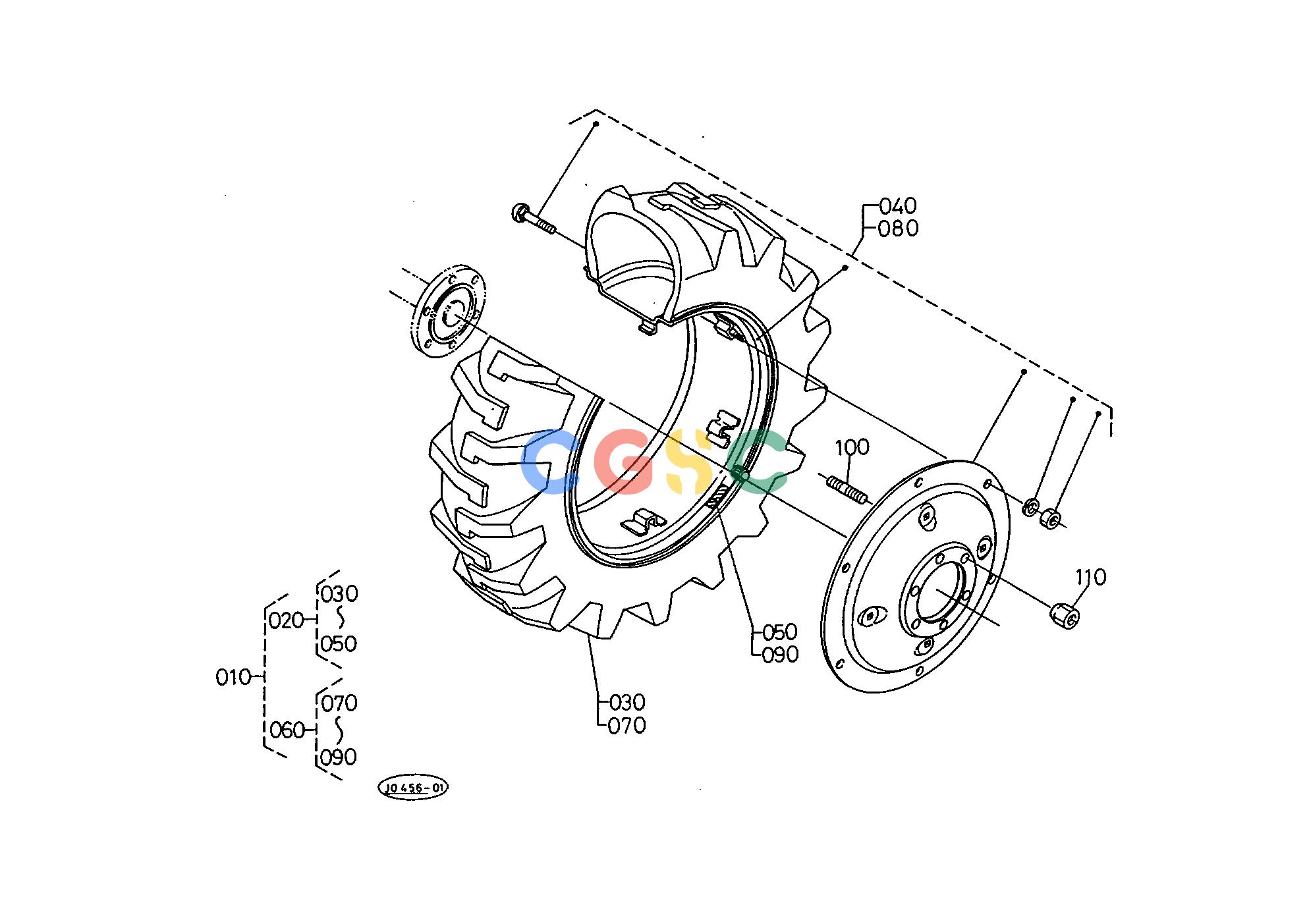

久保田零件查询T07206 REAR WHEEL (17.5L-24 R4) [A] REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
781 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3255045400
|
[1] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
3255045440
|
[1] |
TIRE RH
|
0.0000(lbs); 0.000
|
| 030. |
3255045410
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
3255040720
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 050. |
3255045430
|
[1] |
LABEL RH
|
0.0000(lbs); 0.000
|
| 060. |
3255045450
|
[1] |
TIRE LH
|
0.0000(lbs); 0.000
|
| 070. |
3255045410
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 080. |
3255040720
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 090. |
3255045460
|
[1] |
LABEL LH
|
0.0000(lbs); 0.000
|
| 100. |
9999999999
|
[12] |
STUD
|
0.0000(lbs); 0.000
|
| 110. |
9999999999
|
[12] |
NUT
|
0.0000(lbs); 0.000
|
