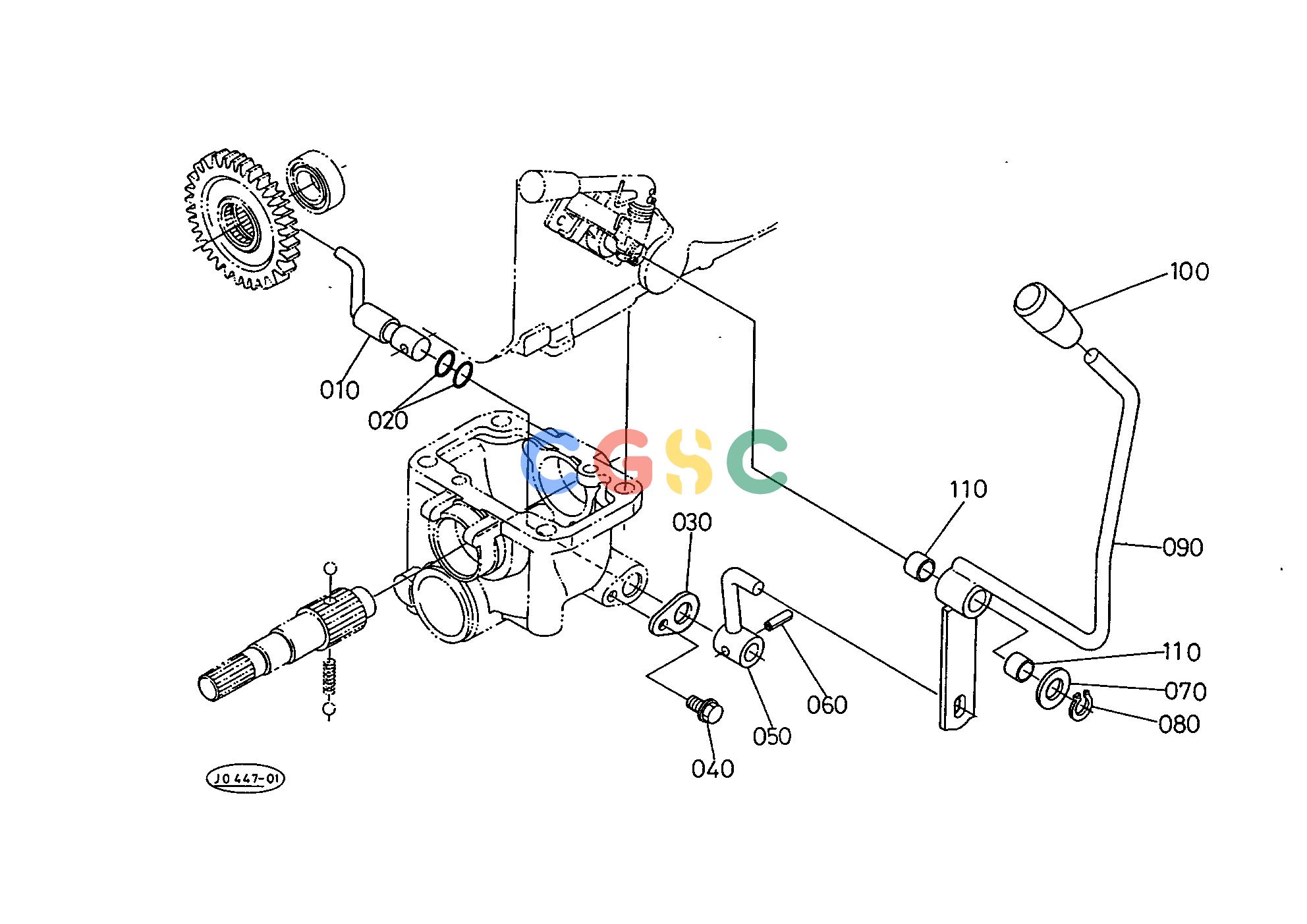

久保田零件查询T08602 FRONT WHEEL DRIVE LEVER [WITH I.MID PTO] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
427 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135344310
|
[1] |
LEVER SHIFT
|
0.3520(lbs); 0.160
|
| 020. |
0481100150
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
3135344330
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 040. |
0175450816
|
[1] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 050. |
3243044360
|
[1] |
LEVER CHANGE
|
0.3190(lbs); 0.145
|
| 060. |
0541100625
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 070. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 080. |
0461200180
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
3243044384
|
[1] |
ASSY LEVER F.DRIVE
|
1.7050(lbs); 0.775
|
| 100. |
0691400120
|
[1] |
GRIP LEVER
|
0.0396(lbs); 0.018
|
| 110. |
0851101810
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
