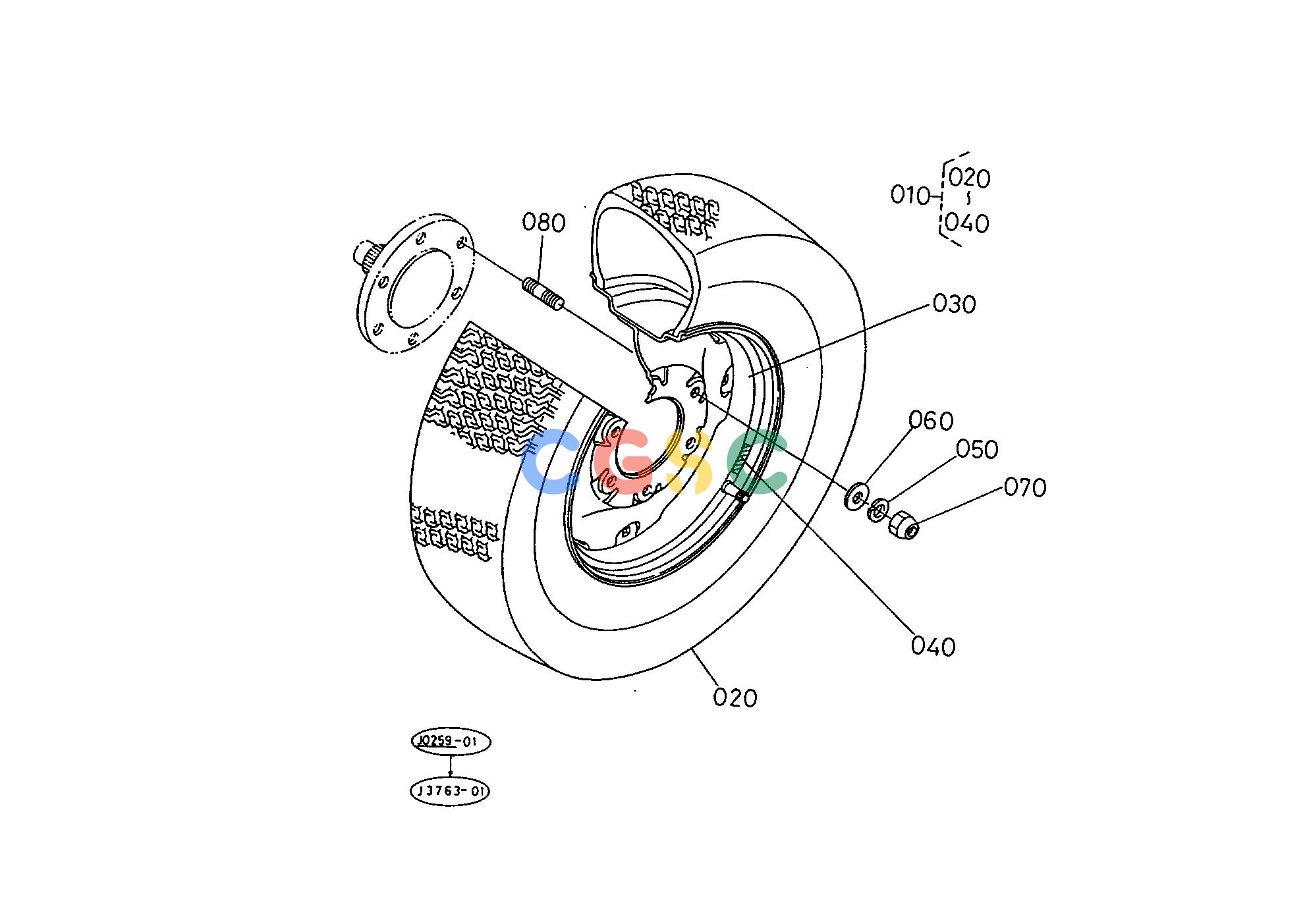

久保田零件查询T08705 FRONT WHEEL (27X8.50-15 NHS) [A] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3507011500
|
[2] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
6700217630
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 030. |
3507011550
|
[2] |
WHEEL
|
24.2000(lbs); 11.000
|
| 040. |
3507011560
|
[2] |
LABEL TIRE
|
0.0000(lbs); 0.000
|
| 050. |
0451250140
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 060. |
0401350140
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 070. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 080. |
0151751428
|
[12] |
STUD
|
0.1100(lbs); 0.050
|
