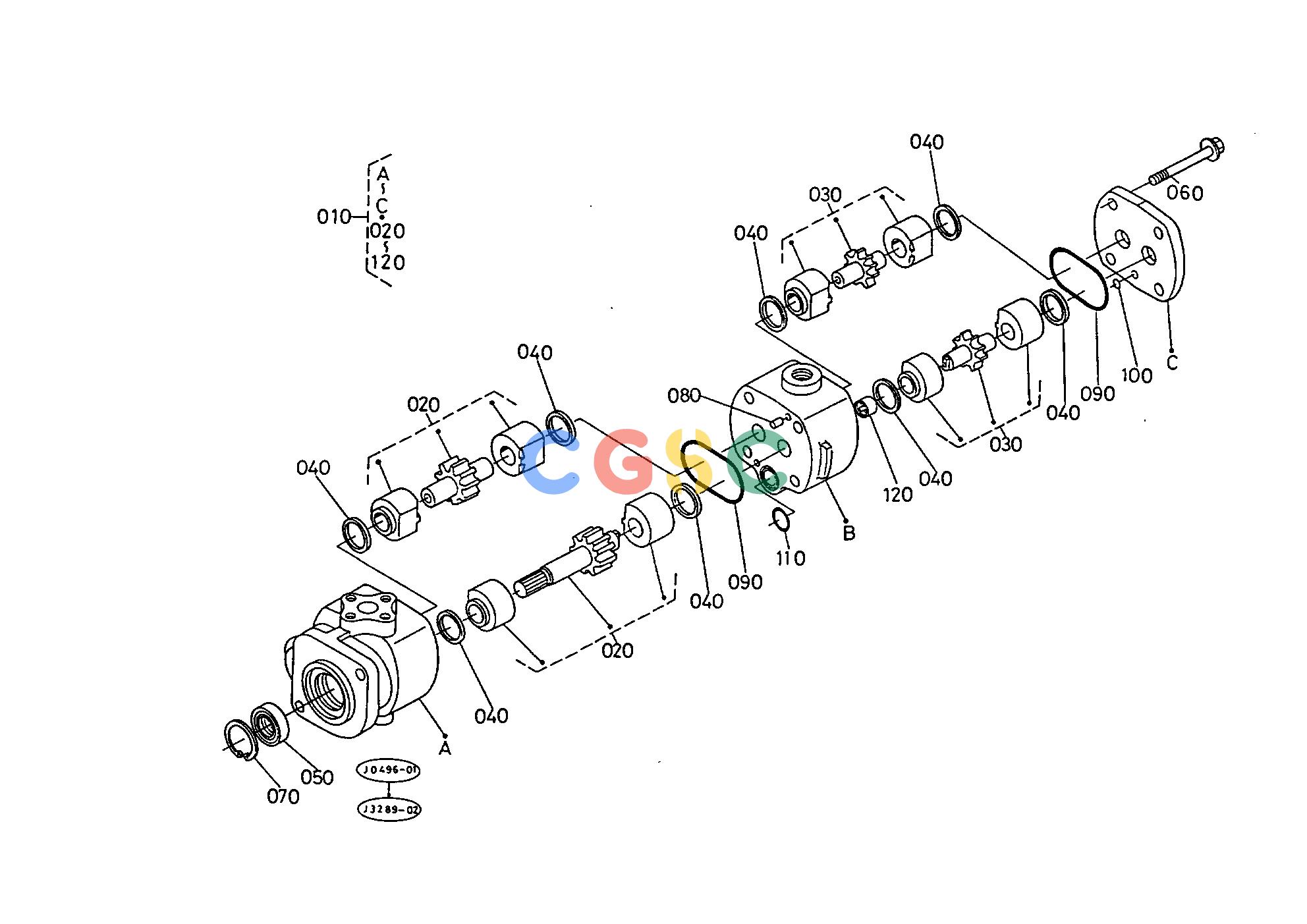

Pos.	Part No	Qty	Parts name	Comments
010.	3507076100	[1]	ASSY PUMP HYDRAULIC	W/O WET CLUTCH 6.6000(lbs); 3.000
010.	3508076300	[1]	ASSY PUMP HYDRAULIC	WITH WET CLUTCH; <=50198 6.6000(lbs); 3.000
010.	3508076100	[1]	ASSY PUMP HYDRAULIC	WITH WET CLUTCH; =>50199 6.8200(lbs); 3.100
020.	3139176302	[1]	COMP.GEAR HYD.PUMP	W/O WET CLUTCH 1.1220(lbs); 0.510
020.	3508076400	[1]	COMP.GEAR HYD.PUMP	WITH WET CLUTCH 0.4620(lbs); 0.210
030.	3508076500	[1]	COMP.GEAR HYD.PUMP	WITH WET CLUTCH; =>50199 0.6380(lbs); 0.290
030.	3139176502	[1]	COMP.GEAR HYD.PUMP	WITH WET CLUTCH; <=50198 0.6380(lbs); 0.290
040.	3818076172	[8]	SQUARE RING	0.0044(lbs); 0.002
050.	3138176390	[1]	SEAL OIL	0.0220(lbs); 0.010
060.	0175451090	[4]	BOLT FLANGE	WITH WET CLUTCH; =>50199 0.0770(lbs); 0.035
060.	3139176480	[4]	BOLT FLANGE	WITH WET CLUTCH; <=50198 0.1430(lbs); 0.065
070.	0461100300	[1]	CIR-CLIP INTERNAL	0.0088(lbs); 0.004
080.	0501200612	[2]	PIN STRAIGHT	0.0066(lbs); 0.003
090.	0481050550	[2]	O RING	0.0044(lbs); 0.002
100.	0481000050	[1]	O RING	0.0022(lbs); 0.001
110.	0481000180	[1]	O RING	0.0022(lbs); 0.001
120.	3741076470	[1]	COUPLING	0.0220(lbs); 0.010
