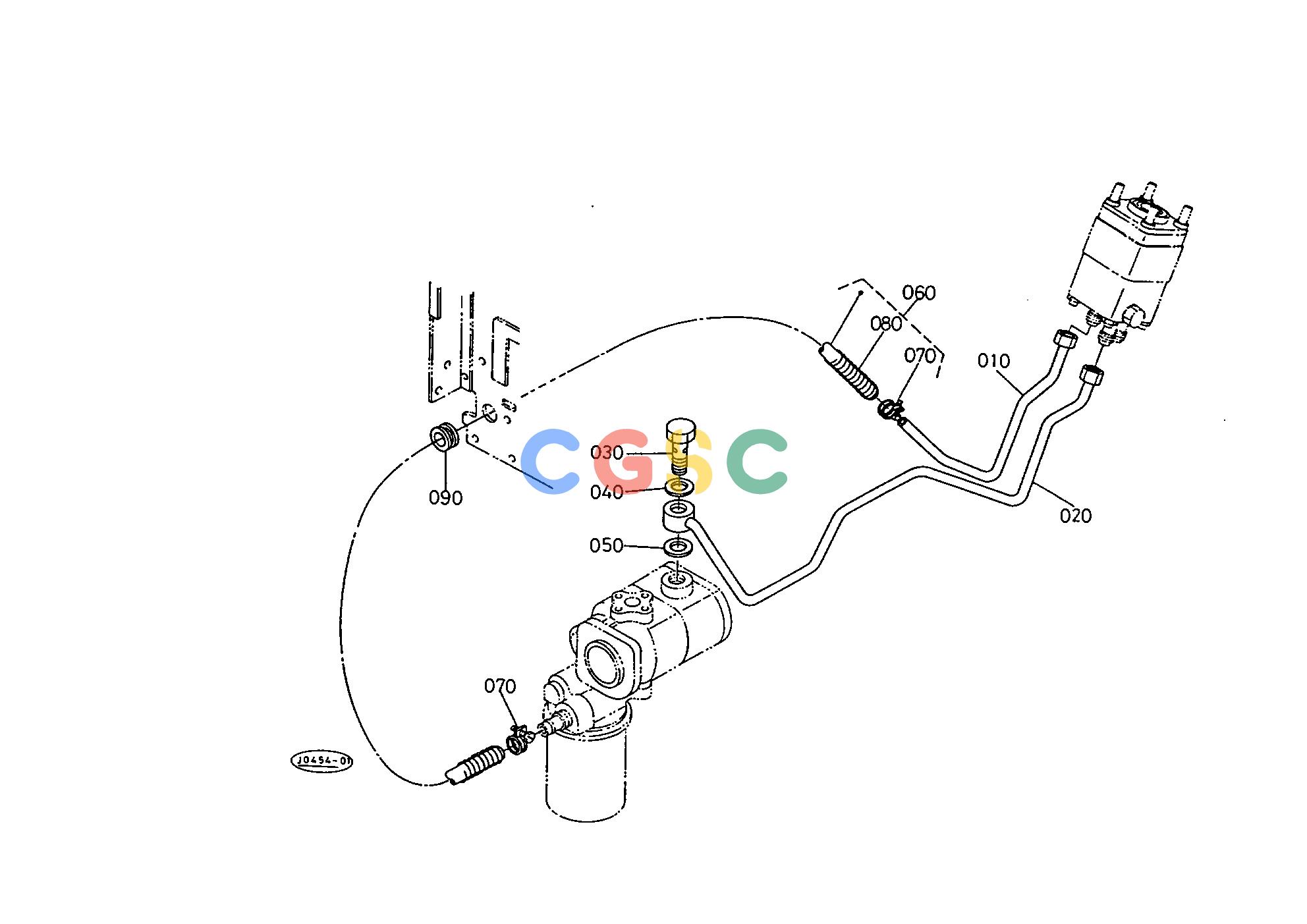

久保田零件查询T10102 HYDRAULIC OIL LINE ## S.No.;>=50199 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508045180
|
[1] |
COMP.PIPE OUTLET
|
0.1804(lbs); 0.082
|
| 020. |
3508045210
|
[1] |
COMP.PIPE INLET
|
0.4840(lbs); 0.220
|
| 030. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 040. |
6711137180
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 050. |
6740136720
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 060. |
3403033530
|
[1] |
ASSY HOSE RETURN
|
0.6380(lbs); 0.290
|
| 070. |
1510973360
|
[2] |
BAND PIPE
|
0.0220(lbs); 0.010
|
| 080. |
3135145330
|
[1] |
SPRING PROTECTOR
|
0.1210(lbs); 0.055
|
| 090. |
3253031180
|
[1] |
RING RUBBER
|
0.0110(lbs); 0.005
|
