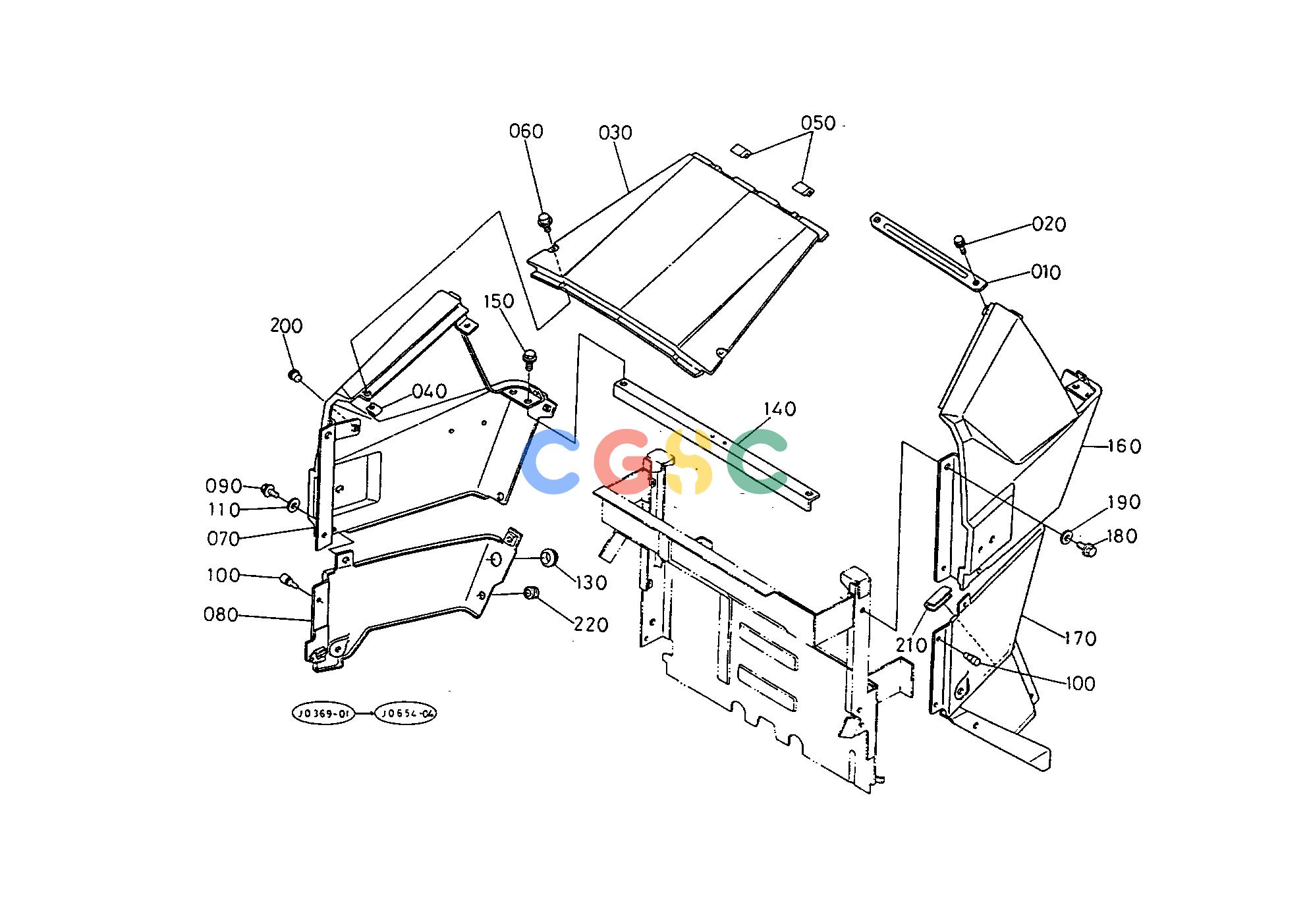

久保田零件查询T12300 REAR HOOD (REAR BONNET) HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135118890
|
[1] |
REINFORCE
|
0.0880(lbs); 0.040
|
| 020. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 030. |
3040018770
|
[1] |
ROOF REAR
|
1.0340(lbs); 0.470
|
| 040. |
3824029250
|
[2] |
NUT SPRING
|
0.0110(lbs); 0.005
|
| 050. |
3135118780
|
[2] |
RUBBER
|
0.1760(lbs); 0.080
|
| 060. |
0175450612
|
[2] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 070. |
3248018810
|
[1] |
COMP BONNET REAR RH
|
2.3540(lbs); 1.070
|
| 080. |
3040018840
|
[1] |
COMP.BONNET REAR RH
|
0.8250(lbs); 0.375
|
| 090. |
0175450612
|
[3] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 100. |
3824018080
|
[3] |
CUSHION BONNET
|
0.0022(lbs); 0.001
|
| 110. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 130. |
3215029180
|
[1] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
| 140. |
3135118884
|
[1] |
SUPPORT BONNET
|
0.4400(lbs); 0.200
|
| 150. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 160. |
3040018820
|
[1] |
COMP.BONNET REAR LH
|
2.4200(lbs); 1.100
|
| 170. |
3040018850
|
[1] |
COMP BONNET REAR LH
|
1.7160(lbs); 0.780
|
| 180. |
0175450612
|
[3] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 190. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 200. |
3824029570
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
| 210. |
3715013920
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 220. |
3135118830
|
[1] |
CUSHION
|
0.0330(lbs); 0.015
|
