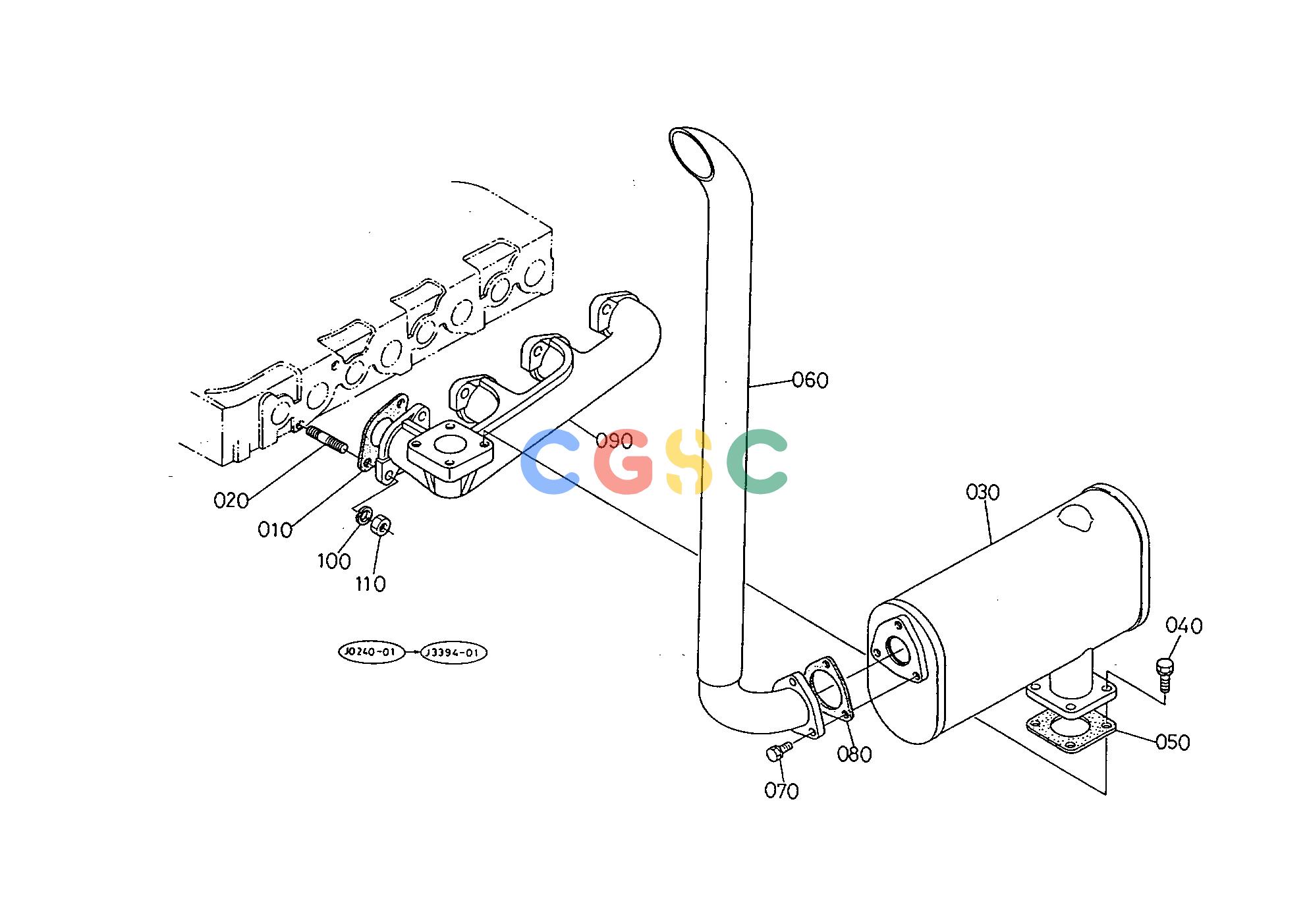

久保田零件查询T01302 EXHAUST MANIFOLD AND MUFFLER ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1552112350
|
[4] |
GASKET EX-MANIFOLD
|
0.0000(lbs); 0.000
|
| 020. |
1522191530
|
[8] |
STUD
|
0.0242(lbs); 0.011
|
| 030. |
3508088710
|
[1] |
MUFFLER
|
12.7600(lbs); 5.800
|
| 040. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 050. |
1547112230
|
[1] |
GASKET MUFFLER
|
0.0000(lbs); 0.000
|
| 060. |
3508088770
|
[1] |
PIPE MUFFLER
|
4.1140(lbs); 1.870
|
| 070. |
0112350820
|
[3] |
BOLT
|
0.0242(lbs); 0.011
|
| 080. |
1738112380
|
[1] |
GASKET MUFFLER
|
0.0000(lbs); 0.000
|
| 090. |
1737712310
|
[1] |
MANIFOLD EXHAUST
|
0.0000(lbs); 0.000
|
| 100. |
0451250080
|
[8] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 110. |
0215650080
|
[8] |
NUT
|
0.0088(lbs); 0.004
|
