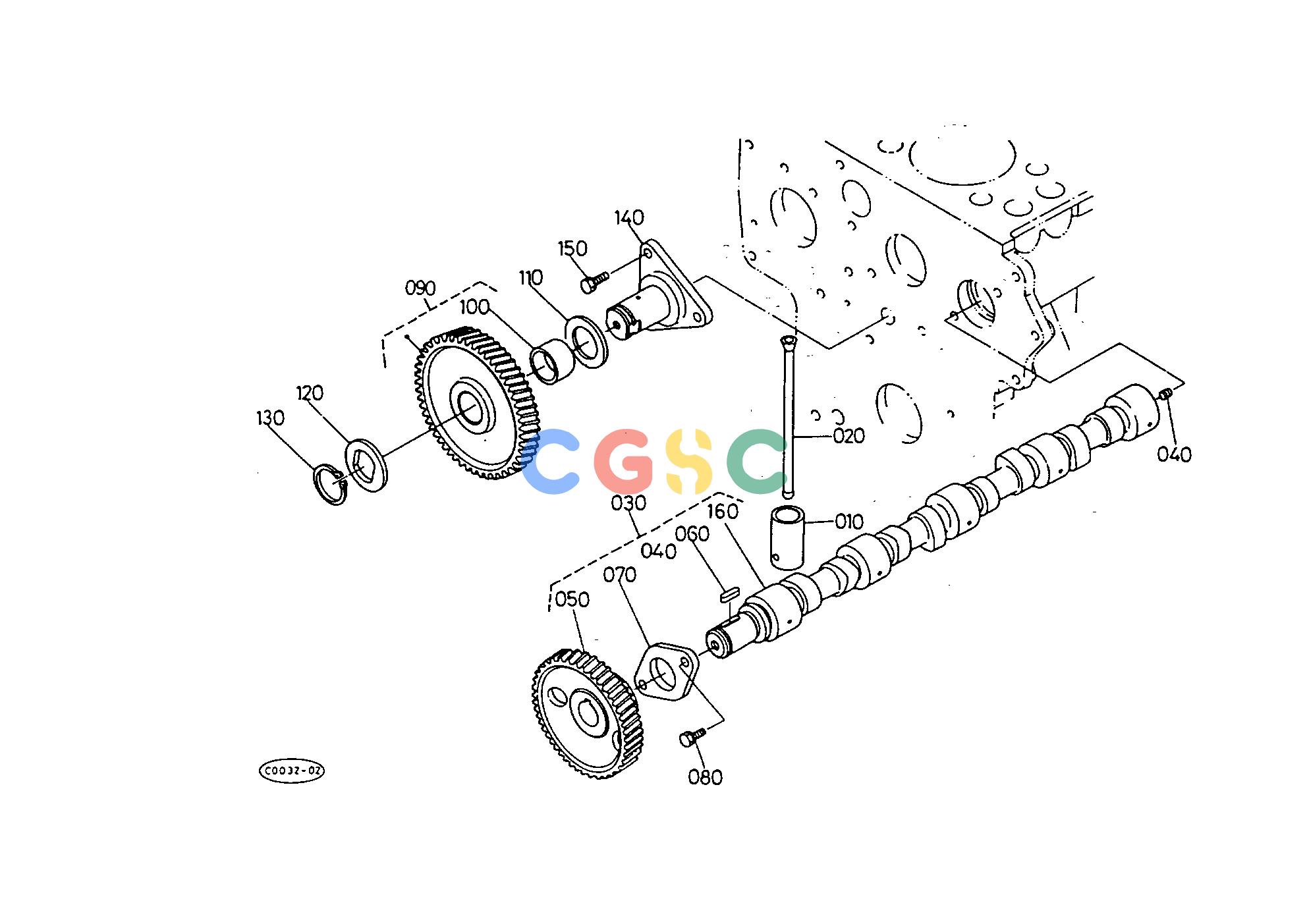

久保田零件查询T01402 CAMSHAFT ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
610 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1522115550
|
[8] |
TAPPET
|
0.0000(lbs); 0.000
|
| 020. |
1522115110
|
[8] |
PUSH ROD
|
0.1100(lbs); 0.050
|
| 030. |
1734516010
|
[1] |
ASSY CAMSHAFT
|
9.2400(lbs); 4.200
|
| 040. |
1552193610
|
[1] |
SCREW SET
|
0.0044(lbs); 0.002
|
| 050. |
1552116510
|
[1] |
GEAR CAMSHAFT
|
1.8700(lbs); 0.850
|
| 060. |
0571200720
|
[1] |
KEY FEATHER
|
0.0176(lbs); 0.008
|
| 070. |
1522116270
|
[1] |
STOPPER CAMSHAFT
|
0.1606(lbs); 0.073
|
| 080. |
0112350818
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 090. |
1733124010
|
[1] |
COMP.GEAR IDLE
|
2.4420(lbs); 1.110
|
| 100. |
1733124980
|
[1] |
BUSH IDLE GEAR
|
0.1320(lbs); 0.060
|
| 110. |
1733124360
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 120. |
1733124370
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 130. |
1545195390
|
[1] |
CIR-CLIP EXTERNAL
|
0.0154(lbs); 0.007
|
| 140. |
1733124250
|
[1] |
SHAFT IDLE GEAR
|
1.2650(lbs); 0.575
|
| 150. |
0112350818
|
[3] |
BOLT
|
0.0264(lbs); 0.012
|
| 160. |
1734516150
|
[1] |
CAMSHAFT
|
5.0600(lbs); 2.300
|
