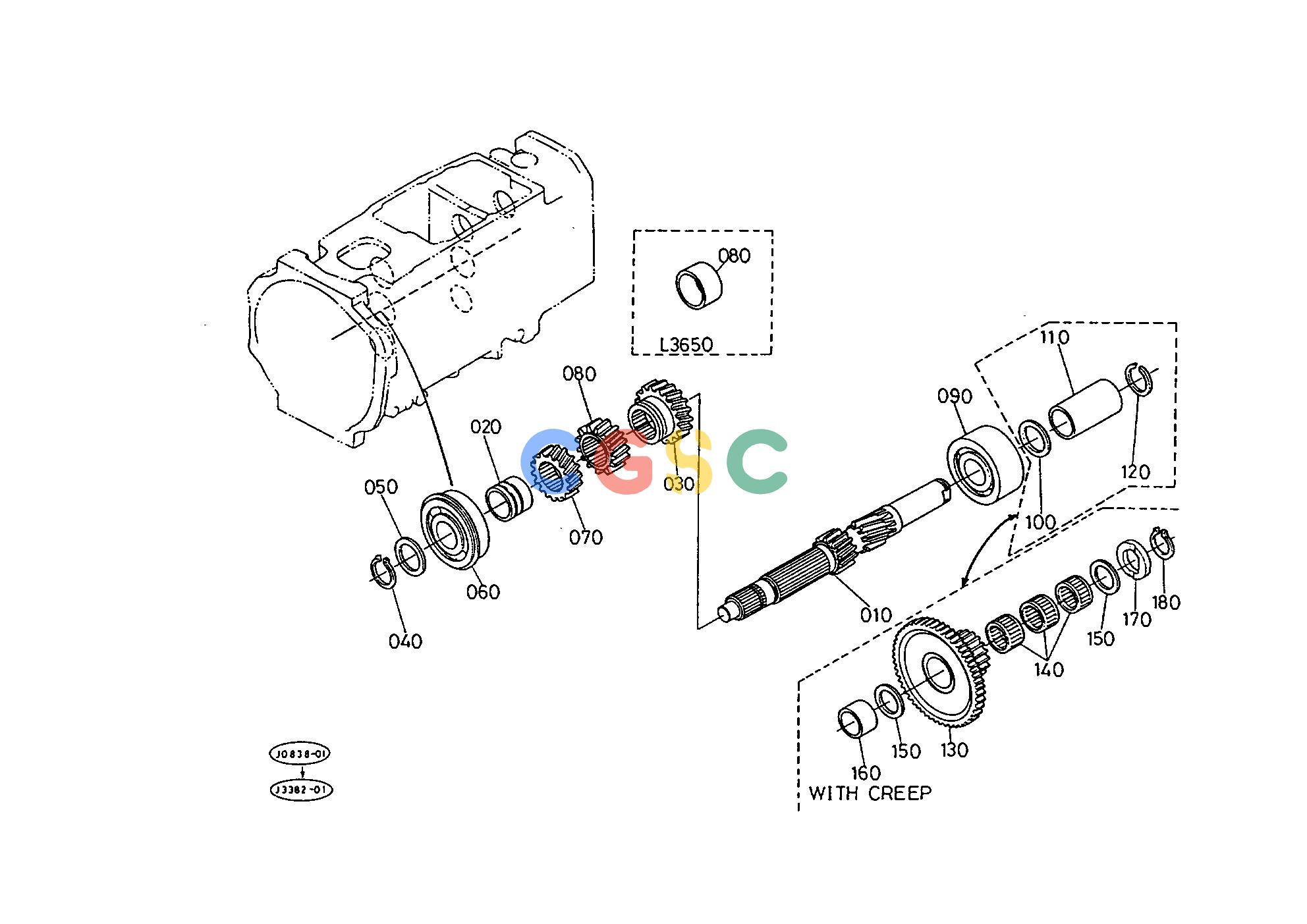

Pos.	Part No	Qty	Parts name	Comments
010.	3508021510	[1]	SHAFT MAIN	3.1130(lbs); 1.415
020.	3508021560	[1]	COLLAR	0.1100(lbs); 0.050
030.	3243021523	[1]	GEAR	23T 0.7590(lbs); 0.345
040.	3715021551	[1]	CIR-CLIP EXTERNAL	0.0110(lbs); 0.005
050.	3415021560	[1]	WASHER	0.0110(lbs); 0.005
060.	3530041280	[1]	BEARING BALL	0.5170(lbs); 0.235
070.	3243021542	[1]	GEAR	18T 0.4290(lbs); 0.195
080.	3243021530	[1]	GEAR(SC)	16T 0.3740(lbs); 0.170
090.	3508021600	[1]	BEARING BALL	0.6930(lbs); 0.315
100.	3415021560	[1]	WASHER	W/O CREEP 0.0110(lbs); 0.005
110.	3243021600	[1]	COLLAR(SC)	W/O CREEP 0.3300(lbs); 0.150
120.	3843021550	[1]	CIR-CLIP EXTERNAL	W/O CREEP 0.0110(lbs); 0.005
130.	3135121673	[1]	GEAR	WITH CREEP 17-45T 1.5400(lbs); 0.700
140.	3135121690	[3]	BEARING NEEDLE	WITH CREEP 0.0440(lbs); 0.020
150.	3135121550	[2]	WASHER	WITH CREEP 0.0044(lbs); 0.002
160.	3243064810	[1]	COLLAR	WITH CREEP 0.1320(lbs); 0.060
170.	3135121590	[1]	WASHER	WITH CREEP 0.0660(lbs); 0.030
180.	3843021550	[1]	CIR-CLIP EXTERNAL	WITH CREEP 0.0110(lbs); 0.005
