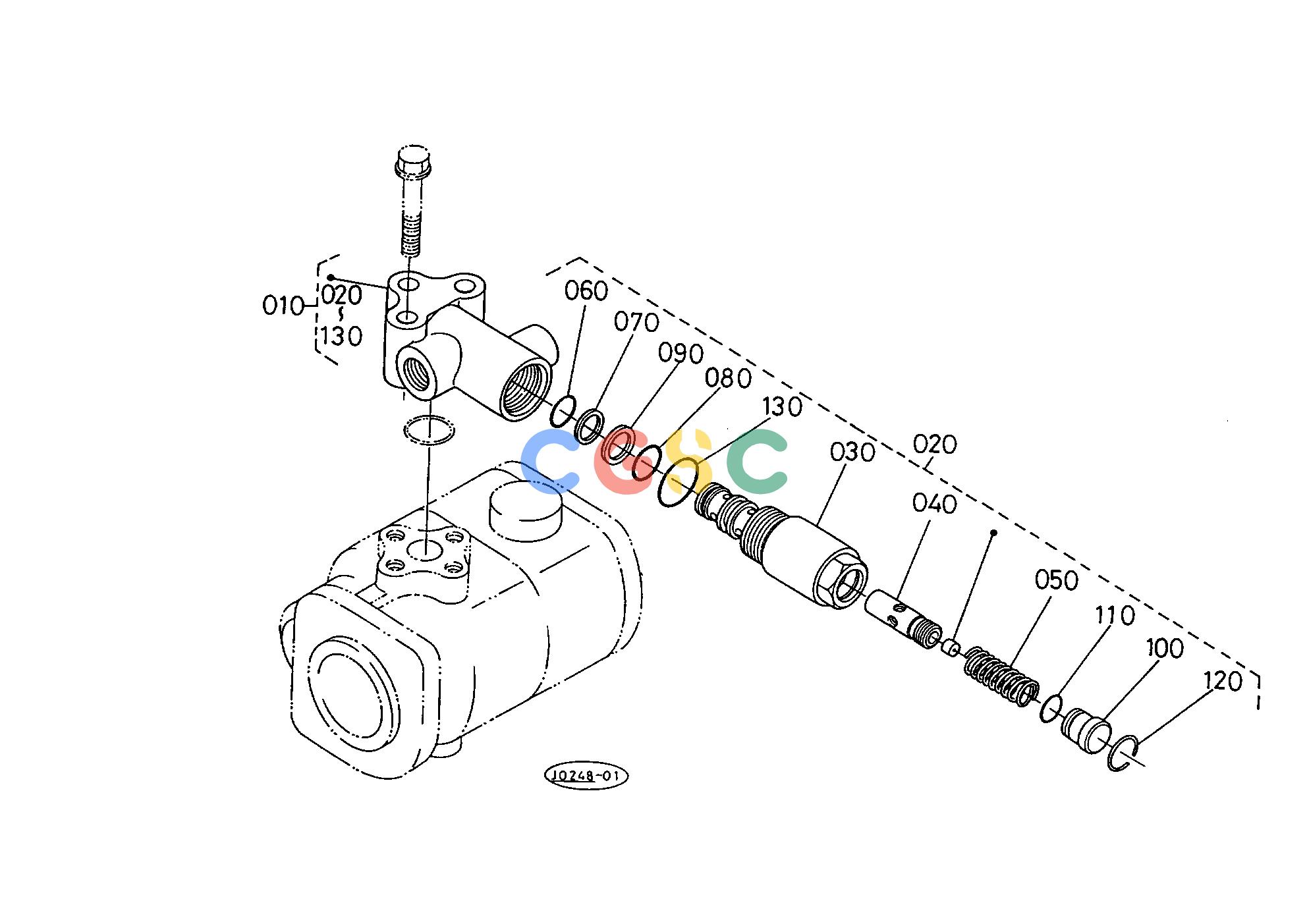

久保田零件查询T10000 PRIORITY VALVE [WITH WET CLUTCH] [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
750 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508049200
|
[1] |
ASSY VALVE PRIORITY
|
1.5180(lbs); 0.690
|
| 020. |
3508049300
|
[1] |
ASSY DIVIDER FLOW
|
0.5280(lbs); 0.240
|
| 030. |
3040149323
|
[1] |
DIVIDER
|
0.4180(lbs); 0.190
|
| 040. |
6781038340
|
[1] |
DAMPER
|
0.0022(lbs); 0.001
|
| 050. |
3040149340
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 060. |
0481105130
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
6781038360
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 080. |
0481105150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
6781038370
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 100. |
3040149350
|
[1] |
COVER
|
0.0440(lbs); 0.020
|
| 110. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
3040149360
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 130. |
0481100220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
