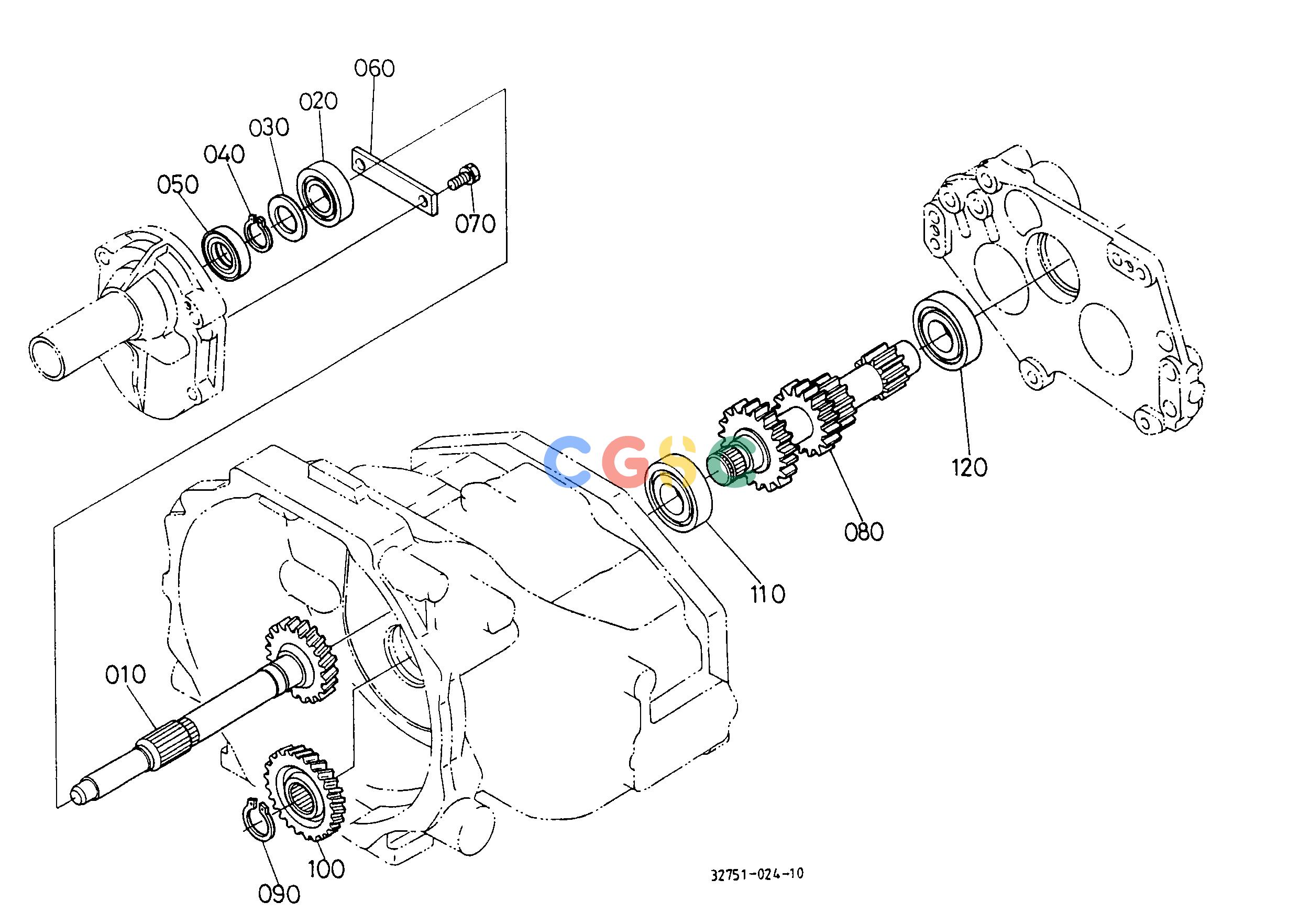

久保田零件查询T05300 MAIN SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
832 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3275121330
|
[1] |
GEAR-SHAFT
|
2.4420(lbs); 1.110
|
| 010. |
H327021330
|
[1] |
GEAR-SHAFT
|
2.4420(lbs); 1.110
|
| 020. |
3741057190
|
[1] |
BEARING,BALL
|
0.3080(lbs); 0.140
|
| 030. |
3415021560
|
[1] |
WASHER
|
0.0110(lbs); 0.005
|
| 040. |
3715021551
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0110(lbs); 0.005
|
| 050. |
0950025408
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 060. |
3275121320
|
[1] |
STOPPER
|
0.0704(lbs); 0.032
|
| 070. |
0112350818
|
[2] |
BOLT,SEMS
|
0.0264(lbs); 0.012
|
| 080. |
3275122100
|
[1] |
GEAR-SHAFT,MAIN
|
3.7400(lbs); 1.700
|
| 090. |
3715021551
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0110(lbs); 0.005
|
| 100. |
3275122130
|
[1] |
GEAR
|
1.3200(lbs); 0.600
|
| 110. |
3275122320
|
[1] |
BEARING,BALL
|
0.6270(lbs); 0.285
|
| 120. |
3589041290
|
[1] |
BEARING
|
0.5126(lbs); 0.233
|
