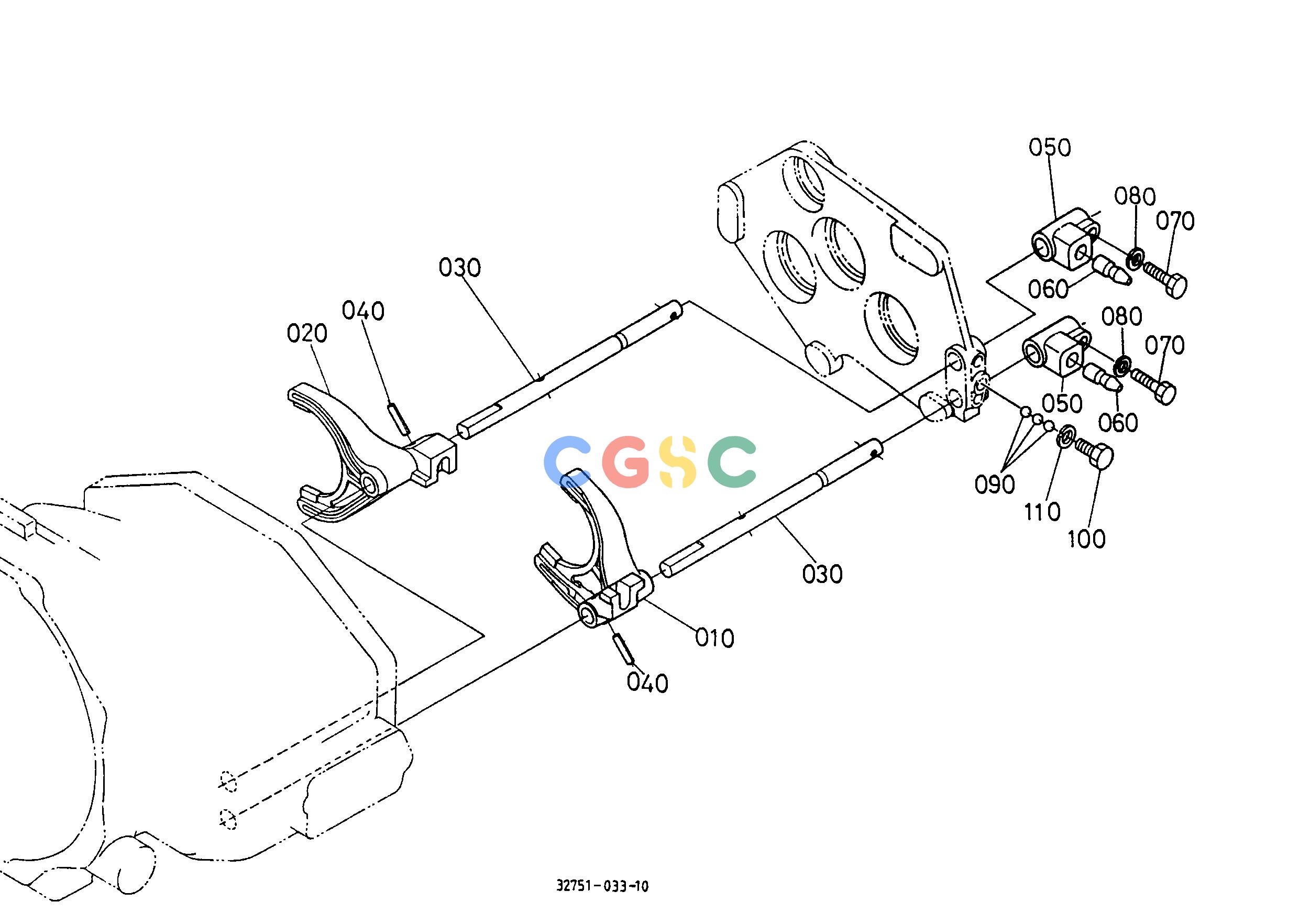

久保田零件查询T06100 MAIN GEAR SHIFT FORK MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
961 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T007364103
|
[1] |
FORK,MAIN SHIFT
|
0.4950(lbs); 0.225
|
| 020. |
T007364110
|
[1] |
FORK,MAIN SHIFT
|
0.5060(lbs); 0.230
|
| 030. |
3275164120
|
[2] |
ROD,FORK
|
0.7480(lbs); 0.340
|
| 040. |
0541100625
|
[2] |
PIN,SPRING
|
0.0088(lbs); 0.004
|
| 050. |
3407664140
|
[2] |
SHIFTER
|
0.0000(lbs); 0.000
|
| 050. |
T018064140
|
[2] |
SHIFTER
|
0.2750(lbs); 0.125
|
| 060. |
3407664170
|
[2] |
PIN,SHIFT
|
0.0440(lbs); 0.020
|
| 070. |
3135123570
|
[2] |
BOLT(FORK LOCK)
|
0.0154(lbs); 0.007
|
| 080. |
0451260060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 090. |
0771501605
|
[3] |
BALL
|
0.0066(lbs); 0.003
|
| 100. |
3407024190
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 110. |
0451260100
|
[1] |
WASHER,SPRING
|
0.0044(lbs); 0.002
|
