久保田零件查询T06400 RANGE GEAR SHIFT FORK MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
671 次

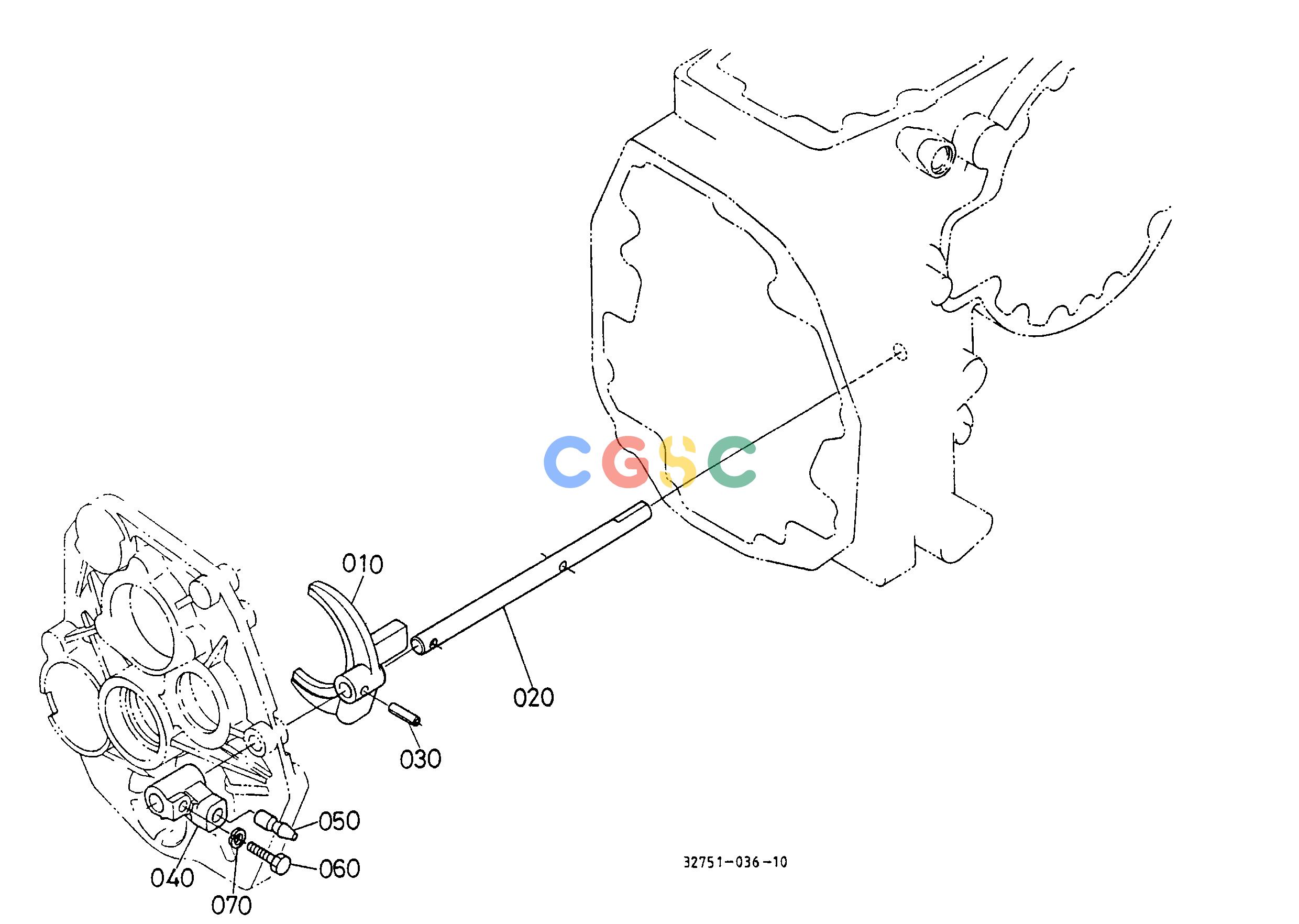

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04064400
|
[1] |
FORK,RANGE SHIFT
|
0.8580(lbs); 0.390
|
| 020. |
3275164410
|
[1] |
ROD,FORK
|
0.6600(lbs); 0.300
|
| 030. |
0541100625
|
[1] |
PIN,SPRING
|
0.0088(lbs); 0.004
|
| 040. |
3407664420
|
[1] |
SHIFTER
|
0.3080(lbs); 0.140
|
| 050. |
3407664170
|
[1] |
PIN,SHIFT
|
0.0440(lbs); 0.020
|
| 060. |
3135123570
|
[1] |
BOLT(FORK LOCK)
|
0.0154(lbs); 0.007
|
| 070. |
0451250060
|
[1] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
