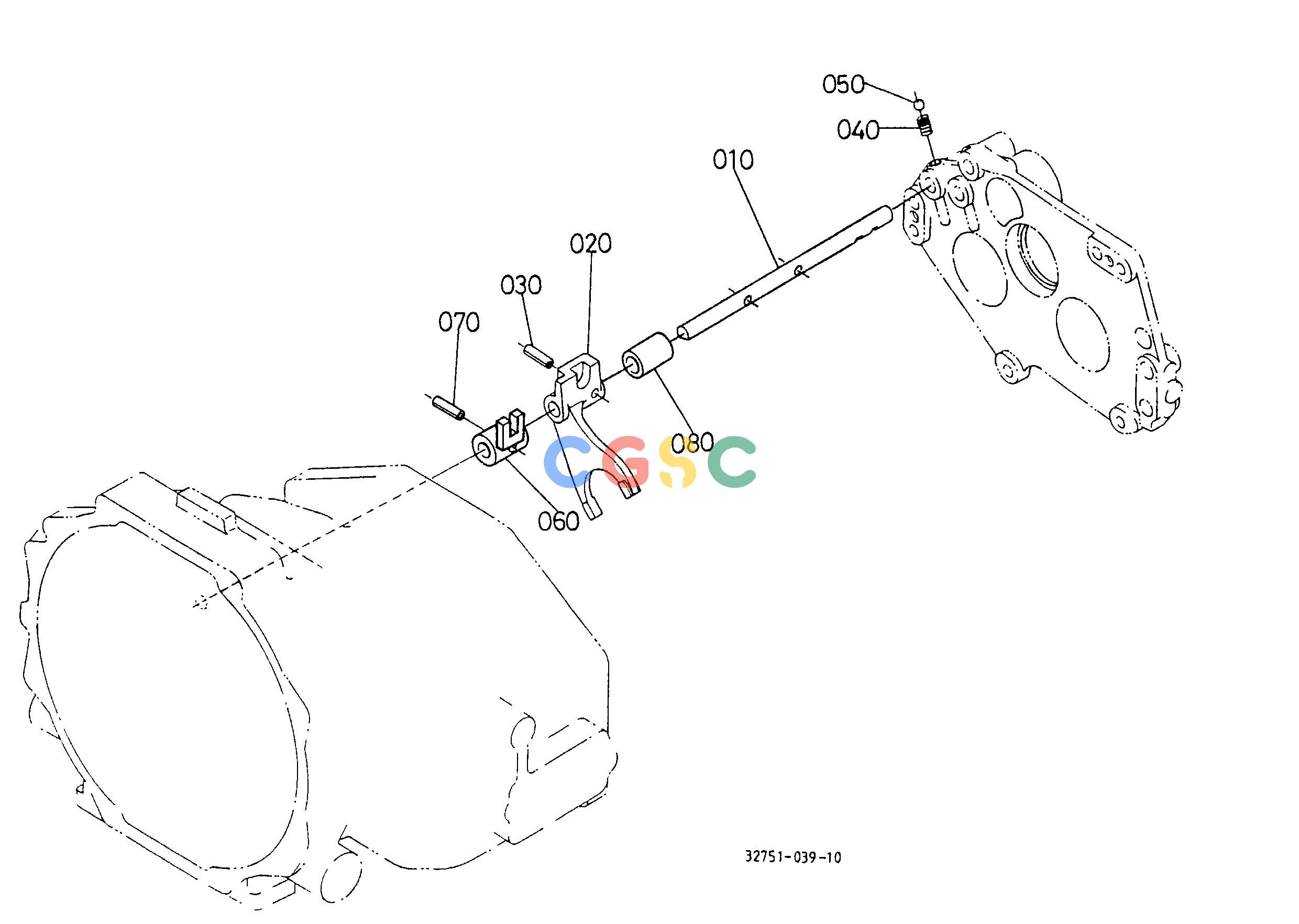

久保田零件查询T06600 PTO GEAR SHIFT FORK MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3275124810
|
[1] |
ROD,PTO FORK
|
0.4400(lbs); 0.200
|
| 020. |
3407024710
|
[1] |
FORK,SHIFT(PTO)
|
0.5390(lbs); 0.245
|
| 030. |
0541100525
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 040. |
6223118530
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
3275124900
|
[1] |
SHIFTER,PTO
|
0.2200(lbs); 0.100
|
| 070. |
0541100525
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 080. |
3275124920
|
[1] |
COLLAR
|
0.1474(lbs); 0.067
|
