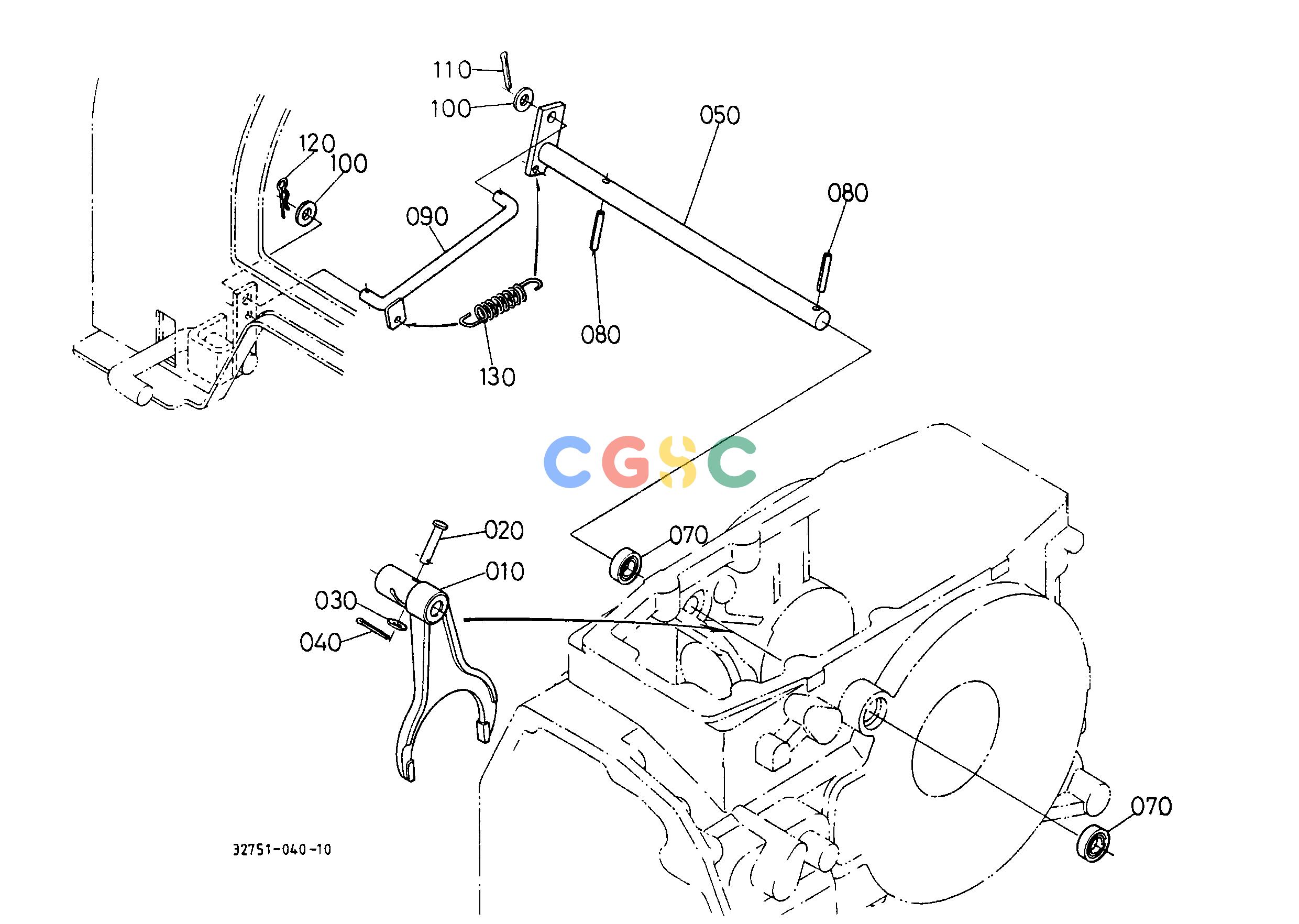

久保田零件查询T06900 DEFFERENTIAL LOCK SHIFT FORK MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135126630
|
[1] |
FORK,DIFF.LOCK SHIFT
|
1.0230(lbs); 0.465
|
| 010. |
3135126632
|
[1] |
FORK,SHIFT(DIFF.LOCK)
|
1.0230(lbs); 0.465
|
| 020. |
3135126620
|
[1] |
PIN,JOINT
|
0.0176(lbs); 0.008
|
| 030. |
0401360060
|
[1] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 040. |
0551150212
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 050. |
3407028402
|
[1] |
SHAFT(FORK)
|
1.1990(lbs); 0.545
|
| 070. |
0950016287
|
[2] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 080. |
0541100635
|
[2] |
PIN,SPRING
|
0.0110(lbs); 0.005
|
| 090. |
T007028414
|
[1] |
ROD(DIFF.LOCK)
|
0.1760(lbs); 0.080
|
| 100. |
0401250080
|
[2] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
0551150218
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 120. |
0551550800
|
[1] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 130. |
3715015840
|
[1] |
SPRING
|
0.1320(lbs); 0.060
|
