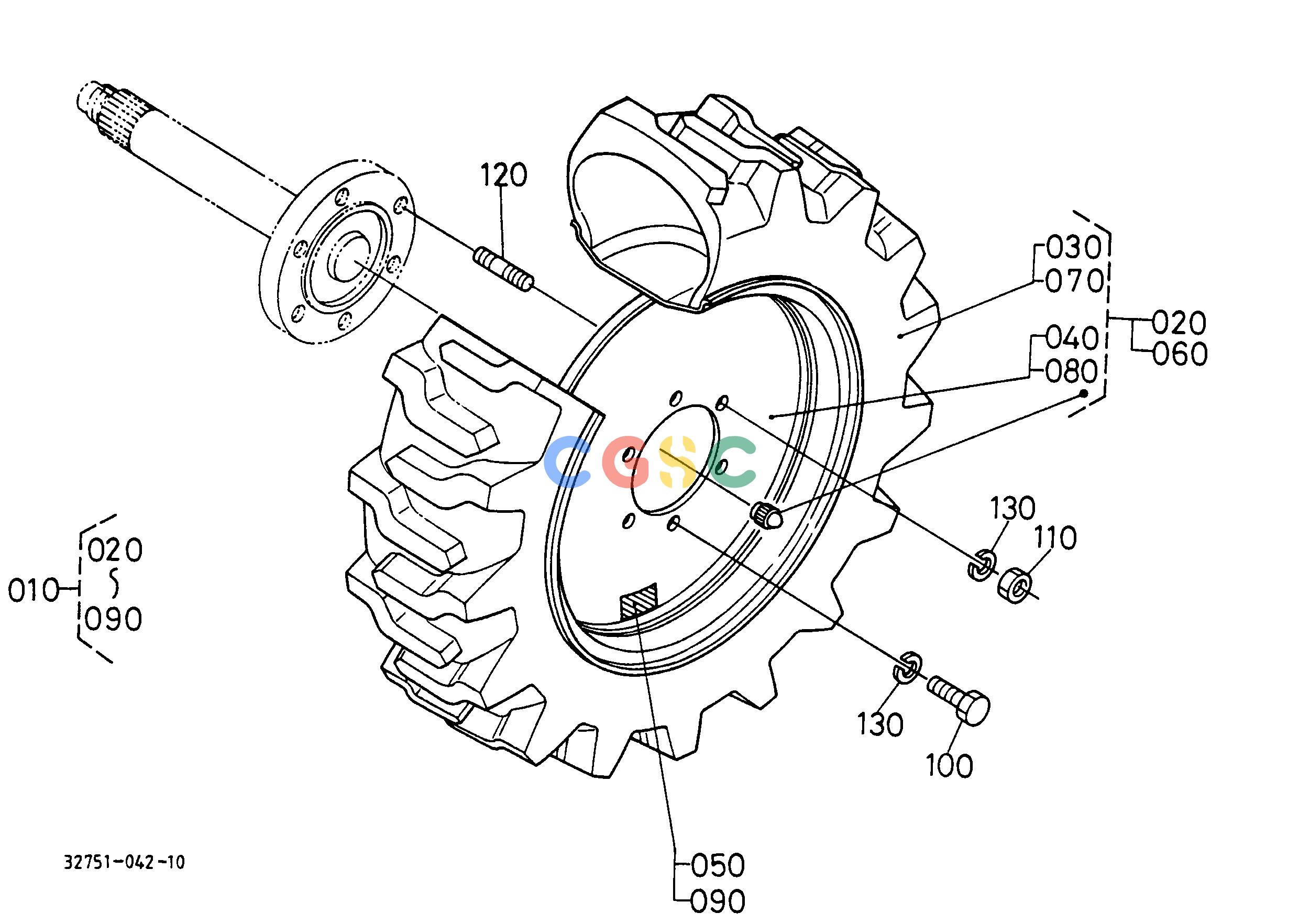

久保田零件查询T07100 REAR WHEEL (15-19.5) REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
402 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3275150800
|
[1] |
ASSY REAR WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
3275150810
|
[1] |
ASSY TIRE,RH
|
0.0000(lbs); 0.000
|
| 030. |
3275150830
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
3275150840
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 050. |
3275150850
|
[1] |
LABEL,TIRE RH
|
0.0000(lbs); 0.000
|
| 060. |
3275150820
|
[1] |
ASSY TIRE,LH
|
0.0000(lbs); 0.000
|
| 070. |
3275150830
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 080. |
3275150840
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 090. |
3275150860
|
[1] |
LABEL,TIRE LH
|
0.0000(lbs); 0.000
|
| 100. |
0107351630
|
[8] |
BOLT
|
0.1738(lbs); 0.079
|
| 110. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 120. |
0151751632
|
[4] |
BOLT,STUD
|
0.1672(lbs); 0.076
|
| 130. |
0451260160
|
[12] |
WASHER,SPRING
|
0.0220(lbs); 0.010
|
