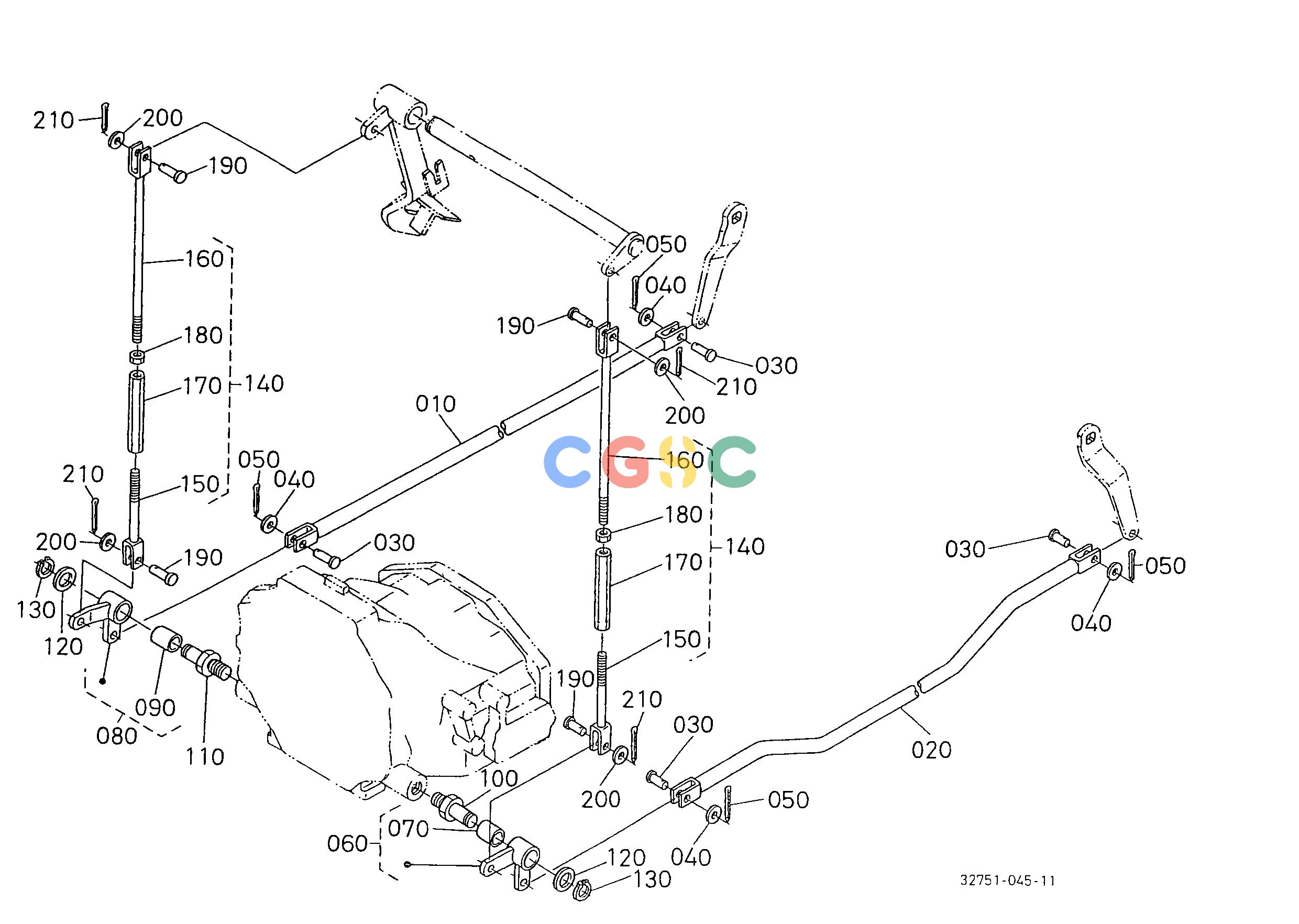

久保田零件查询T07400 BRAKE ROD BRAKEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
468 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407044640
|
[1] |
ROD(RH BRAKE)
|
2.8600(lbs); 1.300
|
| 020. |
3407644630
|
[1] |
ROD(LH BRAKE)
|
5.2800(lbs); 2.400
|
| 030. |
0512251028
|
[4] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 040. |
0401350100
|
[4] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 050. |
0551150318
|
[4] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 060. |
T007044810
|
[1] |
ASSY LEVER,BRAKE LH
|
0.4972(lbs); 0.226
|
| 070. |
T007044890
|
[1] |
BUSH
|
0.0616(lbs); 0.028
|
| 080. |
T007044910
|
[1] |
ASSY LEVER,BRAKE RH
|
0.4730(lbs); 0.215
|
| 090. |
T007044890
|
[1] |
BUSH
|
0.0616(lbs); 0.028
|
| 100. |
T007044870
|
[1] |
SHAFT,BRAKE LH
|
0.5060(lbs); 0.230
|
| 110. |
T007044880
|
[1] |
SHAFT,BRAKE RH
|
0.5060(lbs); 0.230
|
| 120. |
0401150200
|
[2] |
WASHER,PLAIN
|
0.0330(lbs); 0.015
|
| 130. |
0461200200
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 140. |
3407044800
|
[2] |
ROD,ASSY(BRAKE)
|
0.9350(lbs); 0.425
|
| 150. |
3407044840
|
[2] |
ROD(LOWER BRAKE)
|
0.2860(lbs); 0.130
|
| 160. |
3407044460
|
[2] |
ROD,CLUTCH BRAKE
|
0.4950(lbs); 0.225
|
| 170. |
3235028980
|
[2] |
TURNBUCKLE
|
0.1540(lbs); 0.070
|
| 180. |
0211650100
|
[2] |
HEX.NUT
|
0.0088(lbs); 0.004
|
| 190. |
0512251028
|
[4] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 200. |
0401350100
|
[4] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 210. |
0551150318
|
[4] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
