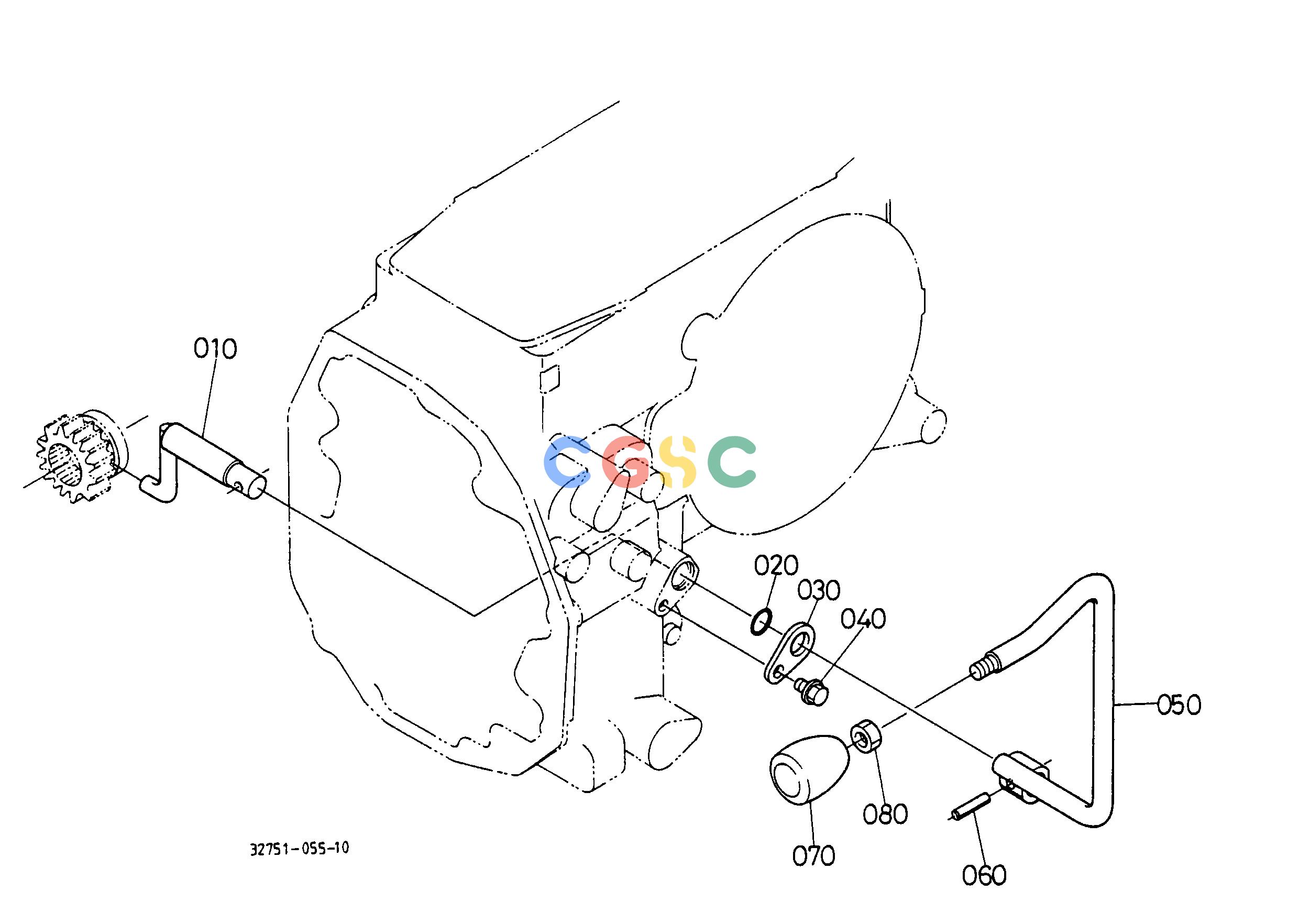

久保田零件查询T08200 FRONT WHEEL DRIVE LEVER FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
909 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407015180
|
[1] |
LEVER(4WD SHIFT)
|
0.5940(lbs); 0.270
|
| 020. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 030. |
3407024350
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 040. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
3275115470
|
[1] |
LEVER,4WD CHANGE
|
1.3090(lbs); 0.595
|
| 060. |
0541100630
|
[1] |
PIN,SPRING
|
0.0088(lbs); 0.004
|
| 070. |
TA04015480
|
[1] |
GRIP,LEVER
|
0.1166(lbs); 0.053
|
| 080. |
0211650100
|
[1] |
HEX.NUT
|
0.0088(lbs); 0.004
|
