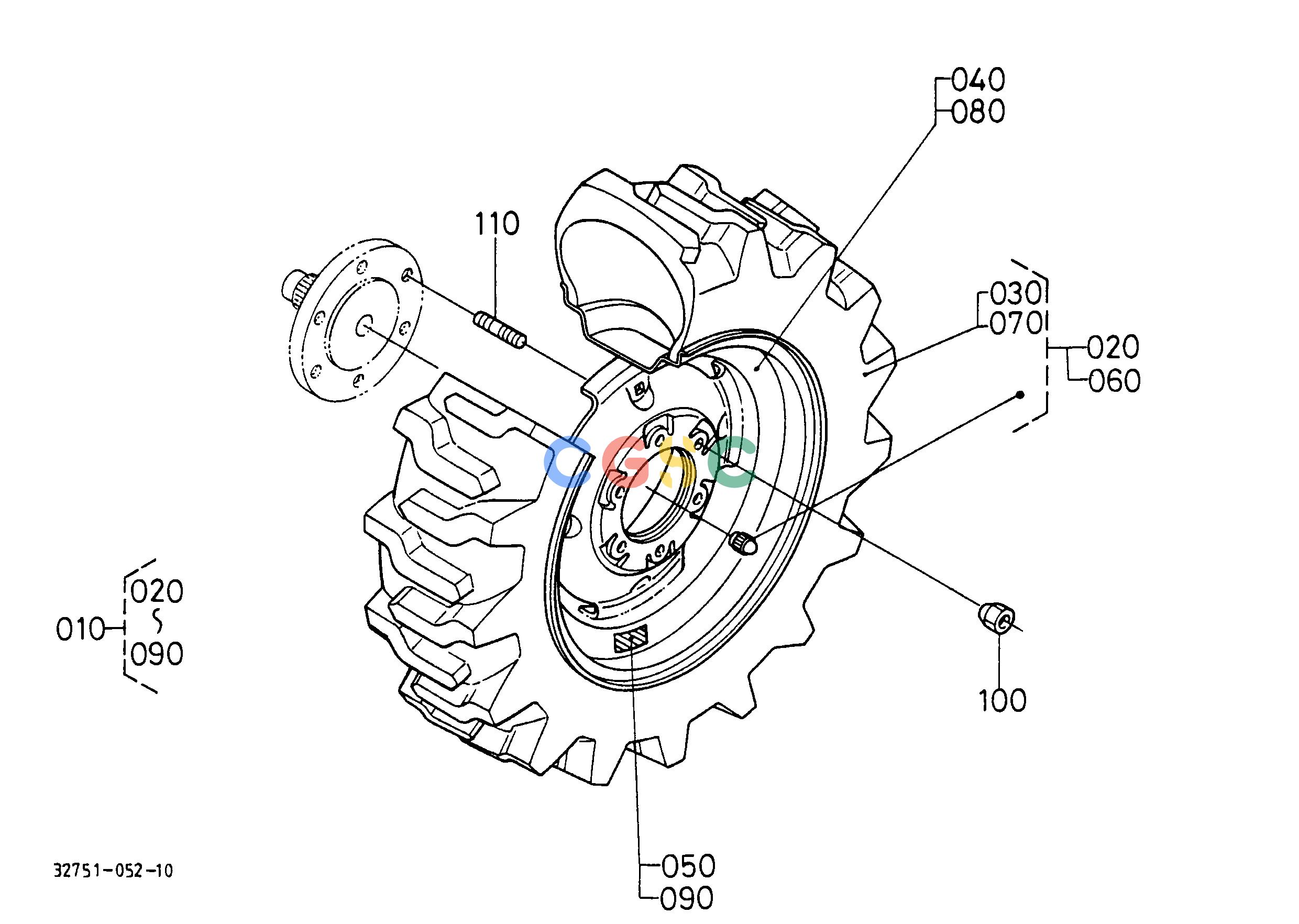

久保田零件查询T08300 FRONT WHEEL (27X10.5-15) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3275150500
|
[1] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
3275150510
|
[1] |
ASSY TIRE,RH
|
0.0000(lbs); 0.000
|
| 030. |
3275150530
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
3275150540
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 050. |
3275150550
|
[1] |
LABEL,TIRE RH
|
0.0000(lbs); 0.000
|
| 060. |
3275150520
|
[1] |
ASSY TIRE,LH
|
0.0000(lbs); 0.000
|
| 070. |
3275150530
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 080. |
3275150540
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 090. |
3275150560
|
[1] |
LABEL,TIRE LH
|
0.0000(lbs); 0.000
|
| 100. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 110. |
0151751428
|
[12] |
STUD
|
0.1100(lbs); 0.050
|
